The Main Controls tab controls the
(see Figure 3).
This tab allows the user to select general options available for
the ADF5904, including power up/down control and register
readback.
ADF5904 device settings

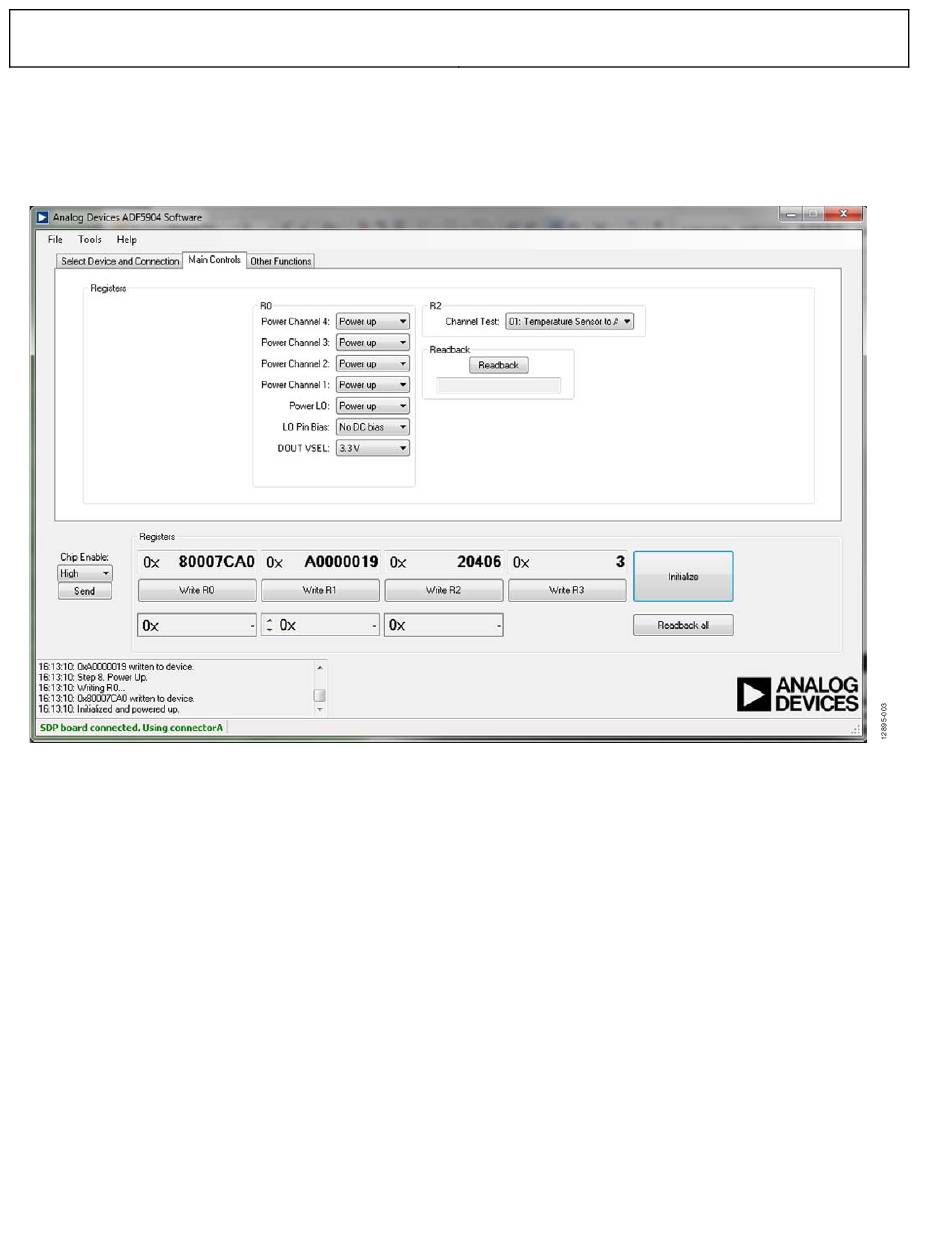

Figure 3. Software Front Panel Display—Main Controls
Rev. 0 | Page 6 of 14
EV-ADF5904SD2Z User Guide
On initial power-up of the device, click the Initialize button
to perform the initialization sequence as described in the
ADF5904 data sheet.
