Chapter 3
3.3.3 Connecting To A Standalone Power Supply
1) Using the front panel connector as shown above, connect the unit to a regulated
DC power supply of 15 V, 1A.
Thorlabs offers a compact, multi-way power supply unit (TPS008), allowing up to
eight Driver T-Cubes to be powered from a single mains outlet. A single way wall plug
supply (TPS001) for powering a single Driver T-Cube is also available.
The unit must be connected only to a DC supply of 15V, 1A regulated.
Connection to a supply of a different rating may cause damage to the unit

3.4 Connect The Hardware

1) Perform the mechanical installation as detailed in Section 3.2.
2) Install the Kinesis Software - see Section 3.1.
3) Connect the stepper motor actuator to the Controller unit - see Section 3.3.1.
4) Connect the Controller unit to the power supply - see Section 3.3.3.
5) Connect the PSU to the main supply and switch 'ON'.
6) Connect the Controller unit to your PC.
The USB cable length should be no more than 3 metres unless a powered
TM
7) Windows
drivers for the new hardware.
14

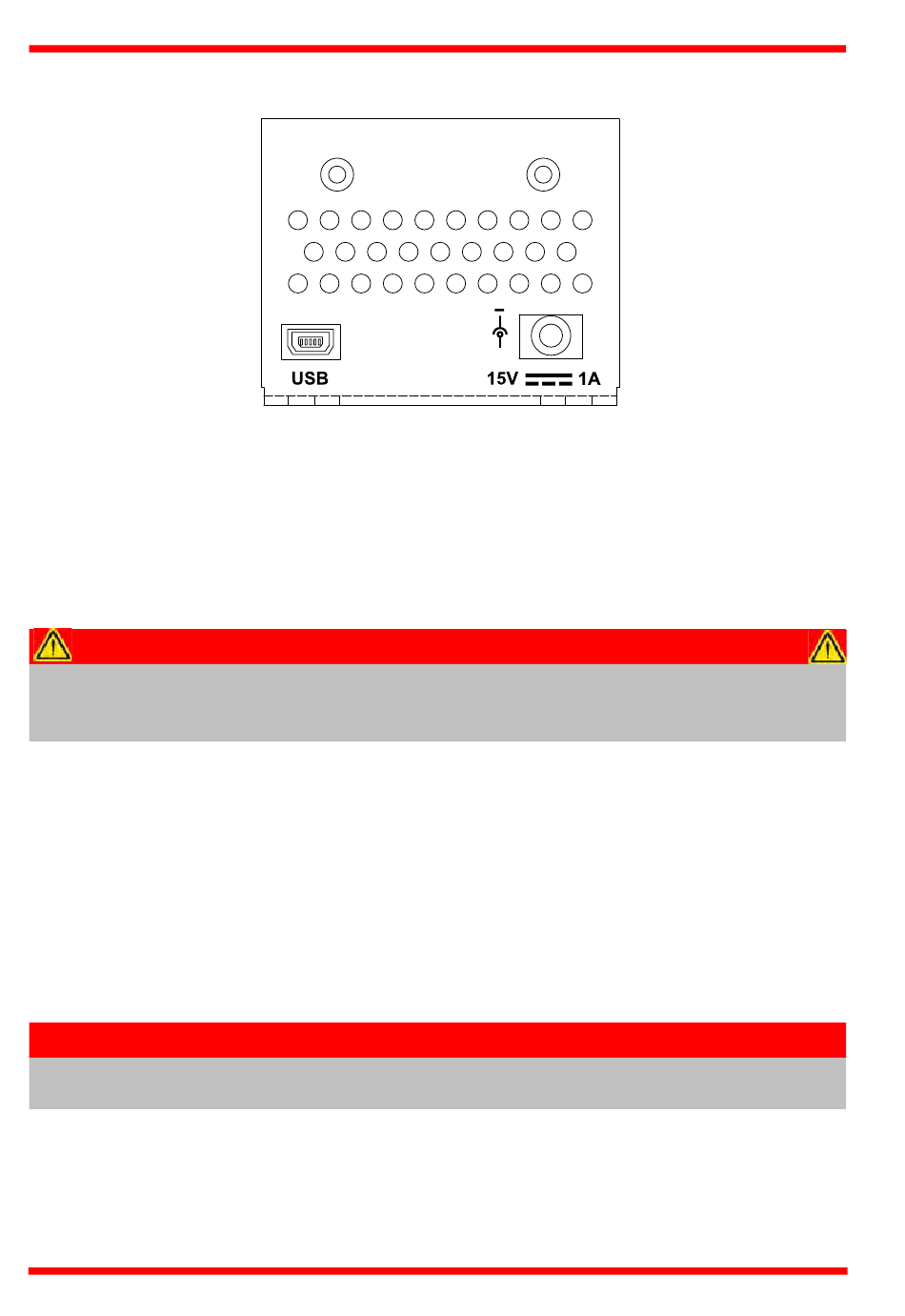

Fig. 3.3 Front Panel Power Supply Connector
and could result in injury to the operator.
USB hub is being used.
should detect the new hardware. Wait while Windows
TST101
+
Warning
Note
TM
installs the
HA0333T Rev BK Sept 2015
