Chapter 6

Chapter 6 Software Reference

6.1 Introduction

This chapter gives an explanation of the parameters and settings accessed from the
Kinesis software running on a PC. For information on the methods and properties
which can be called via a programming interface, see Appendix D

6.2 GUI Panel

The following screen shot shows the graphical user interface (GUI) displayed when
accessing the Stepper Driver T-Cube using the Kinesis software.
The serial number of the Stepper Driver T-Cube associated with the GUI
panel is displayed in the top right hand corner. This information should
always be provided when requesting customer support.
Position window - shows the position (in
millimetres or degrees) of the motor. The motor
must be 'Homed' before the display will show a
meaningful value, (i.e. the displayed position is
relative to a physical datum, the limit switch).
Move - Opens the settings window, so that position data and velocity
parameters can be entered - see Section 5.4. Moves are performed using the current
velocity parameters which can be changed in the same panel. The present settings
are displayed below the window.
26

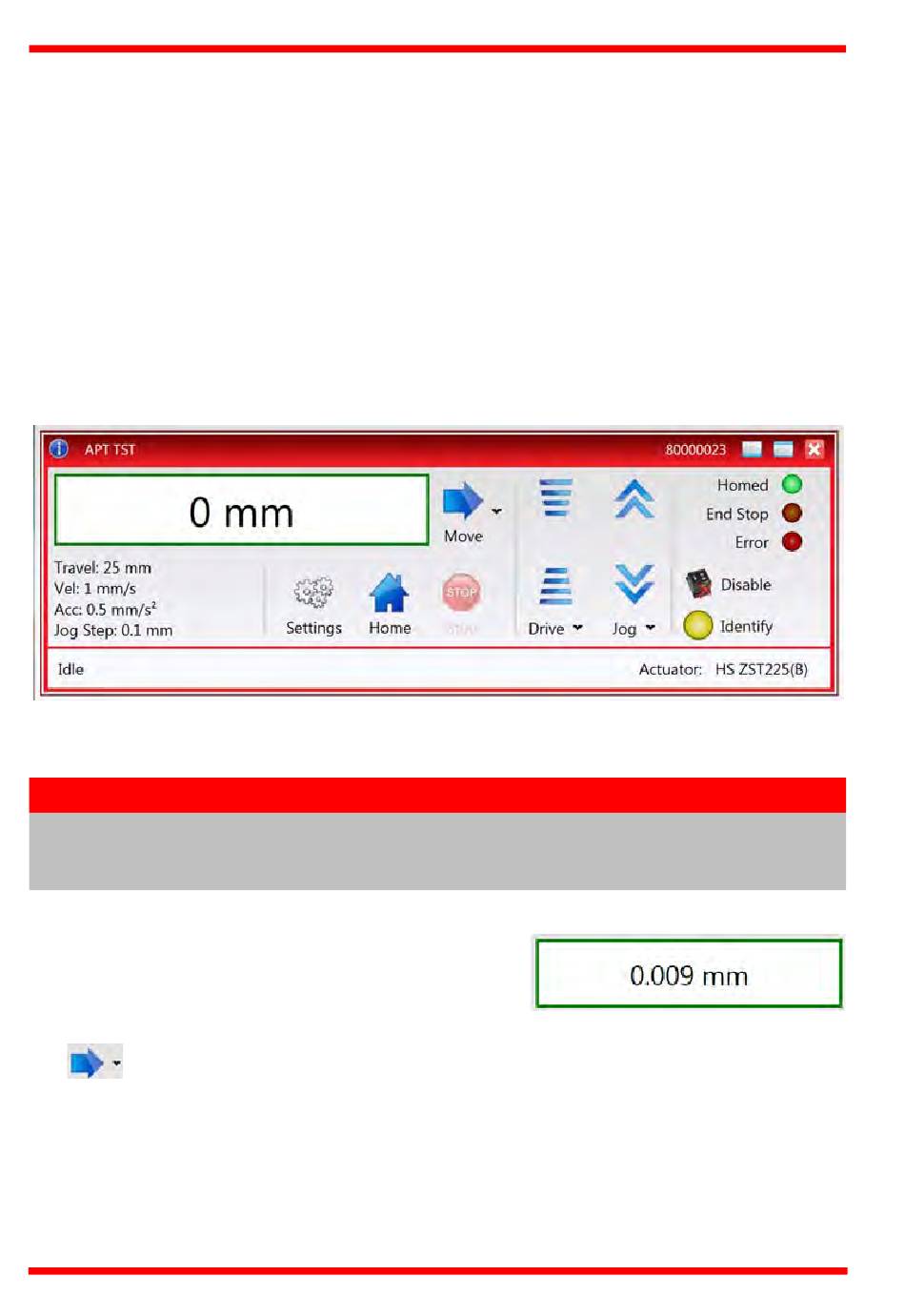

Fig. 6.1 Stepper Driver T-Cube Software GUI
Note
.
HA0333T Rev BK Sept 2015
