Table 1-3: Side Panel I/O Connectors; Figure 1-4: Side Panel I/O Connectors - ADLINK Technology DLAP-401-Xavier User Manual

Leading EDGE COMPUTING
Side Panel
Item Name
H CAN bus
USB 3.0 OTG Type-
I
C
J HDMI port
GbE connector
K
(LAN 1)
GbE connector
L
(LAN 2)
M DC connector 24V
6
H I

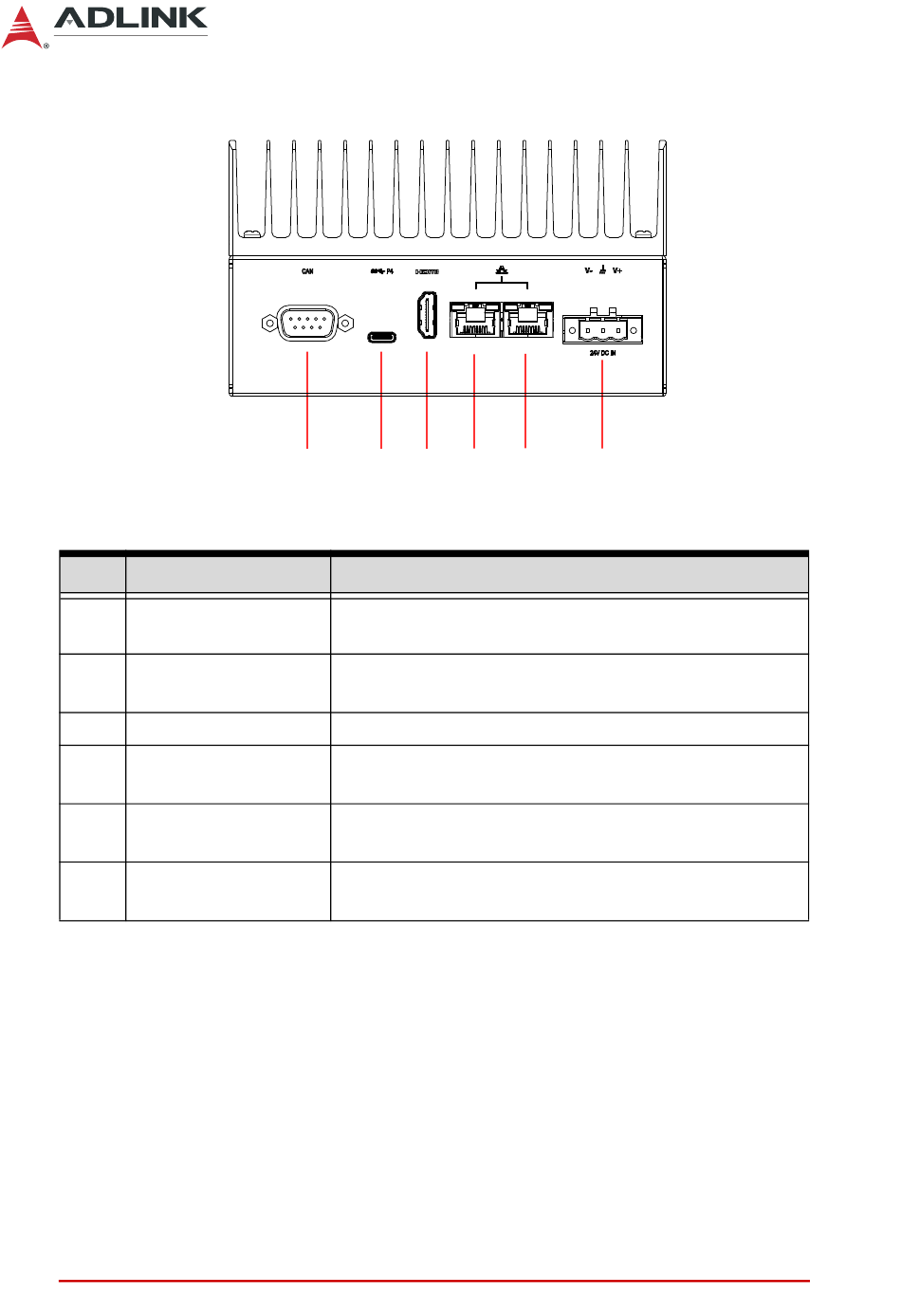

Figure 1-4: Side Panel I/O Connectors

Description
CAN 2.0B (only supported with Jetson Xavier NX,
backward compatible with 2.0A)
See Section 1.5.6 USB 3.0 OTG Connector.
HDMI 2.0
GbE from Intel® I210
GbE from NVIDIA® Jetson™ module
24V DC screw-type connector. See Section 1.5.3
24 Volt DC Connector.

Table 1-3: Side Panel I/O Connectors

J K L M
Introduction
