2.3 Installing an M.2 SSD Module

Use the following steps to install an M.2 SSD module.
1. Insert the M.2 2242 B key module into the indicated slot
at an angle.
2. Press down on the M.2 module until it is seated, then
secure it with one M2.5-P-head-L5 screw (not provided).
3. Replace the bottom cover of the chassis.
Take care not to remove or damage any wires while installing
the module.
Veillez à ne pas retirer ou endommager les fils lors de l'installa-
CAUTION:
tion du module.
Getting Started

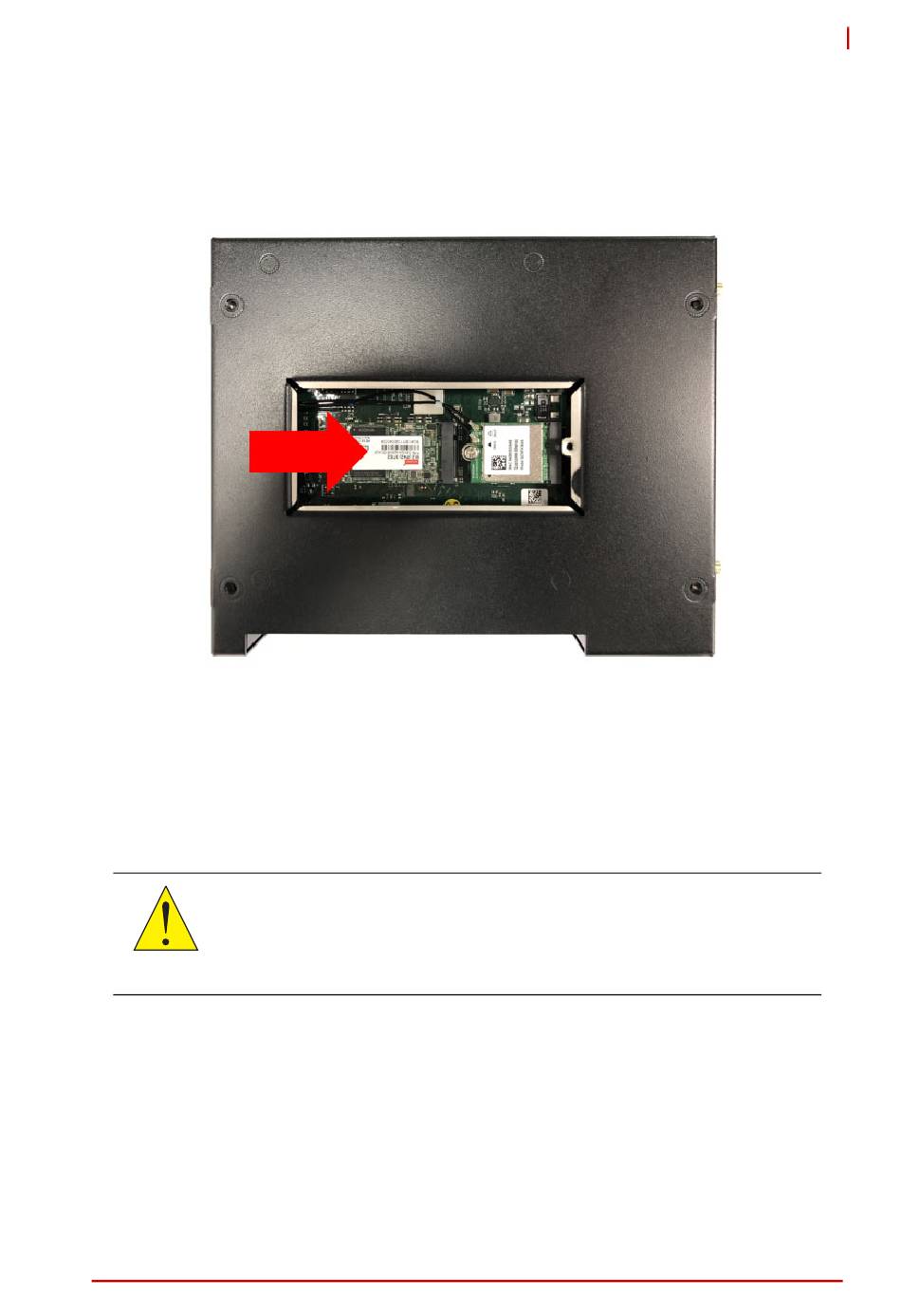

Figure 2-1: M.2 Slot

DLAP-401-Xavier
15
