SCP-AMU912-010-06H July 19, 2004
A
DMINISTRATION
To use the craft interface to provision the AMU-912 or other cards installed in the shelf, you must connect a VT-100
compatible terminal or a personal computer with VT-100 terminal emulation software to the RS-232 interface of the
AMU-912 front panel or shelf backplane. The VT-100 interface allows "real time" updating of information displayed
on the screen. Through the craft interface screens, system administration functions such as alarm checking and
clearing, configuration changes, performance monitoring, and testing can be performed.
F P C P T C
RONT ANEL RAFT ORT TO ERMINAL ONNECTIONS
Connections between the RS-232 craft port of the AMU-912 and the craft terminal are shown in Figure 6.

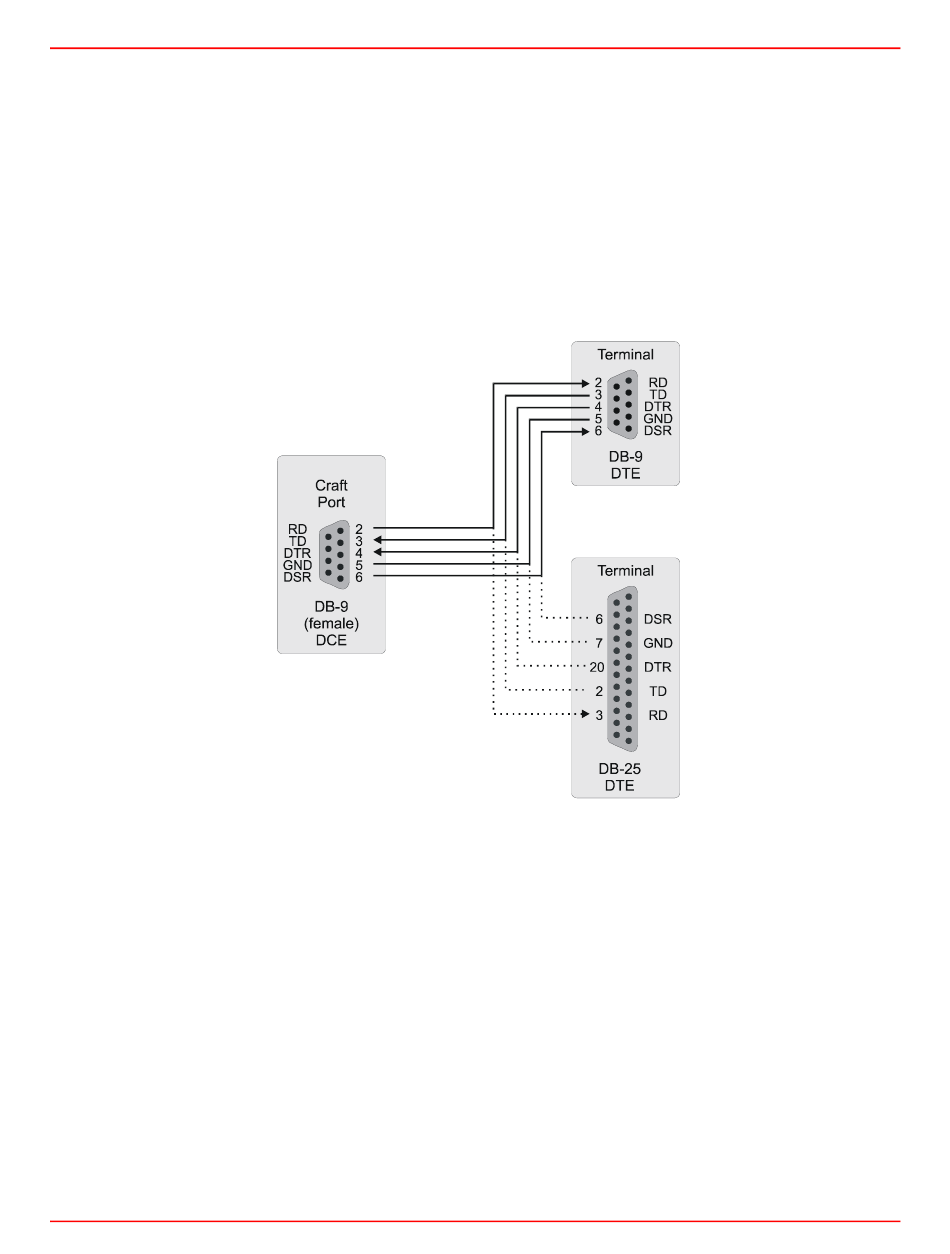

Figure 6. Front Panel Craft Port to Terminal Connections
