SCP-AMU912-010-06H
July 19, 2004
D
R
OWNLOAD
ETRY
If a download failure occurs, the AMU-912 may remain in boot mode. The AMU-912 indicates this by flashing all
front panel LEDs with the exception of the PWR LED. An AMU-912 in boot mode is unable to process system
alarms.

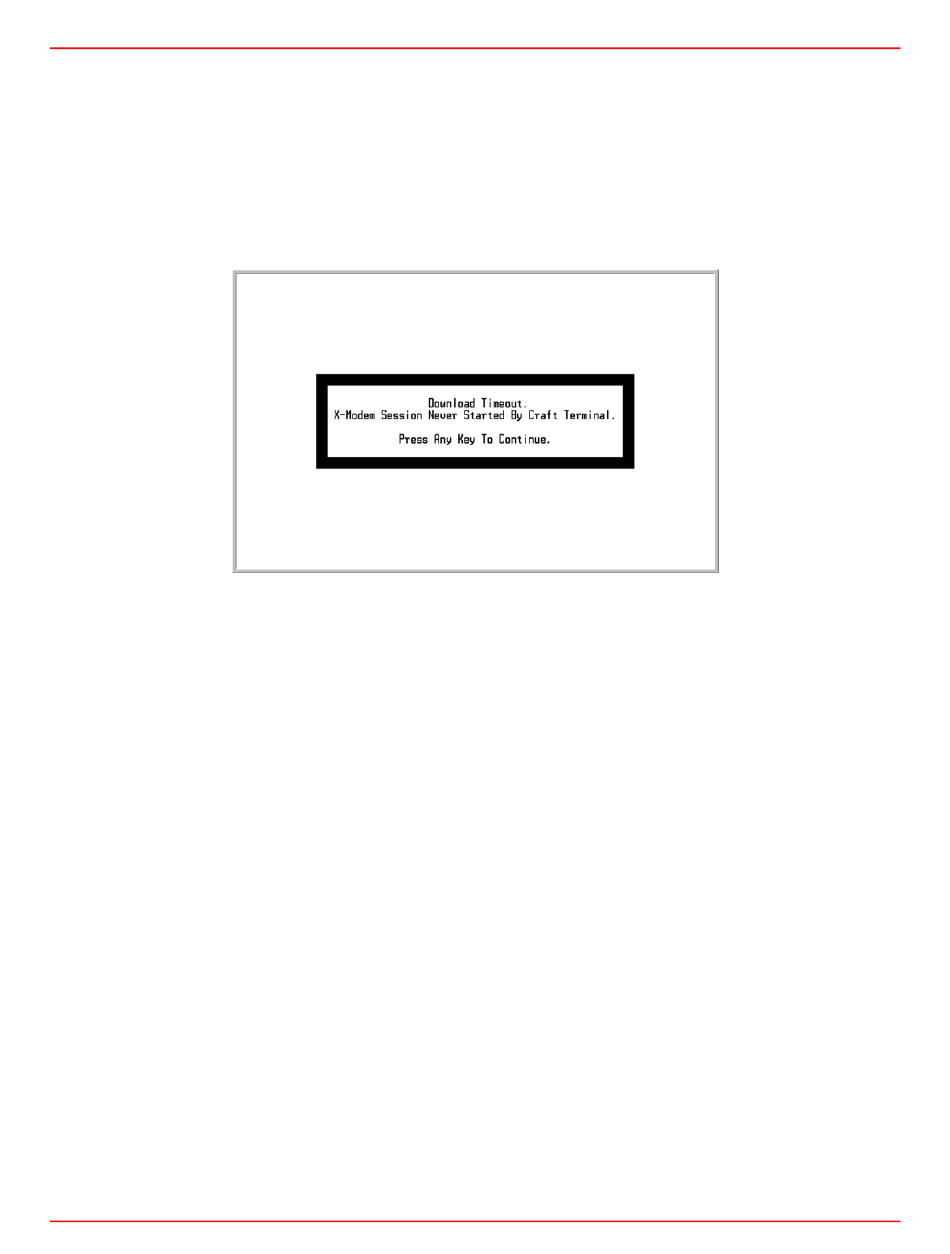

If you are unable to prepare for the download in a timely fashion (two minutes or less), an error message displays
indicating a time-out has occurred.
If the AMU-912 fails to download, you can continue to retry until a successful download is achieved. If a failure
occurs on a AMU-912 and no response is received to subsequent download attempts, remove and then reinsert the
AMU-912 into the shelf and retry the download. Refer to
Table 35 on page 108
for error messages.
106
ADC Telecommunications, Inc.
