SCP-AMU912-010-06H
July 19, 2004
B
C
P
T
C
ACKPLANE
RAFT
ORT TO
ERMINAL
ONNECTIONS
Use a null modem cable to connect to a Data Terminal Equipment (DTE) device from the backplane connector.
Figure 8
shows the wiring for the required null modem cable to a DB-9 and a DB-25 connector.

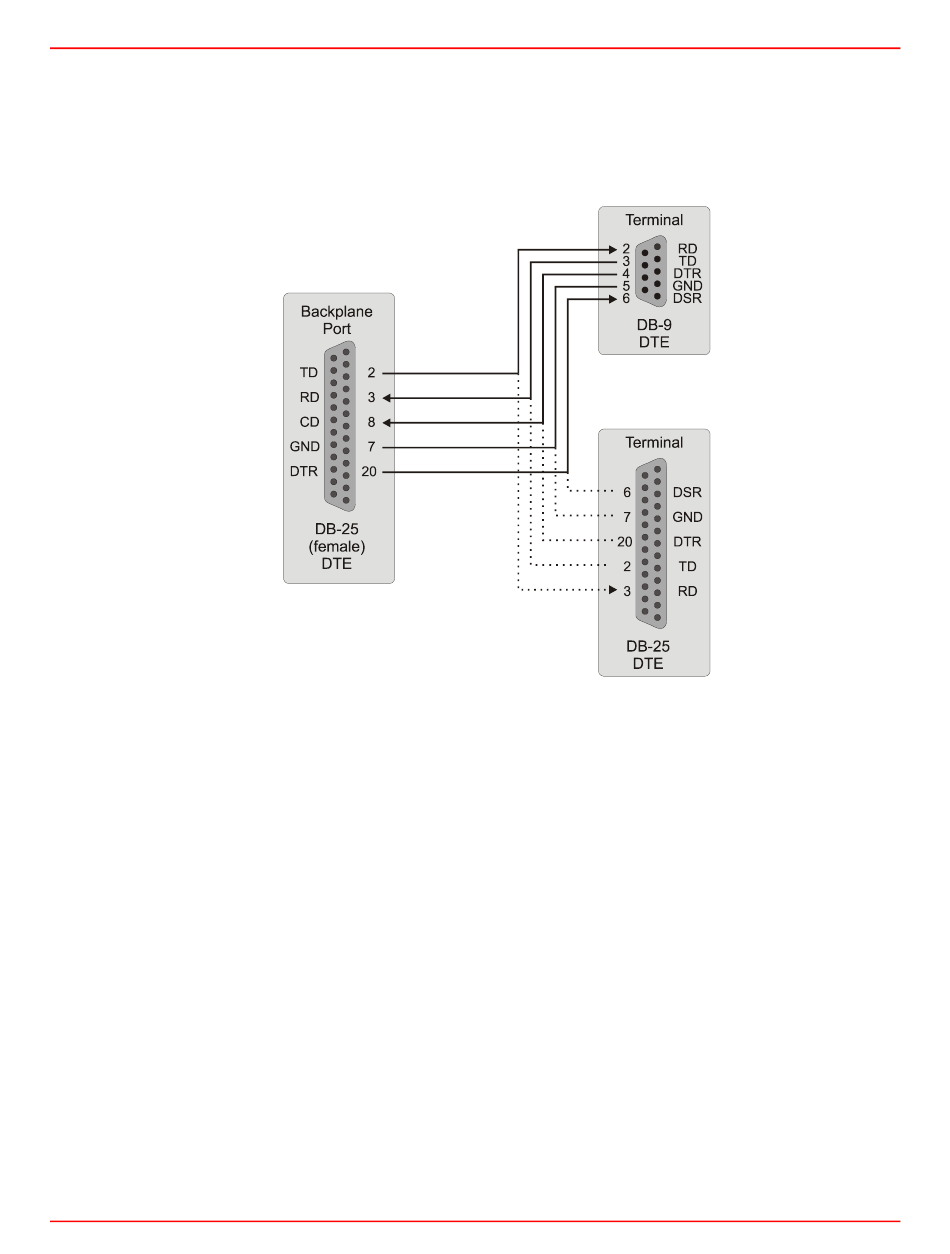

Figure 8. Backplane Craft Port to Terminal Connections Using a Null Modem Cable
16
ADC Telecommunications, Inc.
