Front Panel Craft Port To Modem Connections; Figure 7. Front Panel Craft Port To Modem Connections - ADC PG-FlexPlus AMU-912 Manual

July 19, 2004 SCP-AMU912-010-06H
F P C P M C
RONT ANEL RAFT ORT TO ODEM ONNECTIONS
When connecting the RS-232 port to a modem, a null modem cable should be used. Ensure that the modem's
Carrier Detect (CD) and DTR functions are enabled. This allows the modem connection to terminate properly when
the AMU-912 drops Data Set Ready (DSR) and the unit logs off after the modem drops CD. The following
connections are required to make the modem work correctly (Figure 7).

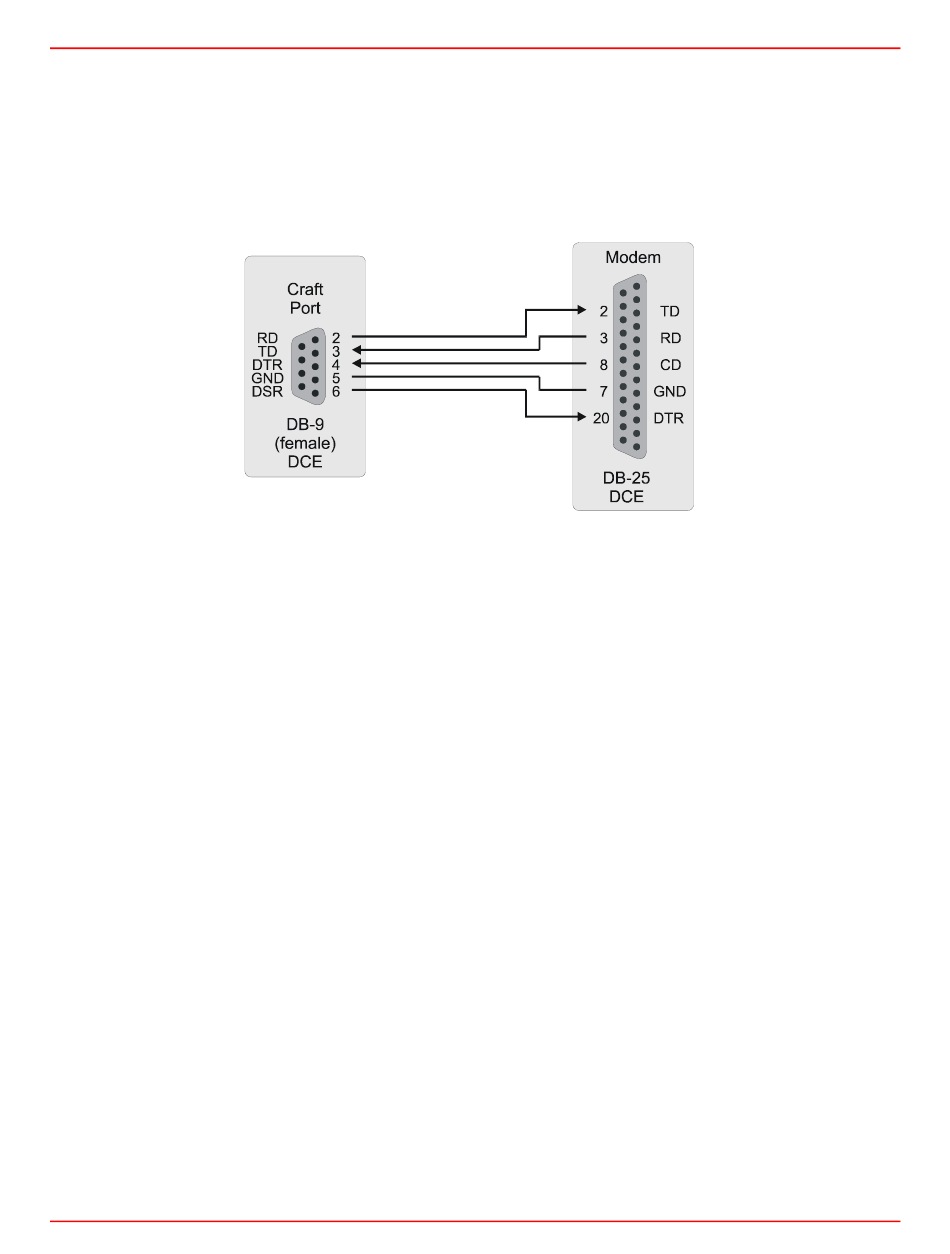

Figure 7. Front Panel Craft Port to Modem Connections
