Connecting the twinax interface to your host
computer
Using the twinax cable described in the preceding section, connect the twinax
interface to your host computer according to the figure below.

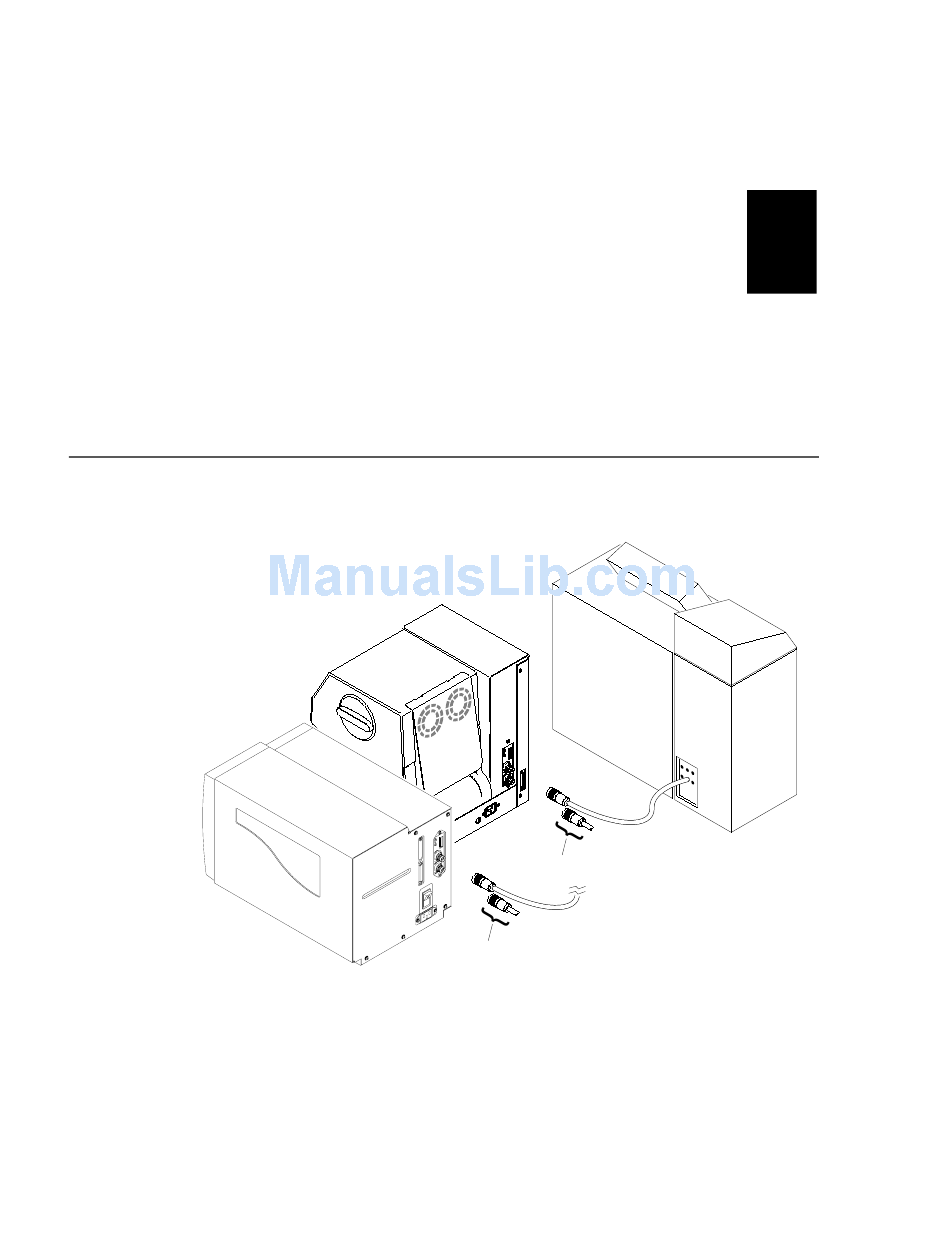

Connecting the twinax interface to your host computer

Note: The serial port on the printer rear panel remains active after the twinax interface
is installed. To ensure trouble-free operation, do not connect any computing device to
this port while you are operating the printer through the twinax interface. The other
computing device may transmit messages to the serial port that interfere with messages
sent to the printer through the twinax interface.
Twinax Interface
LIN E
ON
UL T
FA
O
I
E
ON LIN
T
FA UL
O
I
optional
O
optional
T
Host Computer
TWIN-03
