Intermec EasyCoder 3600 Instruction Sheet
Batch takeup accessory
Hide thumbs
Also See for EasyCoder 3600:
- Maintenance manual (174 pages) ,
- User manual (8 pages) ,
- Developer's manual (116 pages)
Advertisement
Quick Links
3600
Batch Takeup
Accessory
Instruction
Sheet
I n t e
r m e
c
3 6
0 0
Media guide
plate
Media access
door
Parts Provided:
• Batch Takeup Reel
• Media Guide Plate
• Media Clamp
Note: The batch takeup accessory rewinds small
batches of labels as they are printed by the 3600
printer. Space inside the printer allows the batch
takeup accessory to rewind batches of approximately
1500 inches of media (or 300 five-inch labels).
Step 1

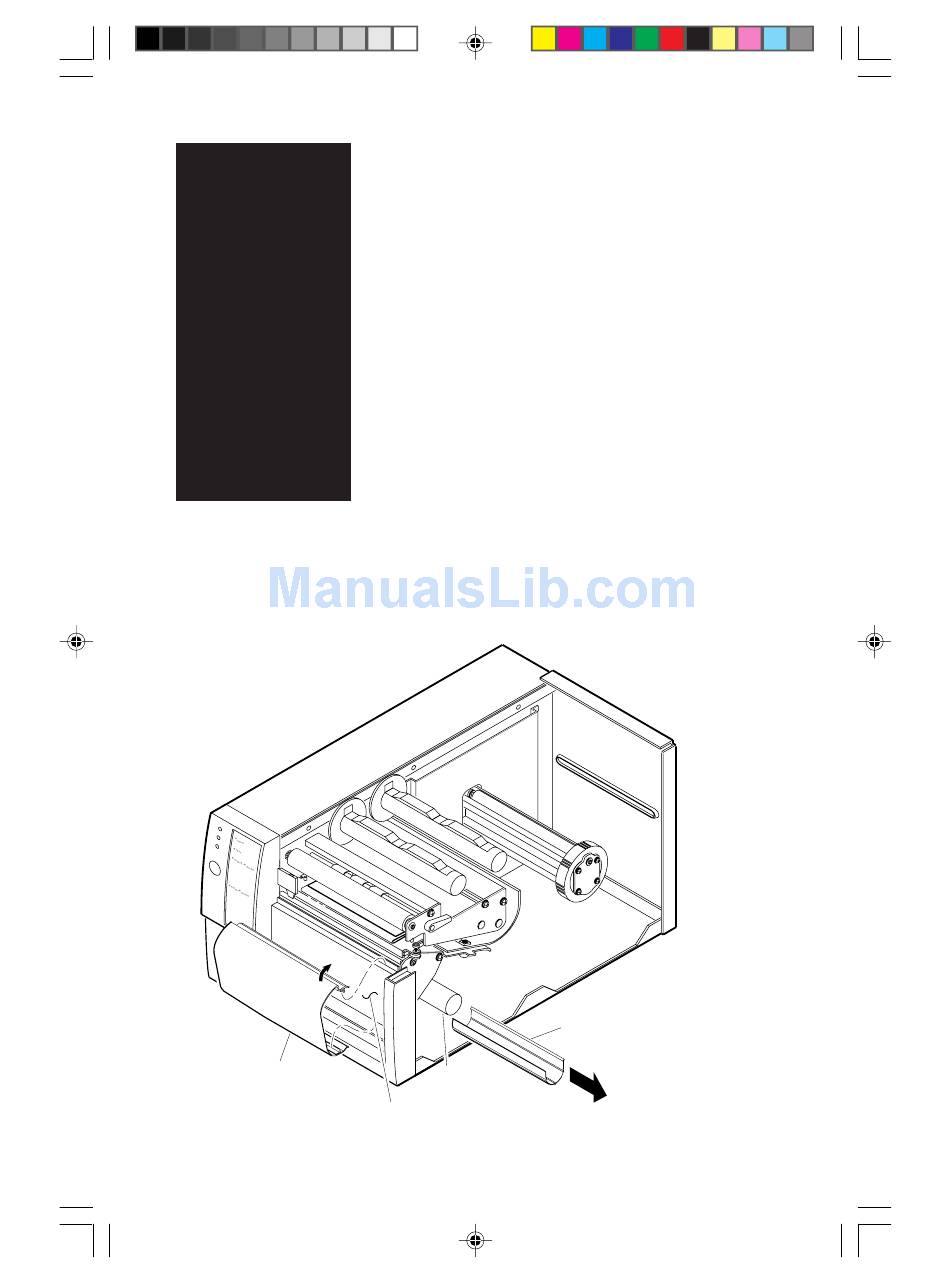

Install the Media Guide Plate onto the
Media Access Door
1. Remove the media cover.
2. Remove the rewinder clasp from the rewinder hub.
3. Install the media guide plate to the front of the
media access door.
Rewinder
hub
Rewinder
clasp
3600I.001
