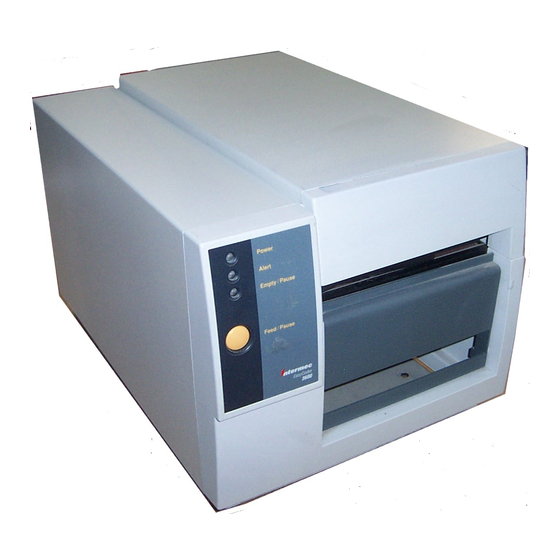

Intermec 3400 Instruction Sheet

3400
Parallel I/O
Adapter
Card
Instruction
Sheet
Optional I/O
Board Port
Retain the
two screws.
Optional
I/O Board
Port Cover
(Remove and discard.)
Use the following instructions to install a 3400
Parallel I/O Adapter Card into a 3400 printer. This
procedure must be performed only by trained service
personnel.
Parts Provided:
• Parallel I/O Adapter Card
• Ribbon cable
Tools Required:
• Phillips screwdriver
Step 1
Removing the I/O Board Port Cover
1. Switch off the printer power and remove the power
cord from the printer.
2. Remove the media cover and the electronics cover
from the printer.
3. Remove and discard the optional I/O board port
cover from the rear of the printer. Retain the
two screws.
3400-72
