Factory switch settings

Seven miniature toggle switches and one slide switch are provided on the rear
panel of the twinax interface. Three of the seven miniature toggle switches set
the twinax address and enable the twinax self-test. The slide switch terminates
the twinax cable.
The switches are numbered 1 through 7 counting from bottom to top. The
switches are easily set ON or OFF with a miniature flat-tip screwdriver
(Intermec Part No. 523298). For the switch settings to take effect, switch the
printer power off and then on. The twinax interface is shipped with the seven
switches set to the OFF position as shown in the figure below.
With the seven switches set to the OFF position (factory settings), the twinax
address is 0 (zero) and the self-test is disabled.

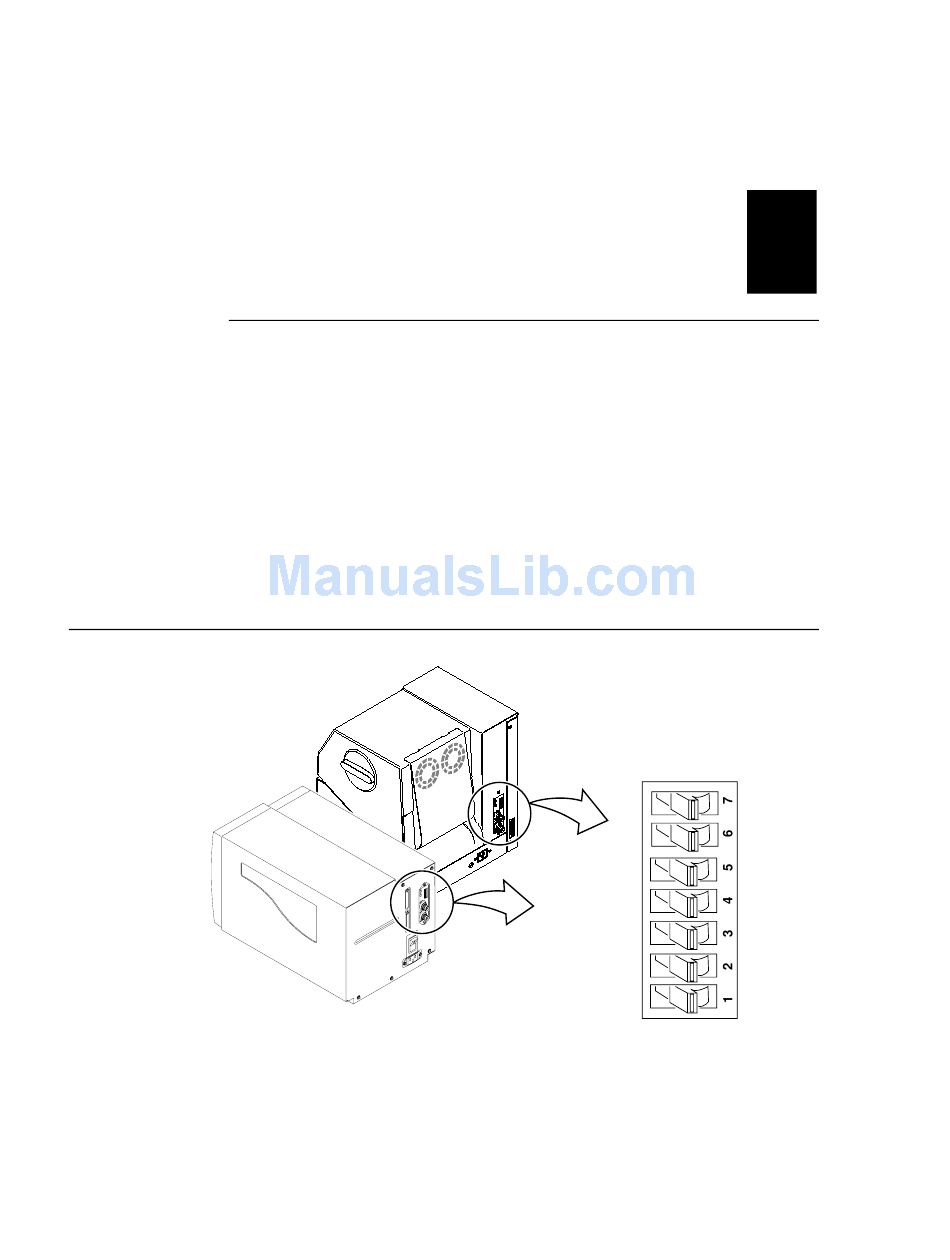

Factory setting of twinax switches
E
LIN
ON
T
FA UL
O
I
E
LIN
ON
T
FA UL
O
I
O
T
Twinax Interface
OFF
ON
TWIN-12
