Spacerails Level 9 Instruction Booklet page 3

1

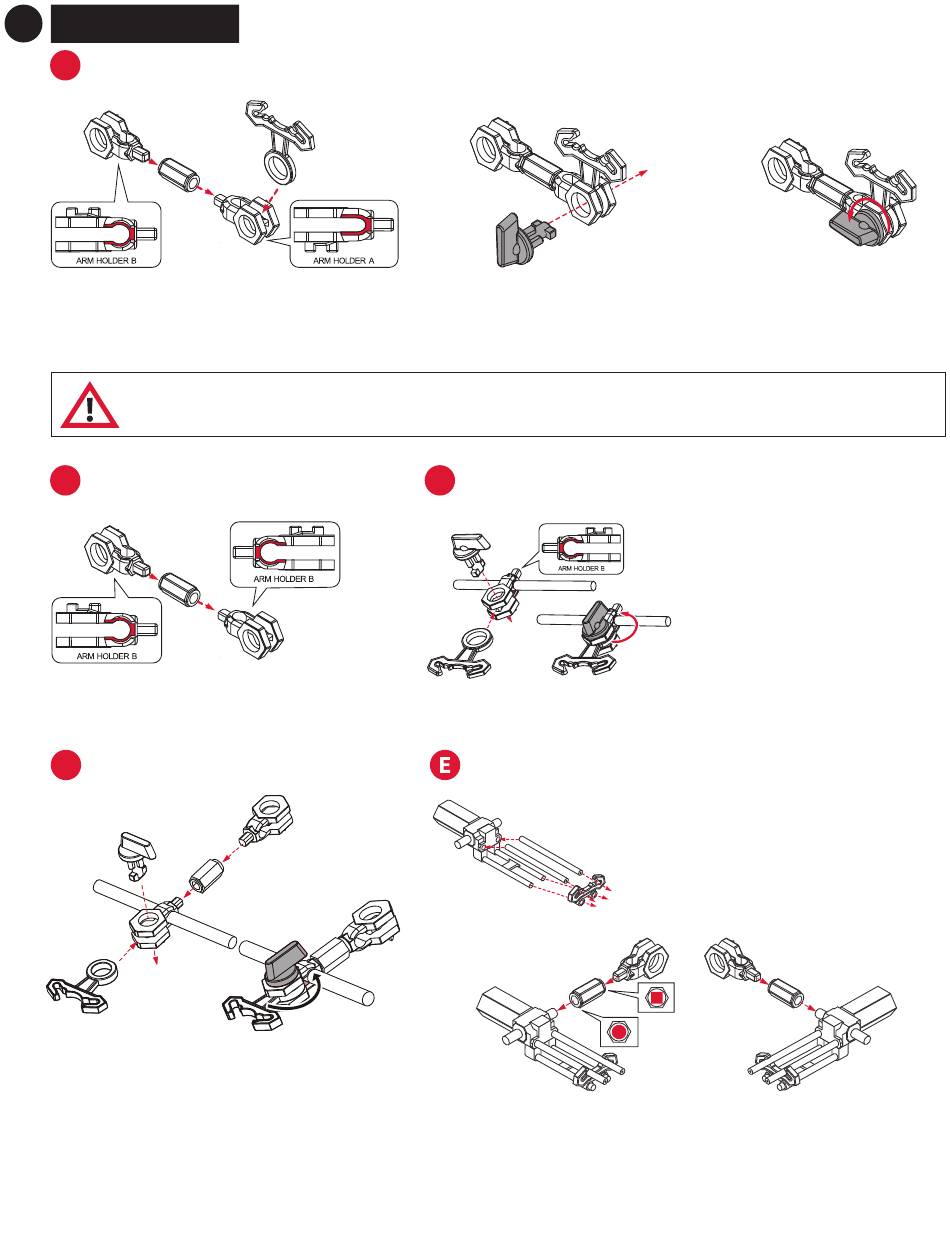

PREPARE ARMS
A
ARM A
(QTY: 107)
Step 1: Attach one Arm Holder A and one
Arm Holder B with one Arm Sheath. Insert
one Arm Clip into Arm Holder A.
To avoid damaging parts, do not move or adjust the Rail Clip while locked in the arm. To move the Rail Clip, release
Arm Lock by turning clockwise, position Rail Clip as desired, then secure Arm Lock again.
B
ARM B
(QTY: 56)
Attach one Arm Holder B on each side
of the Arm Sheath.
D
ARM D
(QTY: 3)
Attach one Arm Holder B on each side
of the Arm Sheath. When assembling
shafts F, BC, and BD, slide one
Arm Holder B on shaft and insert one
Arm Clip and add the Arm Lock.
Seaich Corporation, LLC. All rights reserved. www.seaich.com | Spacerails, LLC. www.spacerails.com
Step 2: Insert Arm Lock through
Arm Holder A and Arm Clip.
C
ARM C
(QTY: 36)
SEE-SAW ARM
(QTY: 1 LEFT & 1 RIGHT)
Attach Arm Holder B to the square receiver side of Arm Sheath
to create the arm. Attach the arm to the shaft and the shaft
to the base prior to attaching the round receiver side of the
Arm Sheath to the See-Saw Arm.
Step 3: Turn the Arm Lock
counter-clockwise to secure
the Arm Clip in place.
Slide Arm Holder B onto
shaft. Insert Arm Lock
through Arm Holder B and
Rail Clip. Turn the Arm Lock
counter-clockwise to secure
the Rail Clip in place. These will
be assembled during the shaft
assembly step to shafts D, E, F,
G, BC and BD.
Cut two 7.5 cm lengths of rail and insert
into See-Saw as shown using a Rail Clip
to support the ends of the rail.
Page 3
