6.3.2 Changing the installation position of the caster wheels
The seat height/angle can be retroactively adjusted through repositioning of the casters in the caster forks or use of
different wheel sizes.
Please refer to the installation matrix in the section "Technical data" for permitted positions and combinations of
rear and caster wheels.

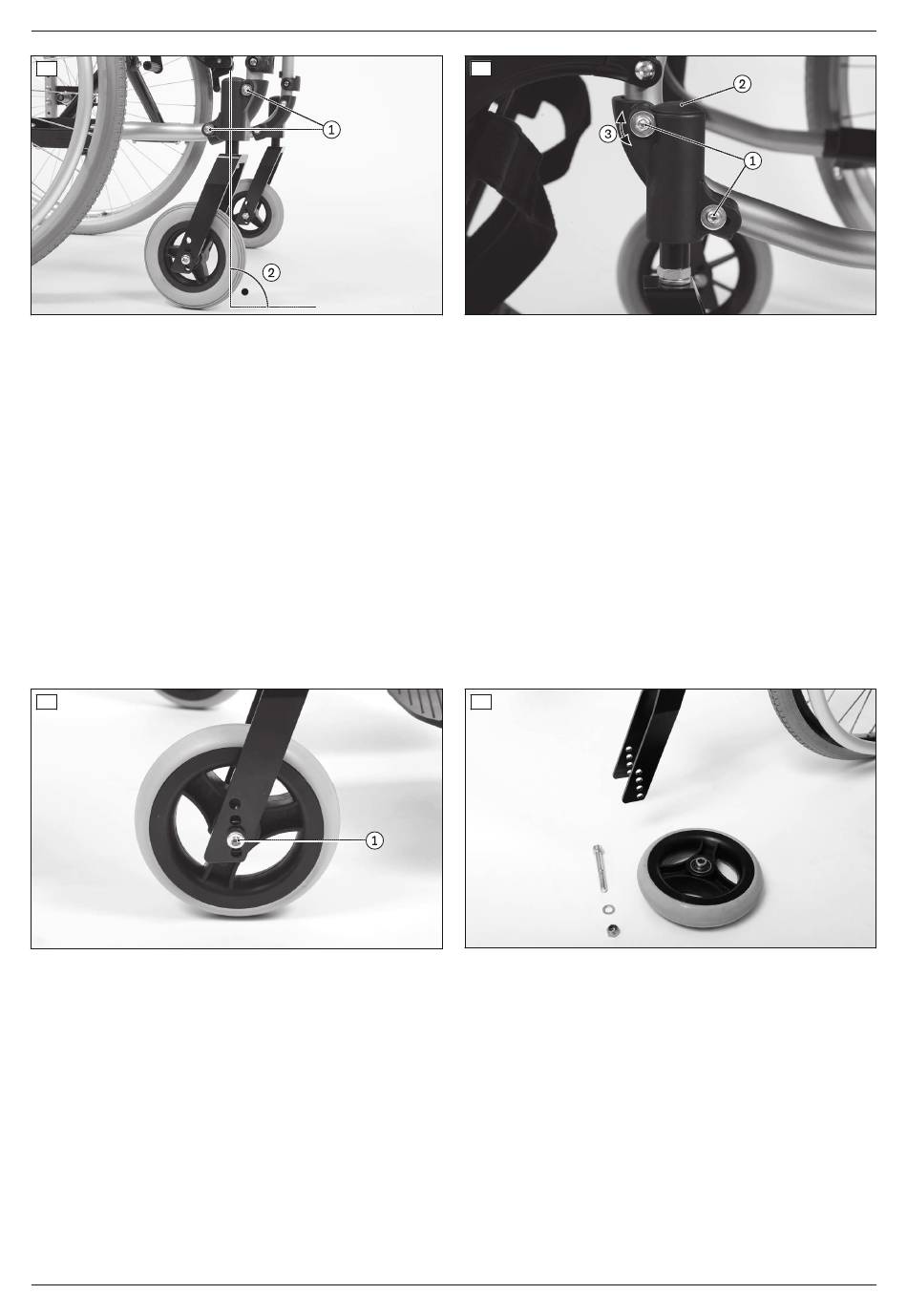

1) Loosen the screw connection (see fig. 15, item 1).
2) Remove the screw/threaded sleeve, spacers and, if applicable, nuts (see fig. 16).
3) Remove the caster wheel.
4) Insert the screw/threaded sleeve with the first spacer bushing offset in one of the 4 holes (not illustrated).
5) Install the caster wheel.
6) If applicable, slide on the second spacer bushing (not illustrated).
7) Tighten the screw/nut to 8 Nm.
→ Once changed, the left and right caster wheels must have the same vertical position in the caster fork.
→ Once the front seat height has been adjusted, the caster journal angle must be checked and if necessary read
justed.
