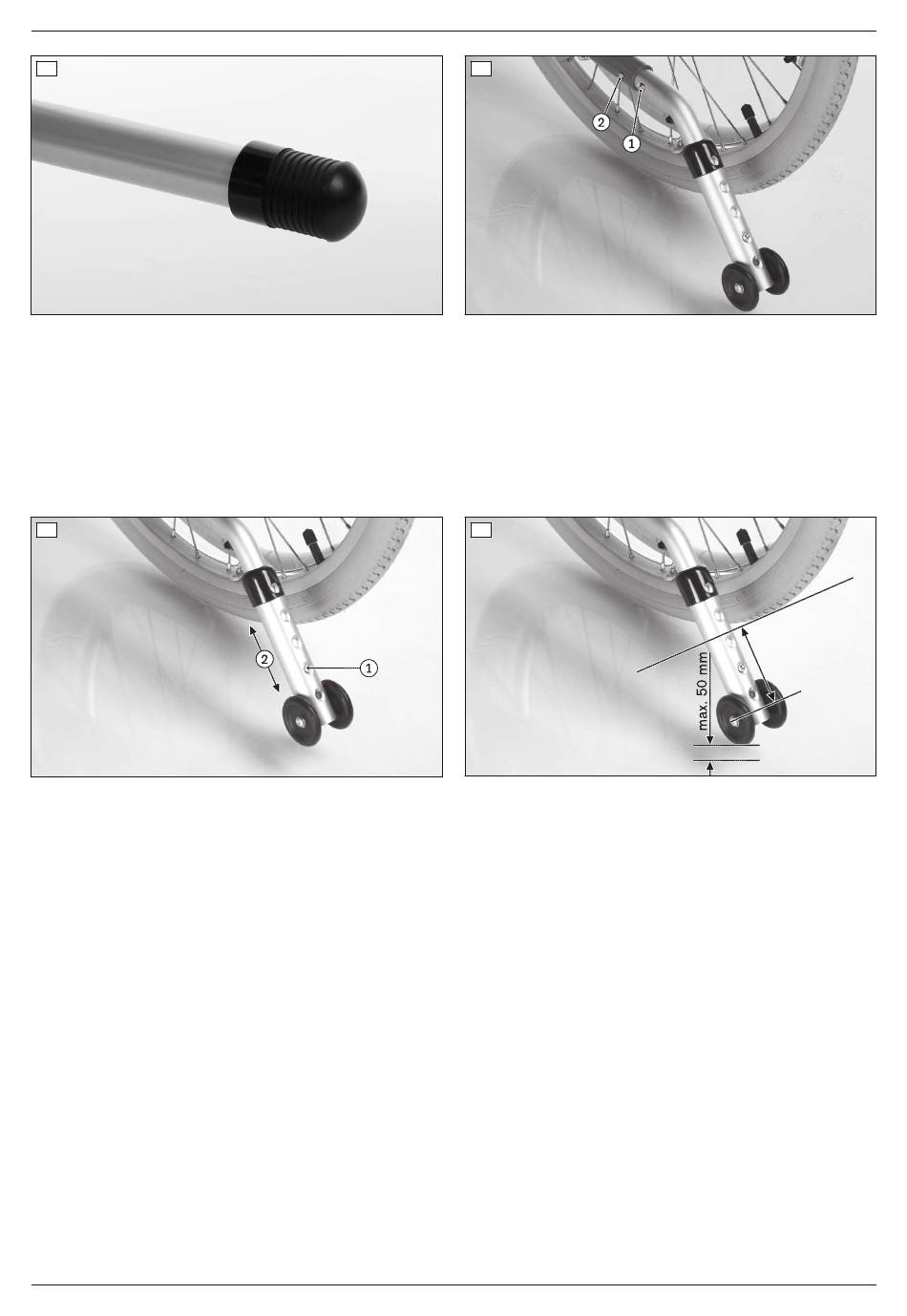

Adjusting the anti-tipper
1) Depress the spring button on the lower tube section of the anti-tipper (see fig. 58, item 1).
2) Adjust the length of the anti-tipper (see fig. 58, item 2):
→ The distance between the anti-tipper rollers and the ground must be 50 mm max. (see fig. 59).
→ As a minimum, the anti-tipper rollers must project beyond the largest diameter of the rear wheel (see
fig. 59).
3) Allow the spring button to engage.
58
6.12.2 Installing and adjusting transport wheels
Follow the instructions included with the installation kit to install the transport wheels.
Adjusting the height of the transport wheels
1) The height is adjustable in four increments of 20 mm each. Loosen the screw connections for this purpose
(see fig. 60, item 1).
2) Adjust the transport wheels to the same height. In doing so, adjust the height so the transport wheels do not
contact the floor when the drive wheels are mounted.
3) Firmly re-tighten the screws.
