→ The braking force of both rear wheels must be adjusted equally.

6.5 Installing the wheel lock lever extension

1) Pull the wheel lock handle off the knee lever wheel lock. Cut open if necessary.

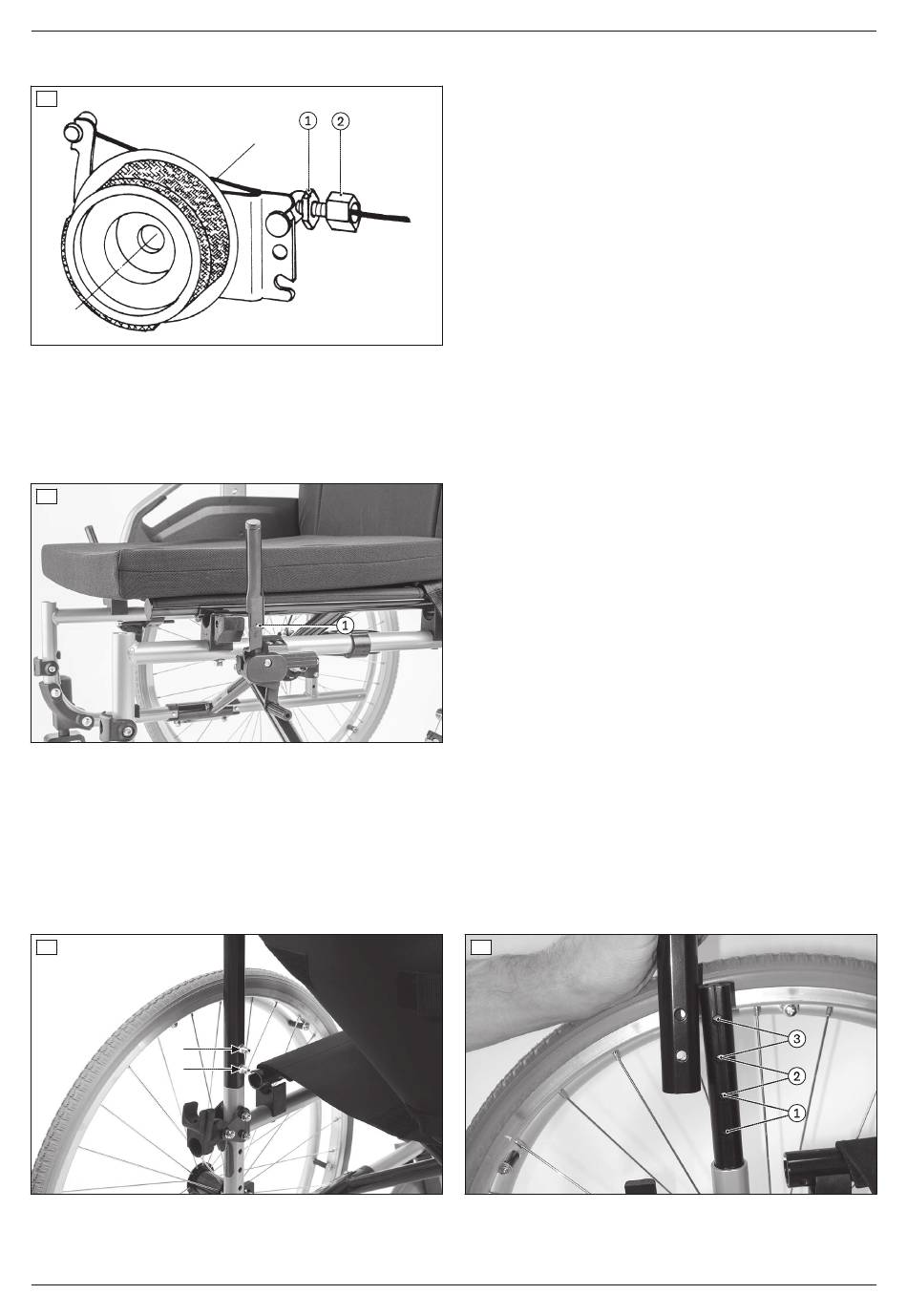

2) Slide the wheel lock lever extension onto the wheel lock lever and secure it with the pin (see fig. 24, item 1).

3) Check the folding function.

1) Remove the two Allen head screws on the lower end of both back tubes (see fig. 25).

2) Set the back height at the desired level. 3 levels are available (see fig. 26).

3) Insert the two Allen head screws on the lower end of the back tubes and tighten to 8 Nm (see fig. 25).

The back height can also be adjusted by 25 mm by changing the position of the back upholstery (see next section).
