Settings
6

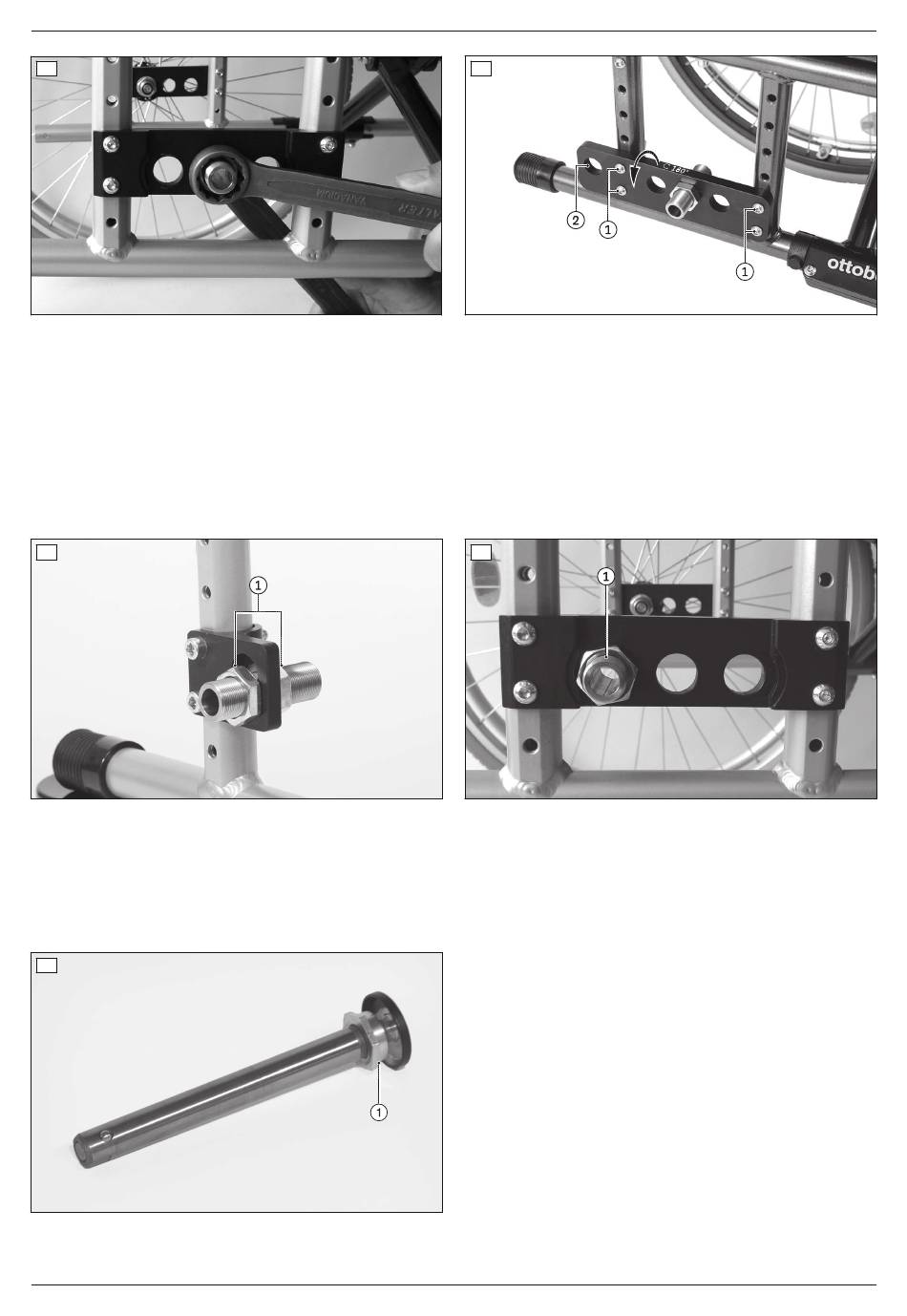

6.2.3 Adjusting the track width (additional adjustment)

The distance between the drive wheel and the side panel can be continuously adjusted.
1) Remove the wheels.
2) Loosen the respective countered hexagon nut on the fitting:
→ 481G74=SE002 drive wheel adapter:see fig. 8, item 1
→ 481G74=SE006 drive wheel adapter:see fig. 9, item 1
3) Screw the fitting slightly in or out.
4) Tighten the countered hexagon nut to 50 Nm on each side.
8

6.2.4 Adjusting the quick-release axle

The quick-release axle should be set so the wheel is correctly engaged, with no play on the axle.
1) Hold the quick-release axle by the head (wrench size: 19 mm) and by the tip (wrench size: 11 mm) with a ring
and open-ended wrench respectively.
2) Adjust the play by turning the nut on the end of the quick-release axle (see fig. 10, item 1) in or out.
10
12
7
9
Start M2S, Start M2
