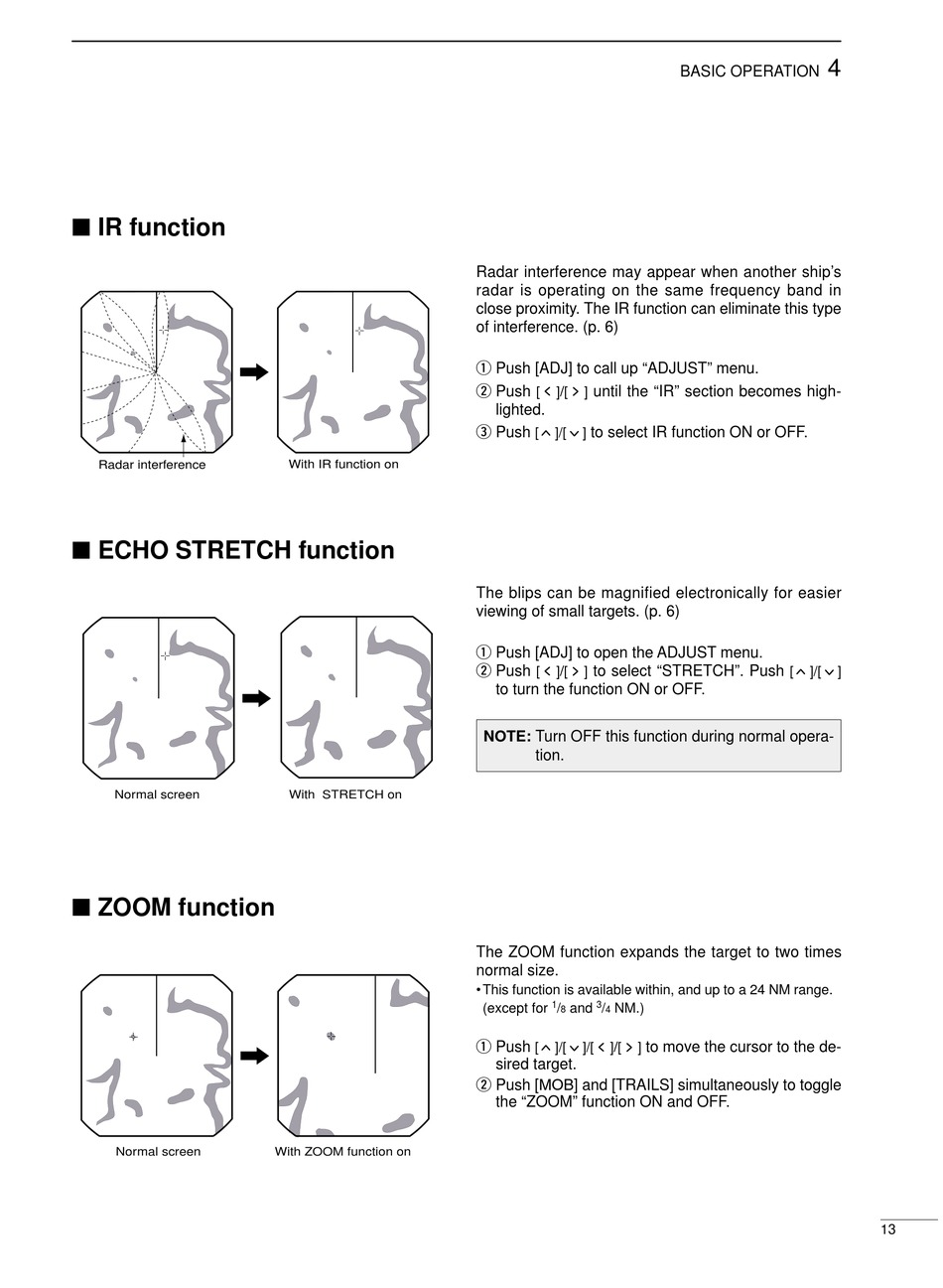

IR function
Radar interference
ECHO STRETCH function
Normal screen
ZOOM function
Normal screen
With ZOOM function on
With IR function on
With STRETCH on
Radar interference may appear when another ship's
radar is operating on the same frequency band in
close proximity. The IR function can eliminate this type
of interference. (p. 6)
q Push [ADJ] to call up "ADJUST" menu.
w Push
until the "IR" section becomes high-
]
]
lighted.
e Push
to select IR function ON or OFF.
]/
]
The blips can be magnified electronically for easier
viewing of small targets. (p. 6)
q Push [ADJ] to open the ADJUST menu.
w Push
to select "STRETCH". Push
]
]
to turn the function ON or OFF.
NOTE: Turn OFF this function during normal opera-
tion.
The ZOOM function expands the target to two times
normal size.
• This function is available within, and up to a 24 NM range.
1
3
(except for
/
and
/
NM.)
8
4
q Push
to move the cursor to the de-
]/
]/
]
]
sired target.
w Push [
] and [TRAILS] simultaneously to toggle
the "ZOOM" function ON and OFF.
4
