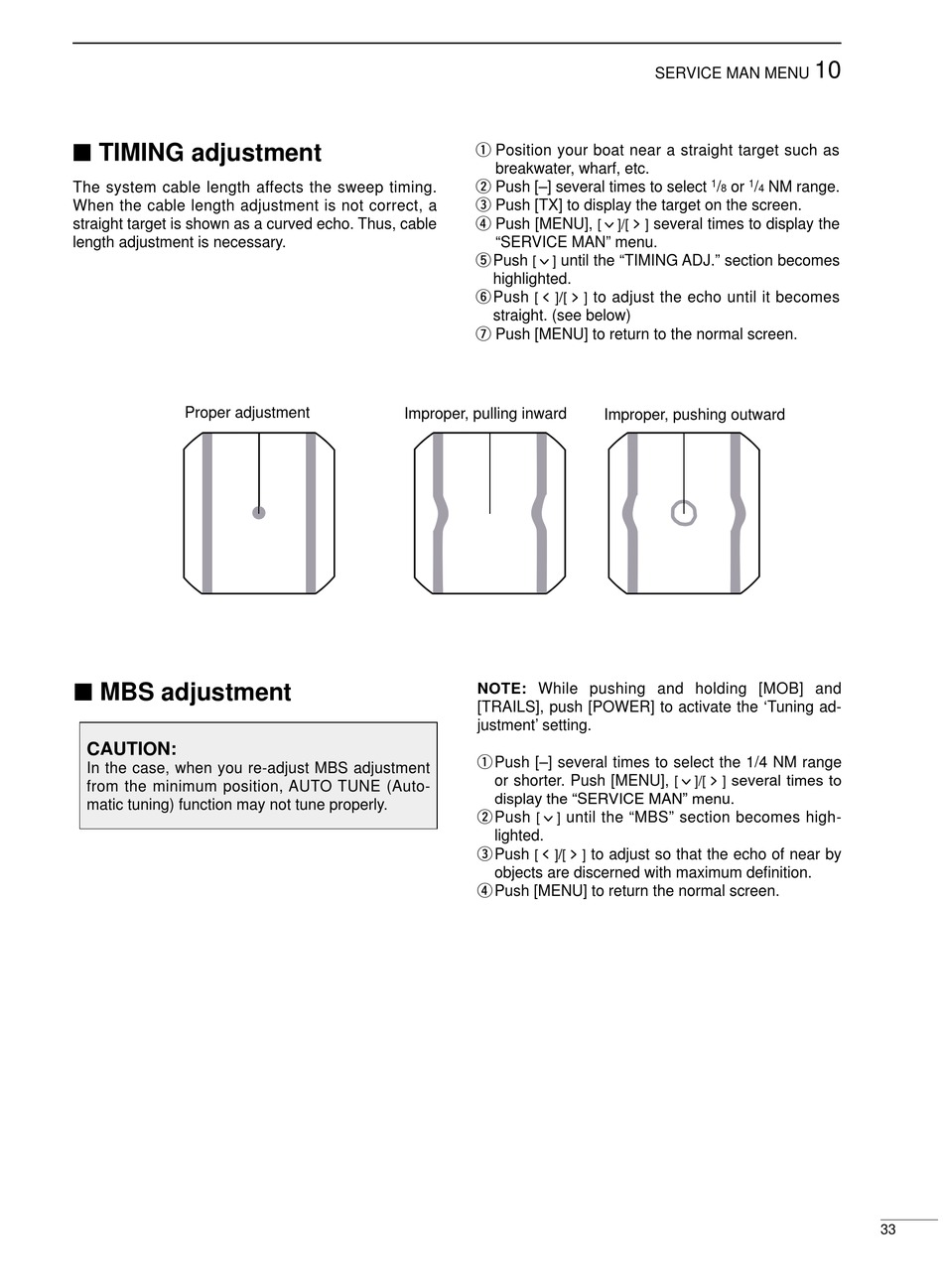

TIMING adjustment

The system cable length affects the sweep timing.
When the cable length adjustment is not correct, a
straight target is shown as a curved echo. Thus, cable
length adjustment is necessary.
Proper adjustment

MBS adjustment

CAUTION:
In the case, when you re-adjust MBS adjustment
from the minimum position, AUTO TUNE (Auto-
matic tuning) function may not tune properly.
q Position your boat near a straight target such as
breakwater, wharf, etc.
w Push [–] several times to select
e Push [TX] to display the target on the screen.
r Push [MENU],
"SERVICE MAN" menu.
t Push
until the "TIMING ADJ." section becomes
]
highlighted.
y Push
]
straight. (see below)
u Push [MENU] to return to the normal screen.
Improper, pulling inward
NOTE: While pushing and holding [MOB] and
[TRAILS], push [POWER] to activate the 'Tuning ad-
justment' setting.
q Push [–] several times to select the 1/4 NM range
or shorter. Push [MENU],
w Push
until the "MBS" section becomes high-
]
lighted.
e Push
]
objects are discerned with maximum definition.
r Push [MENU] to return the normal screen.
SERVICE MAN MENU
1 1
/ or /
8 4
several times to display the
]/ ]
to adjust the echo until it becomes
]
Improper, pushing outward
]/ ]
to adjust so that the echo of near by
]
10
NM range.
