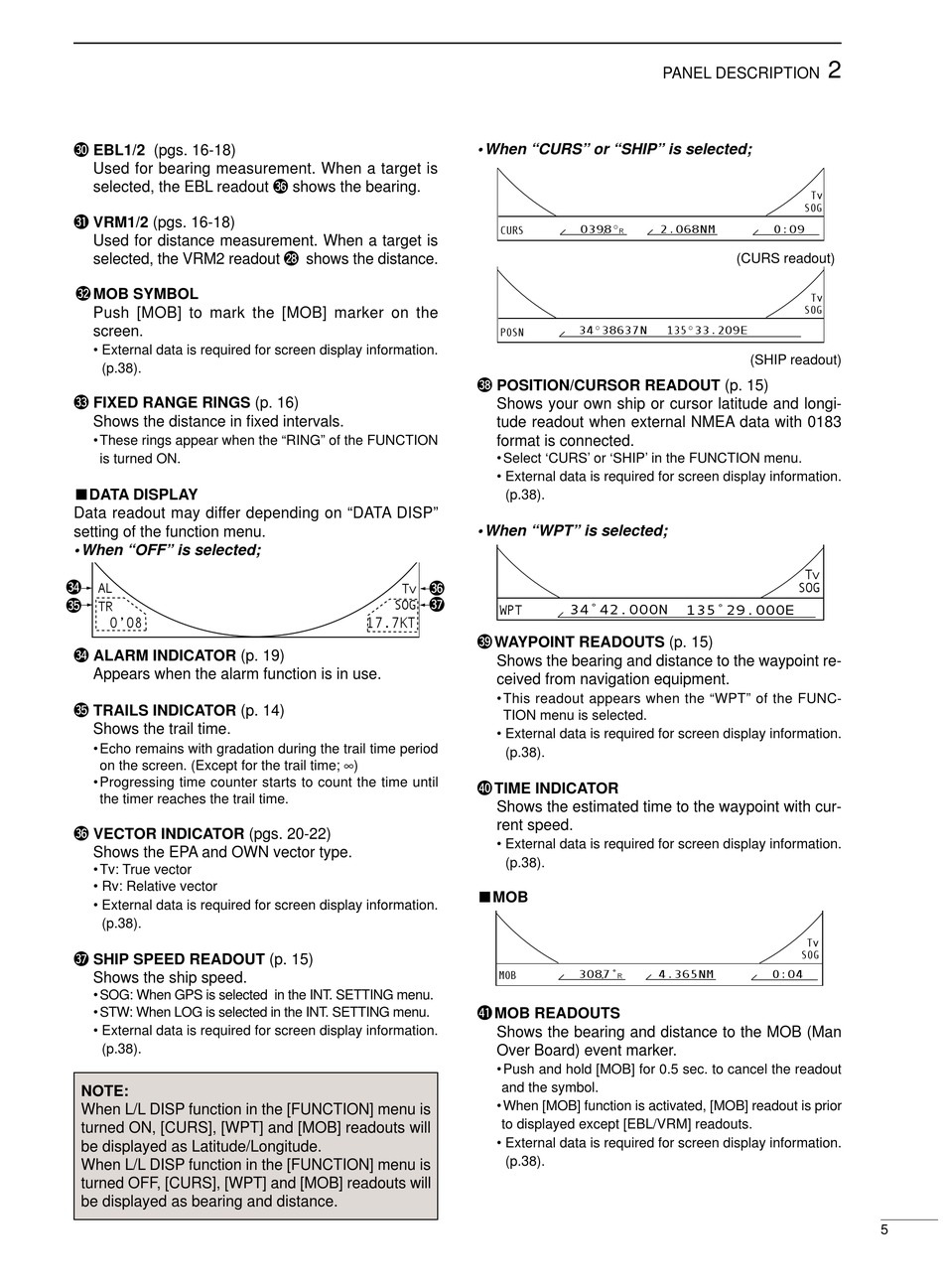

#0 EBL1/2 (pgs. 16-18)
Used for bearing measurement. When a target is
selected, the EBL readout #6 shows the bearing.
#1 VRM1/2 (pgs. 16-18)
Used for distance measurement. When a target is
selected, the VRM2 readout @8 shows the distance.
#2 MOB SYMBOL
Push [MOB] to mark the [MOB] marker on the
screen.
• External data is required for screen display information.
(p.38).
#3 FIXED RANGE RINGS (p. 16)
Shows the distance in fixed intervals.
• These rings appear when the "RING" of the FUNCTION
is turned ON.
DATA DISPLAY
Data readout may differ depending on "DATA DISP"
setting of the function menu.
• When "OFF" is selected;
#4
AL
#5
TR
0'08
#4 ALARM INDICATOR (p. 19)
Appears when the alarm function is in use.
#5 TRAILS INDICATOR (p. 14)
Shows the trail time.
• Echo remains with gradation during the trail time period
on the screen. (Except for the trail time; )
• Progressing time counter starts to count the time until
the timer reaches the trail time.
#6 VECTOR INDICATOR (pgs. 20-22)
Shows the EPA and OWN vector type.
• Tv: True vector
• Rv: Relative vector
• External data is required for screen display information.
(p.38).
#7 SHIP SPEED READOUT (p. 15)
Shows the ship speed.
• SOG: When GPS is selected in the INT. SETTING menu.
• STW: When LOG is selected in the INT. SETTING menu.
• External data is required for screen display information.
(p.38).
NOTE:
When L/L DISP function in the [FUNCTION] menu is
turned ON, [CURS], [WPT] and [MOB] readouts will
be displayed as Latitude/Longitude.
When L/L DISP function in the [FUNCTION] menu is
turned OFF, [CURS], [WPT] and [MOB] readouts will
be displayed as bearing and distance.
• When "CURS" or "SHIP" is selected;
CURS
POSN
#8 POSITION/CURSOR READOUT (p. 15)
Shows your own ship or cursor latitude and longi-
tude readout when external NMEA data with 0183
format is connected.
• Select 'CURS' or 'SHIP' in the FUNCTION menu.
• External data is required for screen display information.
(p.38).
• When "WPT" is selected;
#6
Tv
#7
SOG
WPT
17.7KT
#9 WAYPOINT READOUTS (p. 15)
Shows the bearing and distance to the waypoint re-
ceived from navigation equipment.
• This readout appears when the "WPT" of the FUNC-
TION menu is selected.
• External data is required for screen display information.
(p.38).
$0 TIME INDICATOR
Shows the estimated time to the waypoint with cur-
rent speed.
• External data is required for screen display information.
(p.38).
MOB
MOB
$1 MOB READOUTS
Shows the bearing and distance to the MOB (Man
Over Board) event marker.
• Push and hold [MOB] for 0.5 sec. to cancel the readout
and the symbol.
• When [MOB] function is activated, [MOB] readout is prior
to displayed except [EBL/VRM] readouts.
• External data is required for screen display information.
(p.38).
