Service man menu

ENGLISH
SPD ADJ. 24000
HDG ADJ. 0.0
TIMING ADJ.
MBS SET
TUNE PRESET
TUNE SET
T.METER SET
2
1/8 1/2 1
1/4 3/4 1.5 3
CAUTION:
The SERVICE MAN MENU is
available for service purposes only. DO NOT
change any setting on the menu, otherwise the
equipment may not operate at it's original per-
formance.
OUTPUT VOLT. 30.2
HV 349
MONITOR 47
HEATER 0.53
MG 0.0
TX TIME
1.2H
4 36 8 16 32
6 24 36
12

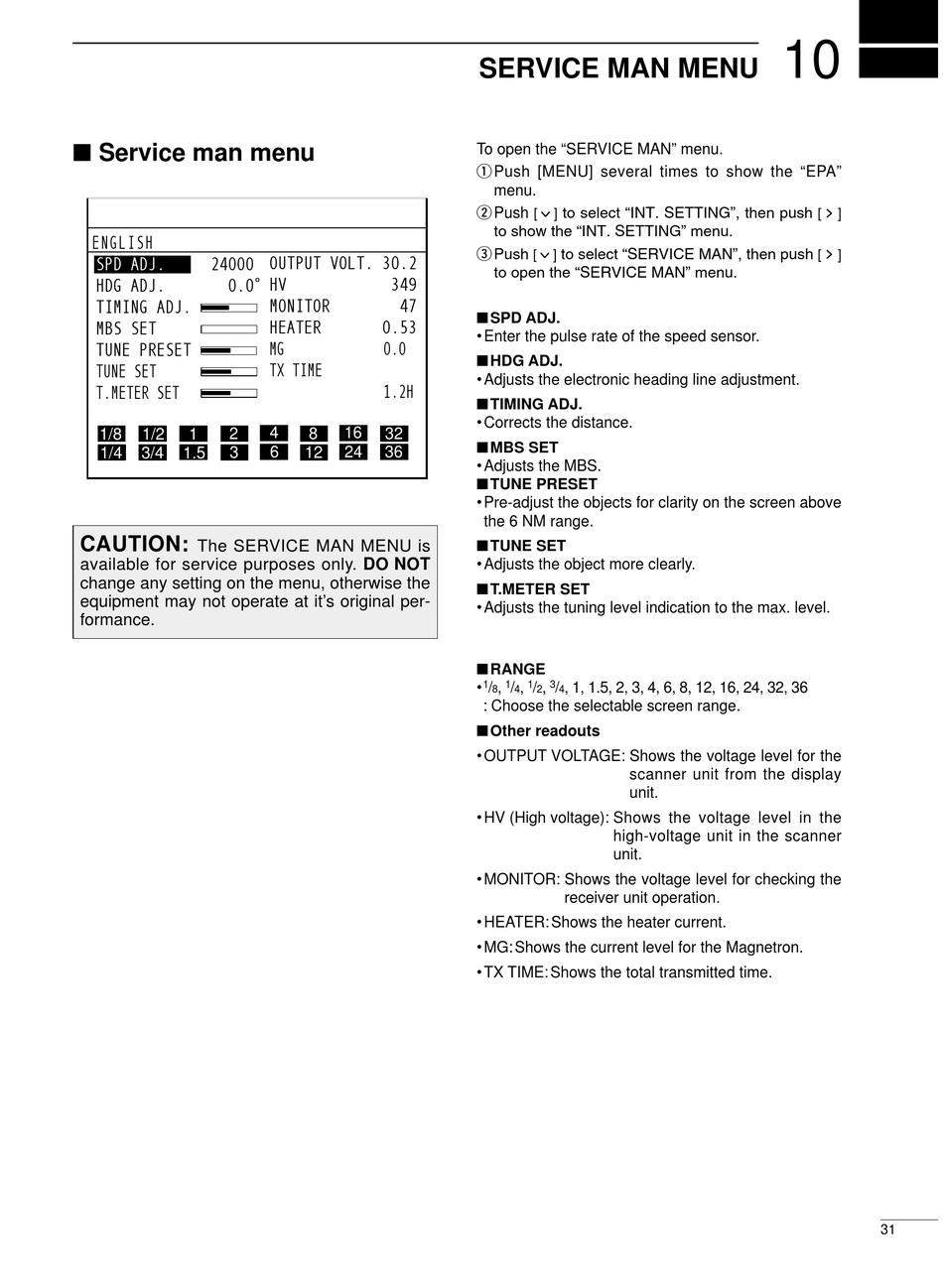

SERVICE MAN MENU
To open the "SERVICE MAN" menu.
q Push [MENU] several times to show the "EPA"
menu.
w Push
]
e
]
SPD ADJ.
• Enter the pulse rate of the speed sensor.
HDG ADJ.
• Adjusts the electronic heading line adjustment.
TIMING ADJ.
• Corrects the distance.
MBS SET
• Adjusts the MBS.
TUNE PRESET
• Pre-adjust the objects for clarity on the screen above
the 6 NM range.
TUNE SET
• Adjusts the object more clearly.
T.METER SET
• Adjusts the tuning level indication to the max. level.
RANGE
1 1 1 3
• / , / , / , / , 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36
8 4 2 4
: Choose the selectable screen range.
Other readouts
• OUTPUT VOLTAGE: Shows the voltage level for the
scanner unit from the display
unit.
• HV (High voltage): Shows the voltage level in the
high-voltage unit in the scanner
unit.
• MONITOR: Shows the voltage level for checking the
receiver unit operation.
• HEATER: Shows the heater current.
• MG: Shows the current level for the Magnetron.
• TX TIME: Shows the total transmitted time.
