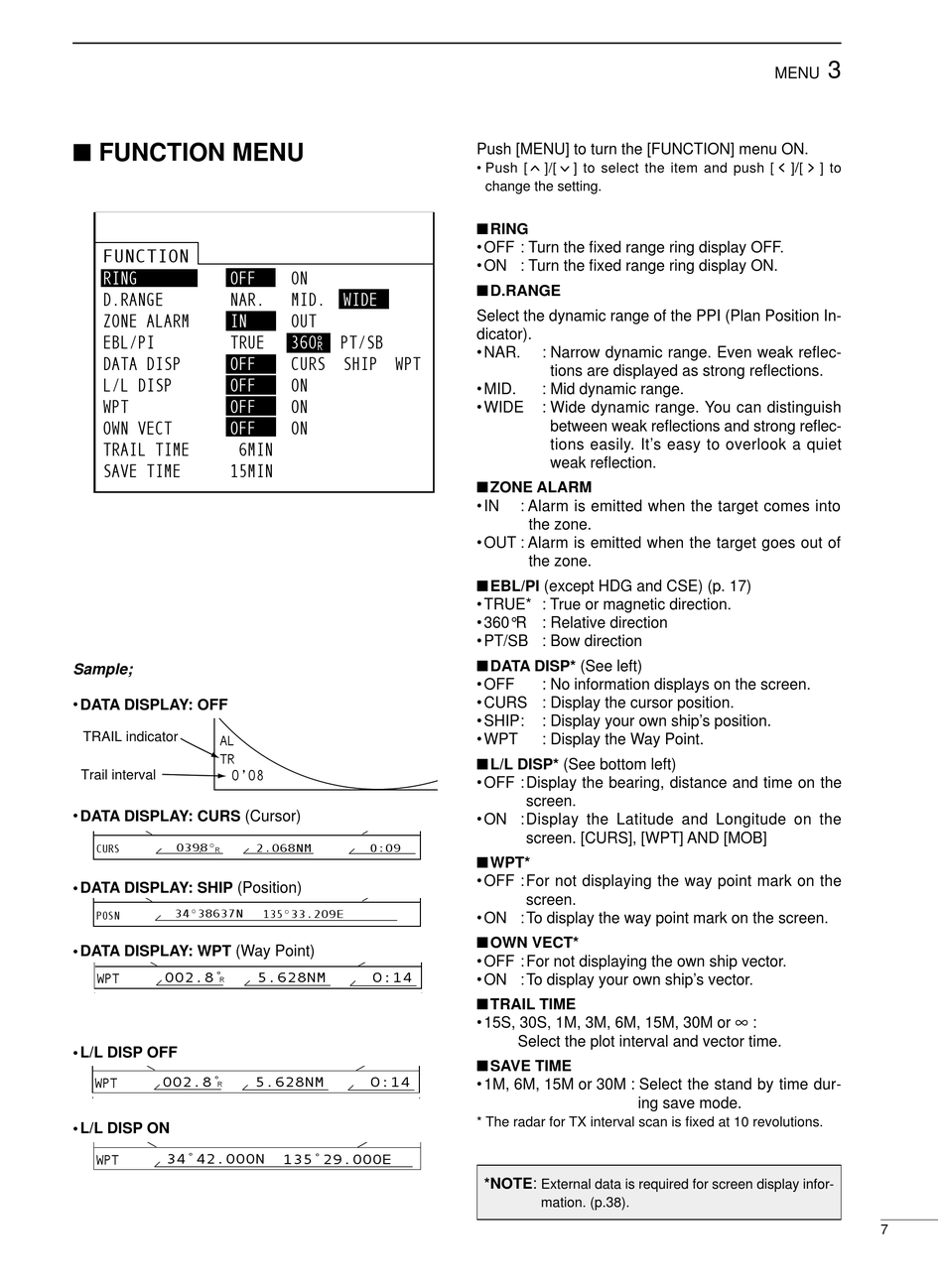

FUNCTION MENU

FUNCTION
RING OFF
D.RANGE NAR.
ZONE ALARM IN
EBL/PI TRUE
DATA DISP OFF
L/L DISP OFF
WPT OFF
OWN VECT OFF
TRAIL TIME 6MIN
SAVE TIME 15MIN
Sample;
• DATA DISPLAY: OFF
TRAIL indicator
AL
TR
0'08
Trail interval
• DATA DISPLAY: CURS (Cursor)
0398º
CURS
R
• DATA DISPLAY: SHIP (Position)
34º38637N
POSN
• DATA DISPLAY: WPT (Way Point)
002.8˚
WPT
R
• L/L DISP OFF
002.8˚
WPT
R
• L/L DISP ON
WPT 34˚42.000N
ON
MID. WIDE
OUT
360 PT/SB
R
CURS SHIP WPT
ON
ON
ON
2.068NM O:09
135º33.209E
5.628NM O:14
5.628NM O:14
SOG
135˚29.000E
Push [MENU] to turn the [FUNCTION] menu ON.
• Push ]/ ] to select the item and push
change the setting.
RING
• OFF : Turn the fixed range ring display OFF.
• ON : Turn the fixed range ring display ON.
D.RANGE
Select the dynamic range of the PPI (Plan Position In-
dicator).
• NAR. : Narrow dynamic range. Even weak reflec-
tions are displayed as strong reflections.
• MID. : Mid dynamic range.
• WIDE : Wide dynamic range. You can distinguish
between weak reflections and strong reflec-
tions easily. It's easy to overlook a quiet
weak reflection.
ZONE ALARM
• IN : Alarm is emitted when the target comes into
the zone.
• OUT : Alarm is emitted when the target goes out of
the zone.
EBL/PI (except HDG and CSE) (p. 17)
• TRUE* : True or magnetic direction.
• 360°R : Relative direction
• PT/SB : Bow direction
DATA DISP* (See left)
• OFF : No information displays on the screen.
• CURS : Display the cursor position.
• SHIP: : Display your own ship's position.
• WPT : Display the Way Point.
L/L DISP* (See bottom left)
• OFF : Display the bearing, distance and time on the
screen.
• ON : Display the Latitude and Longitude on the
screen. [CURS], [WPT] AND [MOB]
WPT*
• OFF : For not displaying the way point mark on the
screen.
• ON : To display the way point mark on the screen.
OWN VECT*
• OFF : For not displaying the own ship vector.
• ON : To display your own ship's vector.
TRAIL TIME
• 15S, 30S, 1M, 3M, 6M, 15M, 30M or
Select the plot interval and vector time.
SAVE TIME
• 1M, 6M, 15M or 30M : Select the stand by time dur-
ing save mode.
* The radar for TX interval scan is fixed at 10 revolutions.
*NOTE:
External data is required for screen display infor-
mation. (p.38).
