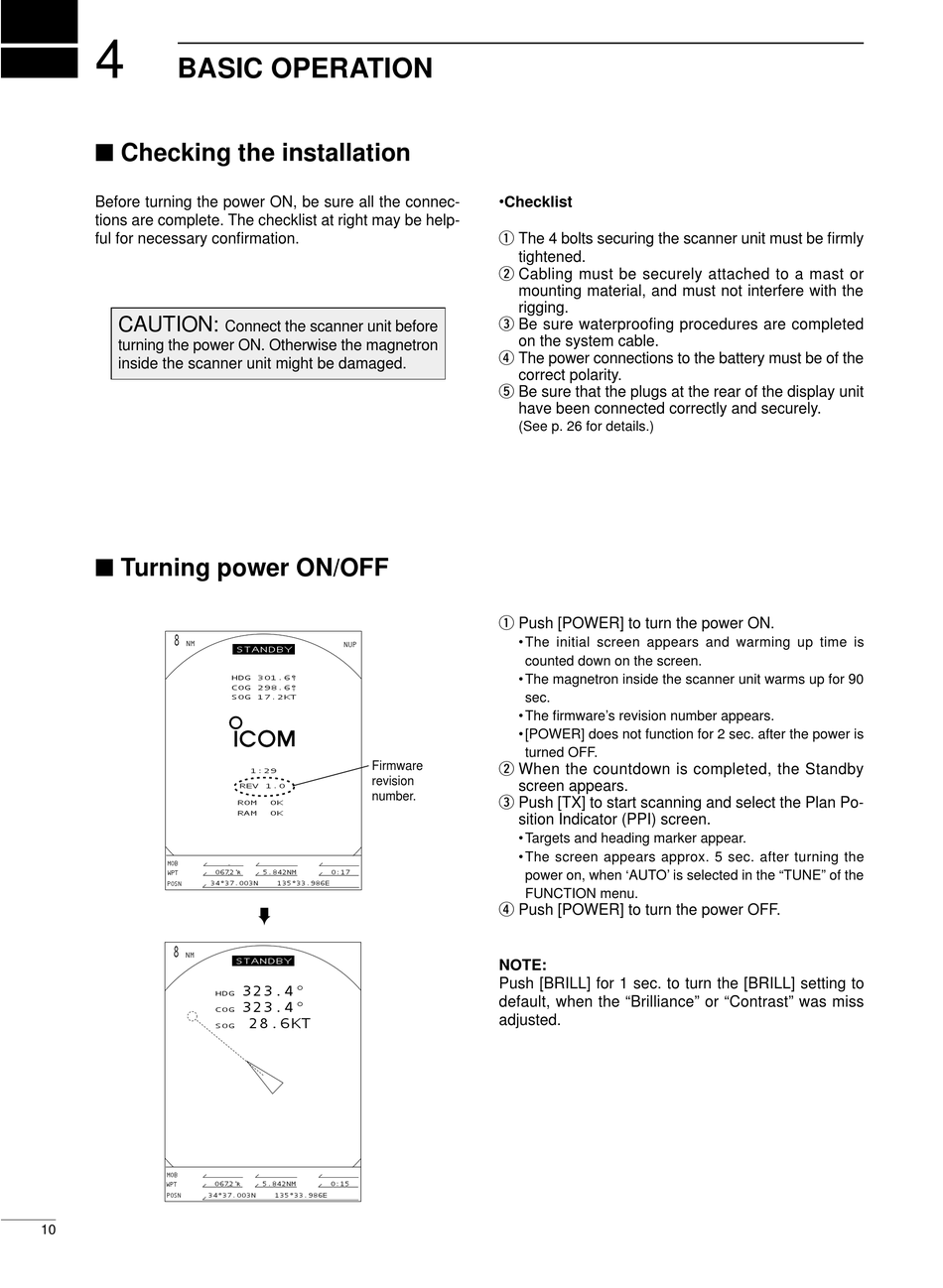

BASIC OPERATION

Checking the installation

Before turning the power ON, be sure all the connec-
tions are complete. The checklist at right may be help-
ful for necessary confirmation.
CAUTION:
turning the power ON. Otherwise the magnetron
inside the scanner unit might be damaged.

Turning power ON/OFF

8
NM
MOB
0672˚
WPT
34°37.003N
POSN
8
NM
HDG
COG
SOG
MOB
WPT 0672˚
POSN 34°37.003N
10
Connect the scanner unit before
NUP
STANDBY
HDG 301.6°
T
COG 298.6°
T
SOG 17.2KT
Firmware
1:29
revision
REV 1.0
number.
ROM OK
RAM OK
5.842NM O:17
R
135°33.986E
STANDBY
323.4°
323.4°
28.6KT
5.842NM O:15
R
135°33.986E
•Checklist
q The 4 bolts securing the scanner unit must be firmly
tightened.
w Cabling must be securely attached to a mast or
mounting material, and must not interfere with the
rigging.
e Be sure waterproofing procedures are completed
on the system cable.
r The power connections to the battery must be of the
correct polarity.
t Be sure that the plugs at the rear of the display unit
have been connected correctly and securely.
(See p. 26 for details.)
q Push [POWER] to turn the power ON.
• The initial screen appears and warming up time is
counted down on the screen.
• The magnetron inside the scanner unit warms up for 90
sec.
• The firmware's revision number appears.
• [POWER] does not function for 2 sec. after the power is
turned OFF.
w When the countdown is completed, the Standby
screen appears.
e Push [TX] to start scanning and select the Plan Po-
sition Indicator (PPI) screen.
• Targets and heading marker appear.
• The screen appears approx. 5 sec. after turning the
power on, when 'AUTO' is selected in the "TUNE" of the
FUNCTION menu.
r Push [POWER] to turn the power OFF.
NOTE:
Push [BRILL] for 1 sec. to turn the [BRILL] setting to
default, when the "Brilliance" or "Contrast" was miss
adjusted.
