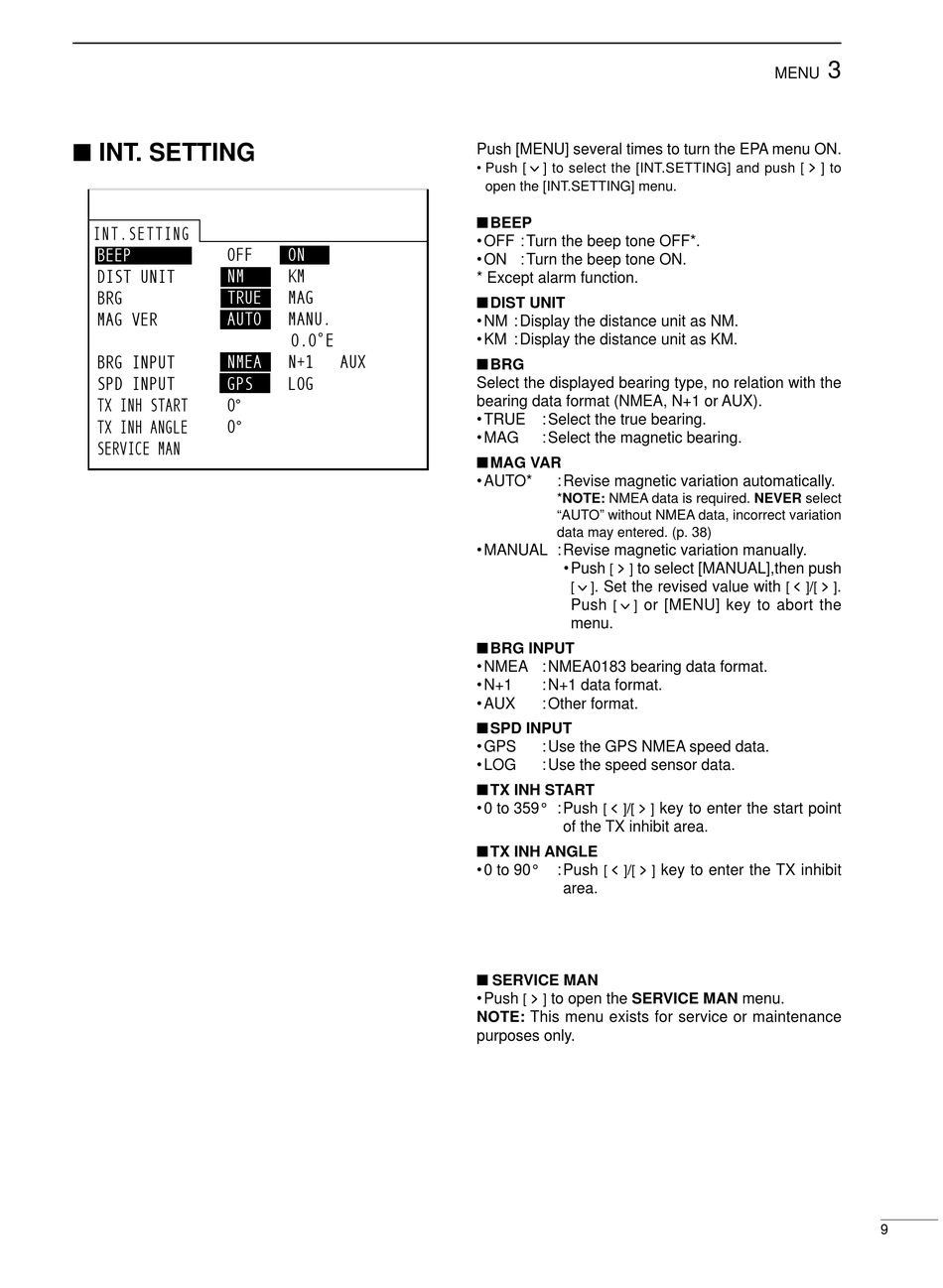

INT. SETTING

INT.SETTING
BEEP OFF
NM
DIST UNIT
TRUE
BRG
MAG VER AUTO
!!
NMEA
BRG INPUT
GPS
SPD INPUT
TX INH START 0
TX INH ANGLE 0
SERVICE MAN
ON
KM WI
MAG
MANU.
0.0 E
N+1 AUX
LOGOF
Push [MENU] several times to turn the EPA menu ON.
• Push ] to select the [INT.SETTING] and push
open the [INT.SETTING] menu.
BEEP
• OFF : Turn the beep tone OFF*.
• ON : Turn the beep tone ON.
* Except alarm function.
DIST UNIT
• NM : Display the distance unit as NM.
• KM : Display the distance unit as KM.
BRG
Select the displayed bearing type, no relation with the
bearing data format (NMEA, N+1 or AUX).
• TRUE : Select the true bearing.
• MAG : Select the magnetic bearing.
MAG VAR
• AUTO* : Revise magnetic variation automatically.
*NOTE: NMEA data is required. NEVER select
"AUTO" without NMEA data, incorrect variation
data may entered. (p. 38)
• MANUAL : Revise magnetic variation manually.
• Push to select [MANUAL],then push
]
. Set the revised value with
]
Push or [MENU] key to abort the
]
menu.
BRG INPUT
• NMEA : NMEA0183 bearing data format.
• N+1 : N+1 data format.
• AUX : Other format.
SPD INPUT
• GPS : Use the GPS NMEA speed data.
• LOG : Use the speed sensor data.
TX INH START
• 0 to 359° : Push
] ]
of the TX inhibit area.
TX INH ANGLE
• 0 to 90° : Push
] ]
area.
SERVICE MAN
• Push to open the SERVICE MAN menu.
]
NOTE: This menu exists for service or maintenance
purposes only.
