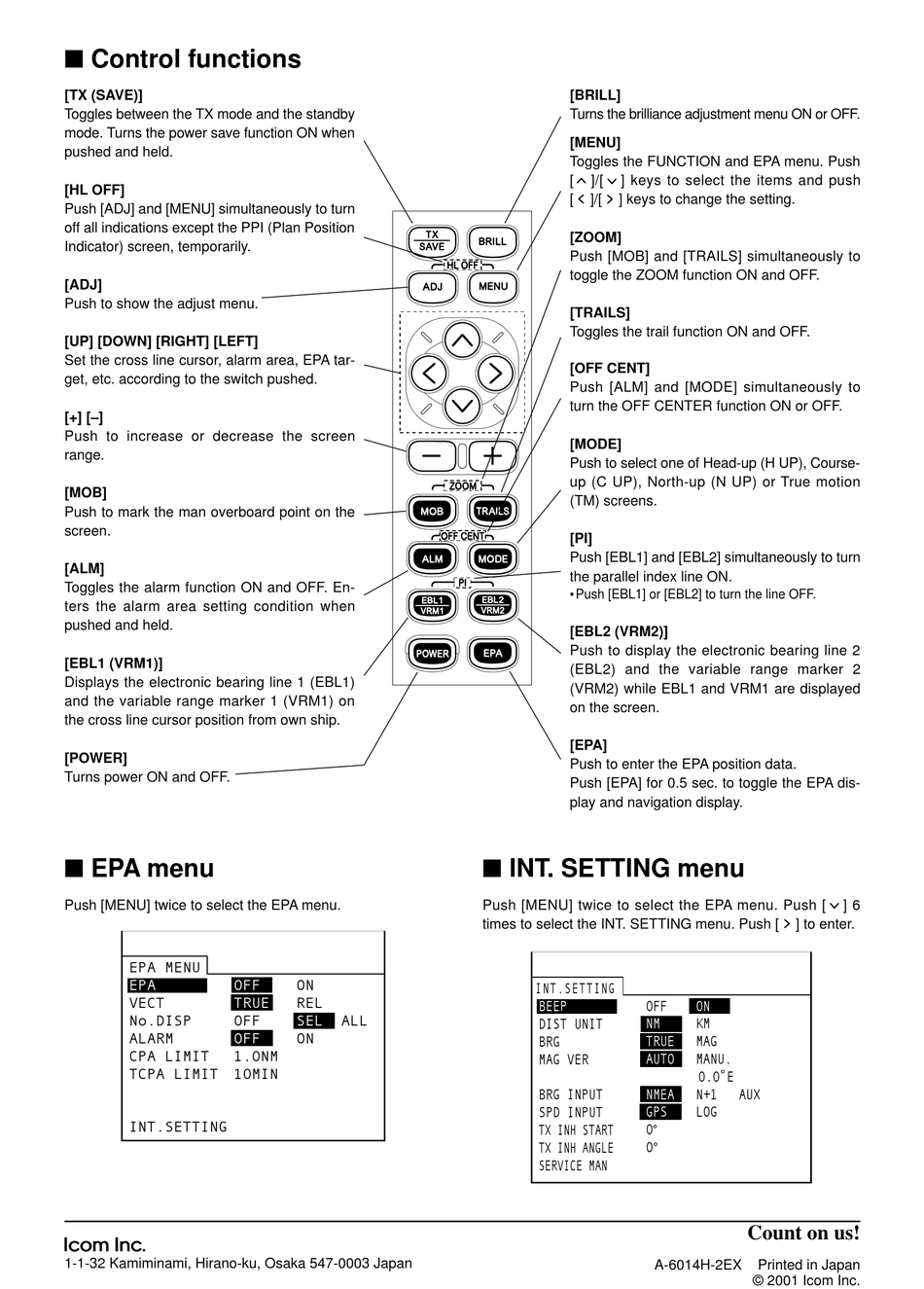

Control functions
[TX (SAVE)]
Toggles between the TX mode and the standby
mode. Turns the power save function ON when
pushed and held.
[HL OFF]
Push [ADJ] and [MENU] simultaneously to turn
off all indications except the PPI (Plan Position
Indicator) screen, temporarily.
[ADJ]
Push to show the adjust menu.
[UP] [DOWN] [RIGHT] [LEFT]
Set the cross line cursor, alarm area, EPA tar-
get, etc. according to the switch pushed.
[+] [–]
Push to increase or decrease the screen
range.
[MOB]
Push to mark the man overboard point on the
screen.
[ALM]
Toggles the alarm function ON and OFF. En-
ters the alarm area setting condition when
pushed and held.
[EBL1 (VRM1)]
Displays the electronic bearing line 1 (EBL1)
and the variable range marker 1 (VRM1) on
the cross line cursor position from own ship.
[POWER]
Turns power ON and OFF.
EPA menu
Push [MENU] twice to select the EPA menu.
EPA MENU
EPA OFF
VECT TRUE
No.DISP OFF
ALARM OFF
CPA LIMIT 1.0NM
TCPA LIMIT 10MIN
INT.SETTING
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
ON
REL
SEL ALL
ON
[BRILL]
Turns the brilliance adjustment menu ON or OFF.
[MENU]
Toggles the FUNCTION and EPA menu. Push
[ ]/[ ] keys to select the items and push
[ ]/[ ] keys to change the setting.
[ZOOM]
Push [MOB] and [TRAILS] simultaneously to
toggle the ZOOM function ON and OFF.
[TRAILS]
Toggles the trail function ON and OFF.
[OFF CENT]
Push [ALM] and [MODE] simultaneously to
turn the OFF CENTER function ON or OFF.
[MODE]
Push to select one of Head-up (H UP), Course-
up (C UP), North-up (N UP) or True motion
(TM) screens.
[PI]
Push [EBL1] and [EBL2] simultaneously to turn
the parallel index line ON.
• Push [EBL1] or [EBL2] to turn the line OFF.
[EBL2 (VRM2)]
Push to display the electronic bearing line 2
(EBL2) and the variable range marker 2
(VRM2) while EBL1 and VRM1 are displayed
on the screen.
[EPA]
Push to enter the EPA position data.
Push [EPA] for 0.5 sec. to toggle the EPA dis-
play and navigation display.
INT. SETTING menu
Push [MENU] twice to select the EPA menu. Push [
times to select the INT. SETTING menu. Push [
INT.SETTING
BEEP OFF
DIST UNIT NM
BRG TRUE
AUTO
MAG VER
!!
NMEA
BRG INPUT
GPS
SPD INPUT
TX INH START 0
TX INH ANGLE 0
SERVICE MAN
A-6014H-2EX
] 6
] to enter.
ON
KM WI
MAG
MANU.
0.0 E
N+1 AUX
LOGOF
