3
FREQUENCY AND CHANNEL SETTING

I Setting a frequency

q Push [V/M•S.MW•~] to select VFO mode, if necessary.
w Select the desired frequency band with [BAND•
• Or, while pushing and holding [BAND•
select the desired frequency band.
e Rotate [DIAL] to select the desired frequency band.
• The frequency changes according to the preset tuning steps.
See the right section for setting the tuning step.
• While pushing and holding [FUNC], rotate [DIAL] to change the
frequency in 1 MHz steps (default).
[DIAL]
[FUNC]
[BAND•
The 1 MHz tuning step (dial select step) can be set to
100 kHz, 1 MHz or 10 MHz tuning steps in set mode. See
p. 15 for details.
9
].
], rotate the [DIAL] to
FM
75
50
25
[DIAL] changes the frequency
according to the selected tuning
step.
FM
]
75
50
25
While pushing [FUNC], [DIAL]
changes the frequency in 1 MHz
steps (default).

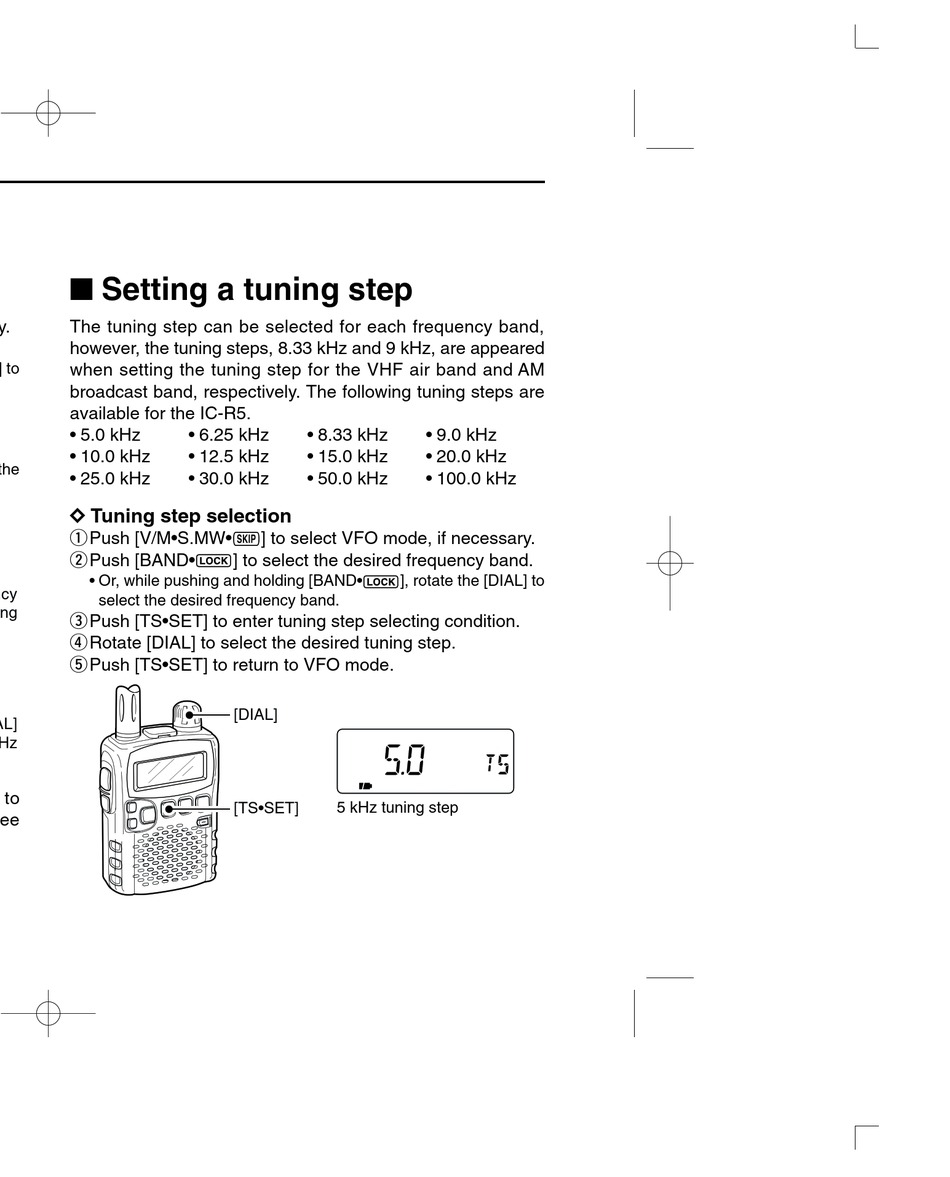

I Setting a tuning step

The tuning step can be selected for each frequency band,
however, the tuning steps, 8.33 kHz and 9 kHz, are appeared
when setting the tuning step for the VHF air band and AM
broadcast band, respectively. The following tuning steps are
available for the IC-R5.
• 5.0 kHz • 6.25 kHz
• 10.0 kHz • 12.5 kHz
• 25.0 kHz • 30.0 kHz
D D Tuning step selection
q Push [V/M•S.MW•~] to select VFO mode, if necessary.
w Push [BAND•
] to select the desired frequency band.
• Or, while pushing and holding [BAND•
select the desired frequency band.
e Push [TS•SET] to enter tuning step selecting condition.
r Rotate [DIAL] to select the desired tuning step.
t Push [TS•SET] to return to VFO mode.
[DIAL]
[TS•SET]
• 8.33 kHz • 9.0 kHz
• 15.0 kHz • 20.0 kHz
• 50.0 kHz • 100.0 kHz
], rotate the [DIAL] to
5 kHz tuning step
