10
OTHER FUNCTIONS

I Data cloning

Cloning allows you to quickly and easily transfer the pro-
grammed contents from one receiver to another; or data from
a personal computer to a receiver using the optional CS-R5
.
CLONING SOFTWARE
D Cloning between receivers
qConnect the OPC-474 cloning cable to the [SP] jack of the
master and sub-receivers.
• The master receiver is used to send data to the sub-receiver.
to [SP]
Master
receiver
51
POWER ON
AT
to [SP]
Sub-
receiver

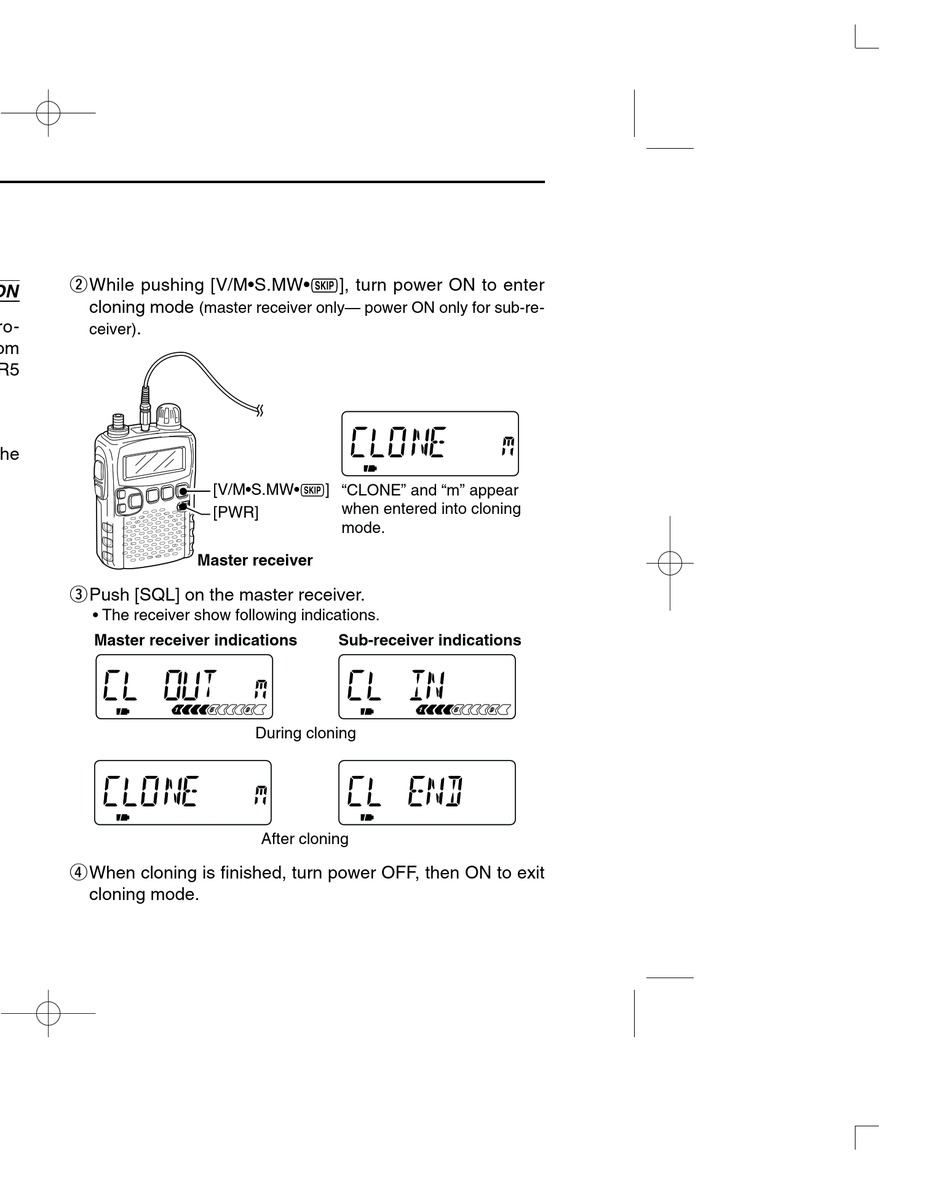

wWhile pushing [V/M•S.MW•~], turn power ON to enter
cloning mode
(master receiver only— power ON only for sub-re-
.
ceiver)
[V/M•S.MW•~]
[PWR]
Master receiver
ePush [SQL] on the master receiver.
• The receiver show following indications.
Master receiver indications
During cloning
After cloning
rWhen cloning is finished, turn power OFF, then ON to exit
cloning mode.
"CLONE" and "m" appear
when entered into cloning
mode.
Sub-receiver indications
