y AUTO WRITE CHANNEL INDICATOR (p. 29)
Appears when auto write channel is selected.
u SKIP INDICATORS (p. 30)
➥ "SKIP" appears when the selected memory channel is
specified as a skip channel.
➥ "P SKIP" appears when the displayed frequency is
specified as a skip frequency.
i PRIORITY WATCH INDICATOR (p. 33)
Appears when priority watch is in use.
o MEMORY INDICATOR (pgs. 7, 10)
Appears when memory mode is selected.
!0 MEMORY CHANNEL NUMBER INDICATORS
Shows the selected memory channel number. (pgs. 7, 10)
!1 SIGNAL STRENGTH INDICATOR (p. 11)
Shows the relative signal strength while receiving signals.
!2 VOLUME EXCHANGE INDICATOR (p. 49)
Appears when the function of [DIAL] and [Y]/[Z] are
traded.
PANEL DESCRIPTION

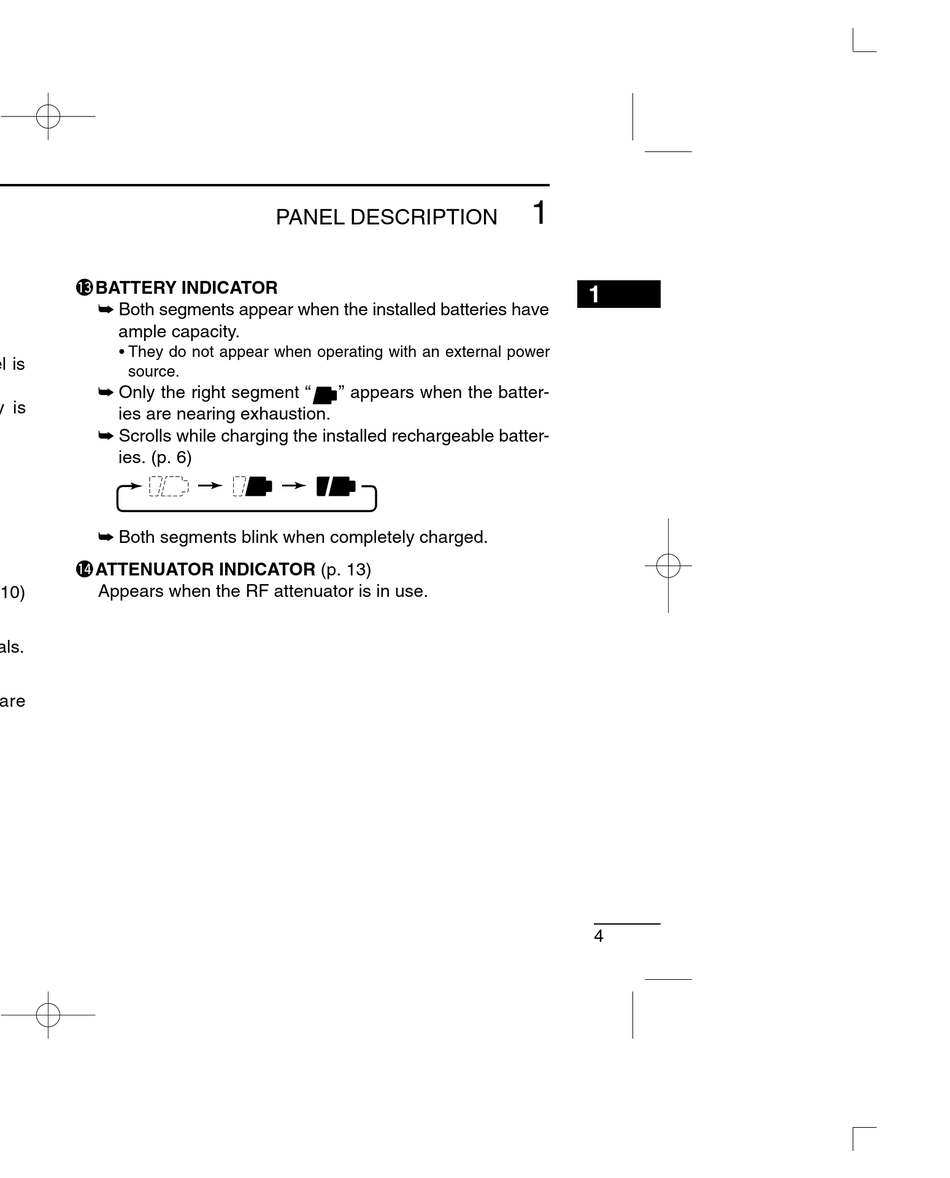

!3 BATTERY INDICATOR
➥ Both segments appear when the installed batteries have
ample capacity.
• They do not appear when operating with an external power
source.
➥ Only the right segment "
ies are nearing exhaustion.
➥ Scrolls while charging the installed rechargeable batter-
ies. (p. 6)
➥ Both segments blink when completely charged.
!4 ATTENUATOR INDICATOR (p. 13)
Appears when the RF attenuator is in use.
