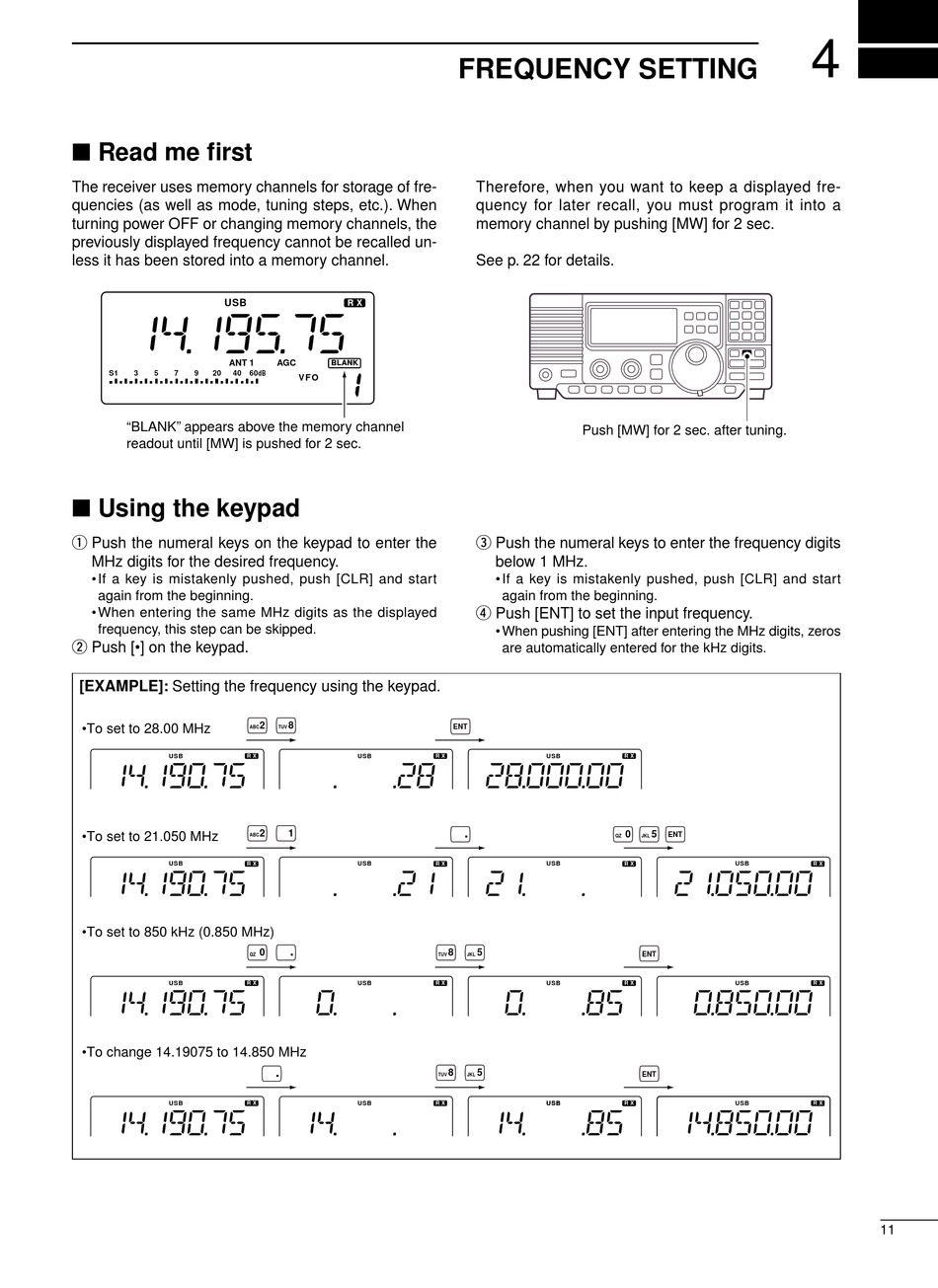

Read me first
The receiver uses memory channels for storage of fre-
quencies (as well as mode, tuning steps, etc.). When
turning power OFF or changing memory channels, the
previously displayed frequency cannot be recalled un-
less it has been stored into a memory channel.
USB
ANT
S1 3 5 7 9 20 40
"BLANK" appears above the memory channel
readout until [MW] is pushed for 2 sec.

Using the keypad

q Push the numeral keys on the keypad to enter the
MHz digits for the desired frequency.
• If a key is mistakenly pushed, push [CLR] and start
again from the beginning.
• When entering the same MHz digits as the displayed
frequency, this step can be skipped.
w Push [•] on the keypad.
[EXAMPLE]: Setting the frequency using the keypad.
•To set to 28.00 MHz
USB
R X
•To set to 21.050 MHz
USB
R X
•To set to 850 kHz (0.850 MHz)
USB
R X
•To change 14.19075 to 14.850 MHz
USB
R X
R X
1 AGC
BLANK BLANK
60dB
V F O
2 8
ABC TUV
USB
2 1
ABC
USB
.
0
QZ
USB
.
USB

FREQUENCY SETTING

Therefore, when you want to keep a displayed fre-
quency for later recall, you must program it into a
memory channel by pushing [MW] for 2 sec.
See p. 22 for details.
Push [MW] for 2 sec. after tuning.
e Push the numeral keys to enter the frequency digits
below 1 MHz.
• If a key is mistakenly pushed, push [CLR] and start
again from the beginning.
r Push [ENT] to set the input frequency.
• When pushing [ENT] after entering the MHz digits, zeros
are automatically entered for the kHz digits.
ENT
USB
R X
.
USB
R X
8 5
TUV JKL
USB
R X
8 5
TUV JKL
USB USB
R X
R X
0 5
ENT
QZ JKL
USB
R X
ENT
USB
R X
ENT
USB
R X R X
4
R X
R X
R X
11
