PANEL DESCRIPTION

I Front, top and side panels

q
w
e
r
t
y
q ANTENNA CONNECTOR (p. I)
Connects the supplied antenna.
• An optional AD-92SMA is available for connecting an antenna
with a BNC connector.
1

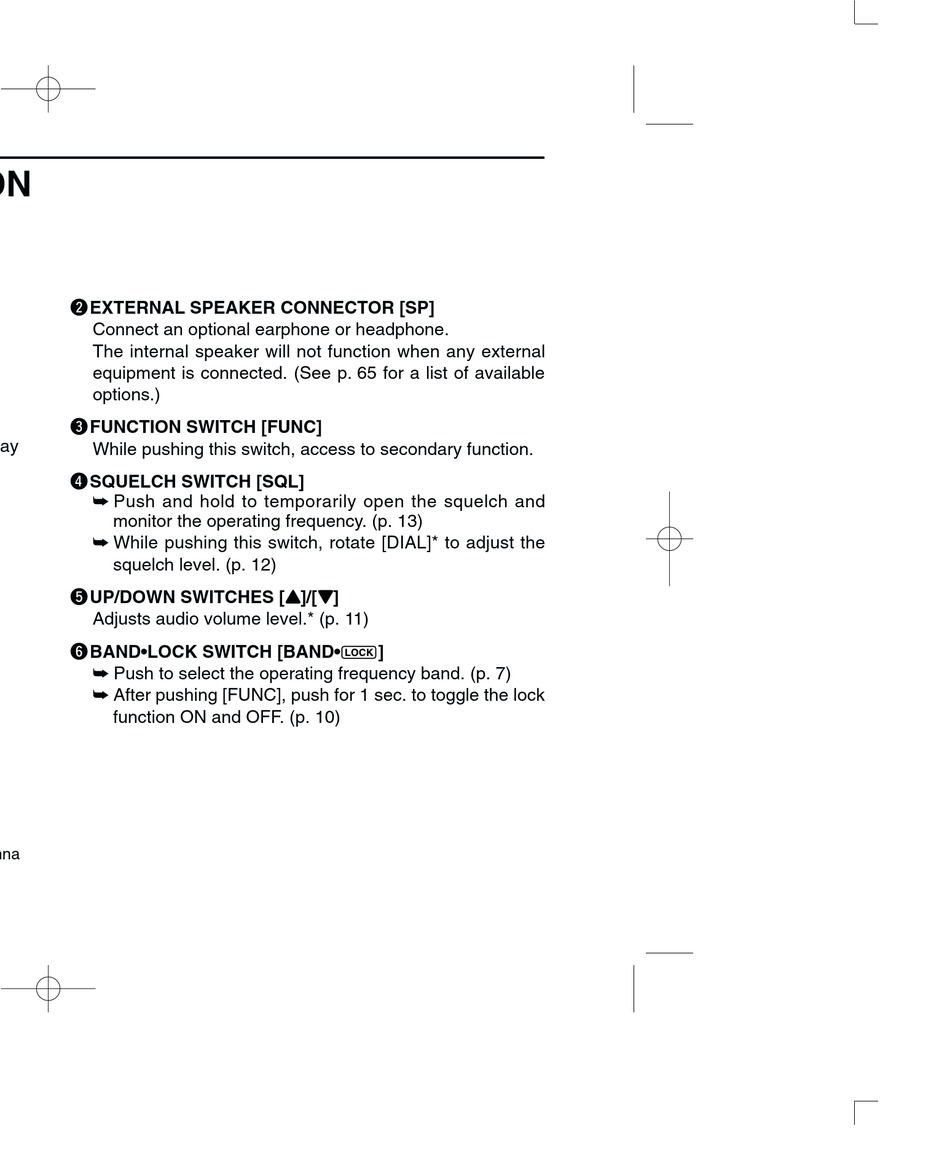

w EXTERNAL SPEAKER CONNECTOR [SP]
Connect an optional earphone or headphone.
The internal speaker will not function when any external
equipment is connected. (See p. 65 for a list of available
u
options.)
e FUNCTION SWITCH [FUNC]
Function display
While pushing this switch, access to secondary function.
(pgs 3, 4)
r SQUELCH SWITCH [SQL]
➥ Push and hold to temporarily open the squelch and
i
➥ While pushing this switch, rotate [DIAL]* to adjust the
o
!0
t UP/DOWN SWITCHES [Y Y ]/[Z Z ]
!1
Adjusts audio volume level.* (p. 11)
!2
y BAND•LOCK SWITCH [BAND•
Speaker
➥ Push to select the operating frequency band. (p. 7)
➥ After pushing [FUNC], push for 1 sec. to toggle the lock
monitor the operating frequency. (p. 13)
squelch level. (p. 12)
function ON and OFF. (p. 10)
]
