I Copying Memory Contents - Icom IC-R5 Instruction Manual

5
MEMORY CHANNELS

I Copying memory contents

This function transfers a memory channel's contents to VFO
(or another memory channel). This is useful when searching
for signals around a memory channel frequency and for re-
calling the offset frequency, subaudible tone frequency etc.
D Memory➪VFO
q Select the memory channel to be copied.
➥ Push [V/M•S.MW•~] to select memory mode, then ro-
tate [DIAL] to select the desired memory channel.
• Select the bank channel with [BAND•
sired.
wPush [V/M•S.MW•~] for 1 sec. to select select memory
write condition.
• 1 short and 1 long beep sound.
• " " indicator memory channel number blink.
e Rotate [DIAL] to select "VF."
r Push [V/M•S.MW•~] for 1 sec. again.
• VFO mode is selected automatically.
[EXAMPLE]: Copying channel 20 to 51.
Select memory channel
FM DUP SQL T
21
] and [DIAL], if de-
Push for 1 sec.
FM DUP SQL T
Pushing [V/M•S.MW•~] for 2 sec. at the step w, can
also be copied the memory contents to VFO. In this case,
the steps e and r are not necessary.

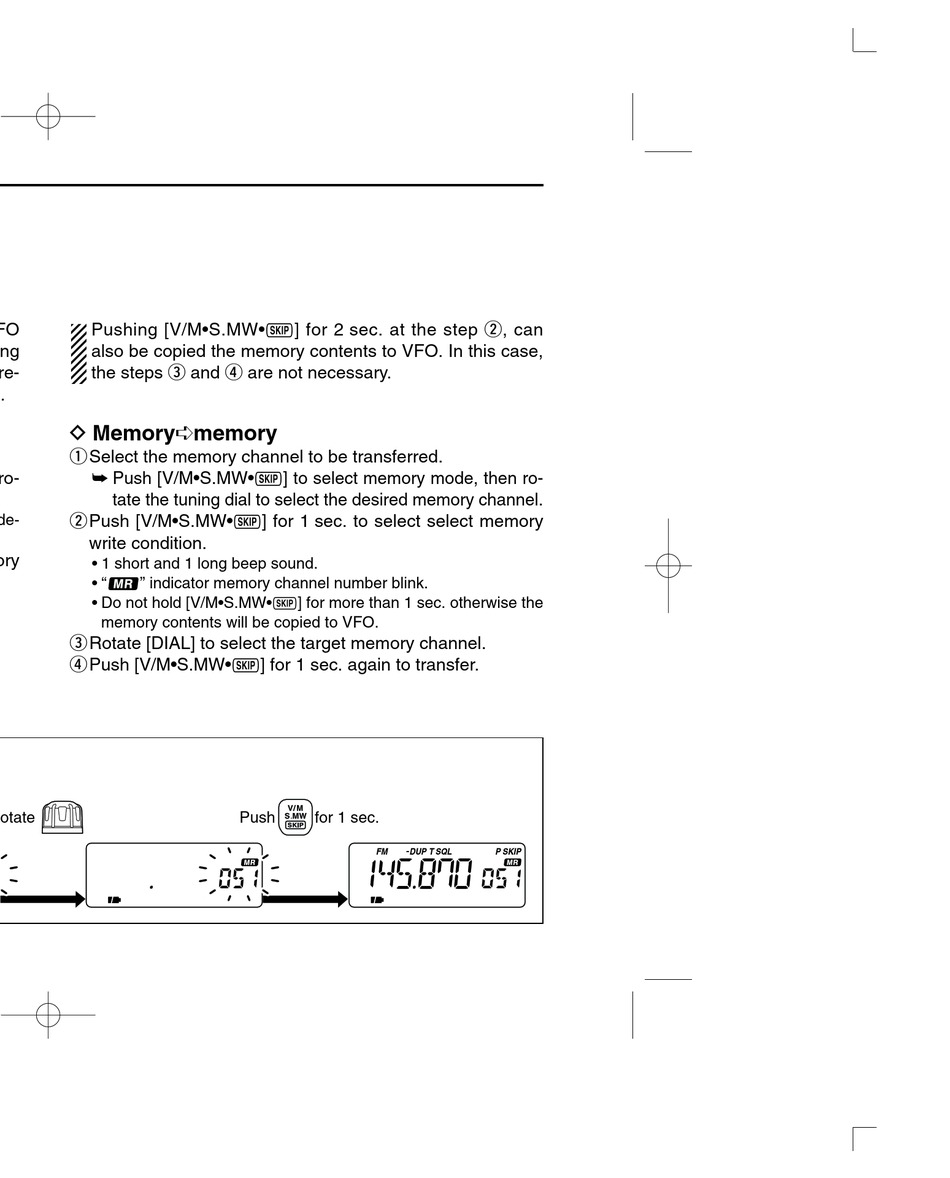

D Memory➪memory
q Select the memory channel to be transferred.
➥ Push [V/M•S.MW•~] to select memory mode, then ro-
tate the tuning dial to select the desired memory channel.
wPush [V/M•S.MW•~] for 1 sec. to select select memory
write condition.
• 1 short and 1 long beep sound.
• " " indicator memory channel number blink.
• Do not hold [V/M•S.MW•~] for more than 1 sec. otherwise the
memory contents will be copied to VFO.
e Rotate [DIAL] to select the target memory channel.
r Push [V/M•S.MW•~] for 1 sec. again to transfer.
Rotate Push for 1 sec.
FM DUP SQL T P SKIP
