I When install into system rack

I Rubber feet attachment

q
w

I Grounding

• Cross section

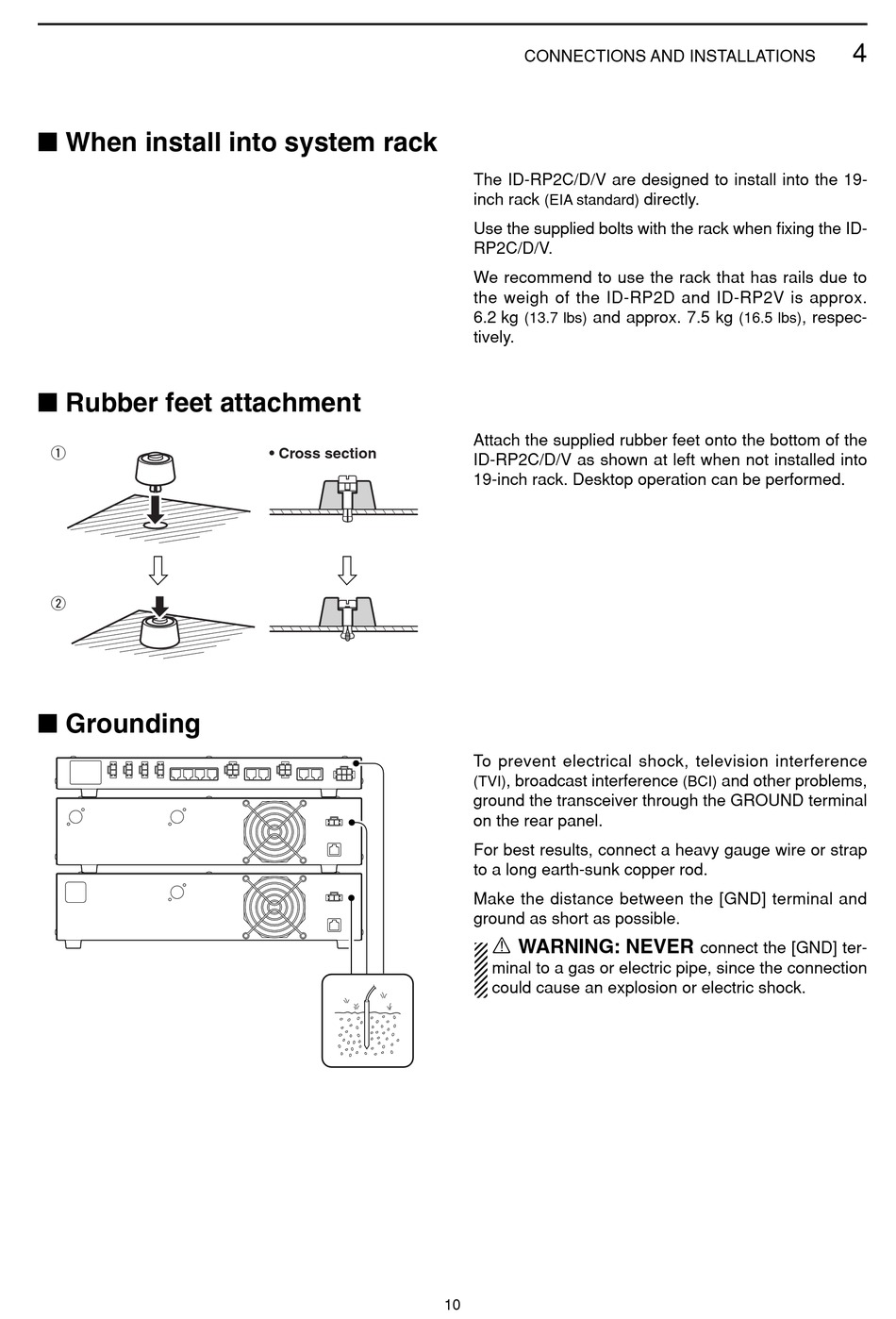

CONNECTIONS AND INSTALLATIONS
The ID-RP2C/D/V are designed to install into the 19-
inch rack
(EIA standard)
Use the supplied bolts with the rack when fixing the ID-
RP2C/D/V.
We recommend to use the rack that has rails due to
the weigh of the ID-RP2D and ID-RP2V is approx.
6.2 kg and approx. 7.5 kg
(13.7 lbs)
tively.
Attach the supplied rubber feet onto the bottom of the
ID-RP2C/D/V as shown at left when not installed into
19-inch rack. Desktop operation can be performed.
To prevent electrical shock, television interference
, broadcast interference
(TVI)
ground the transceiver through the GROUND terminal
on the rear panel.
For best results, connect a heavy gauge wire or strap
to a long earth-sunk copper rod.
Make the distance between the [GND] terminal and
ground as short as possible.
R WARNING: NEVER
minal to a gas or electric pipe, since the connection
could cause an explosion or electric shock.
10
directly.
, respec-
(16.5 lbs)
and other problems,
(BCI)
connect the [GND] ter-
4
