Icom ID-RP2 Instruction Manual page 18

4
CONNECTIONS AND INSTALLATIONS
Pole clamp
Element
holder
Pole
(32–60mm)
Bolts (M8)
Pole clamp
Pole clamp
Pole stopper
Pole (Supplied item)
Element
Check the
orientation
Spring
washer (M8)
Nut
(M8)

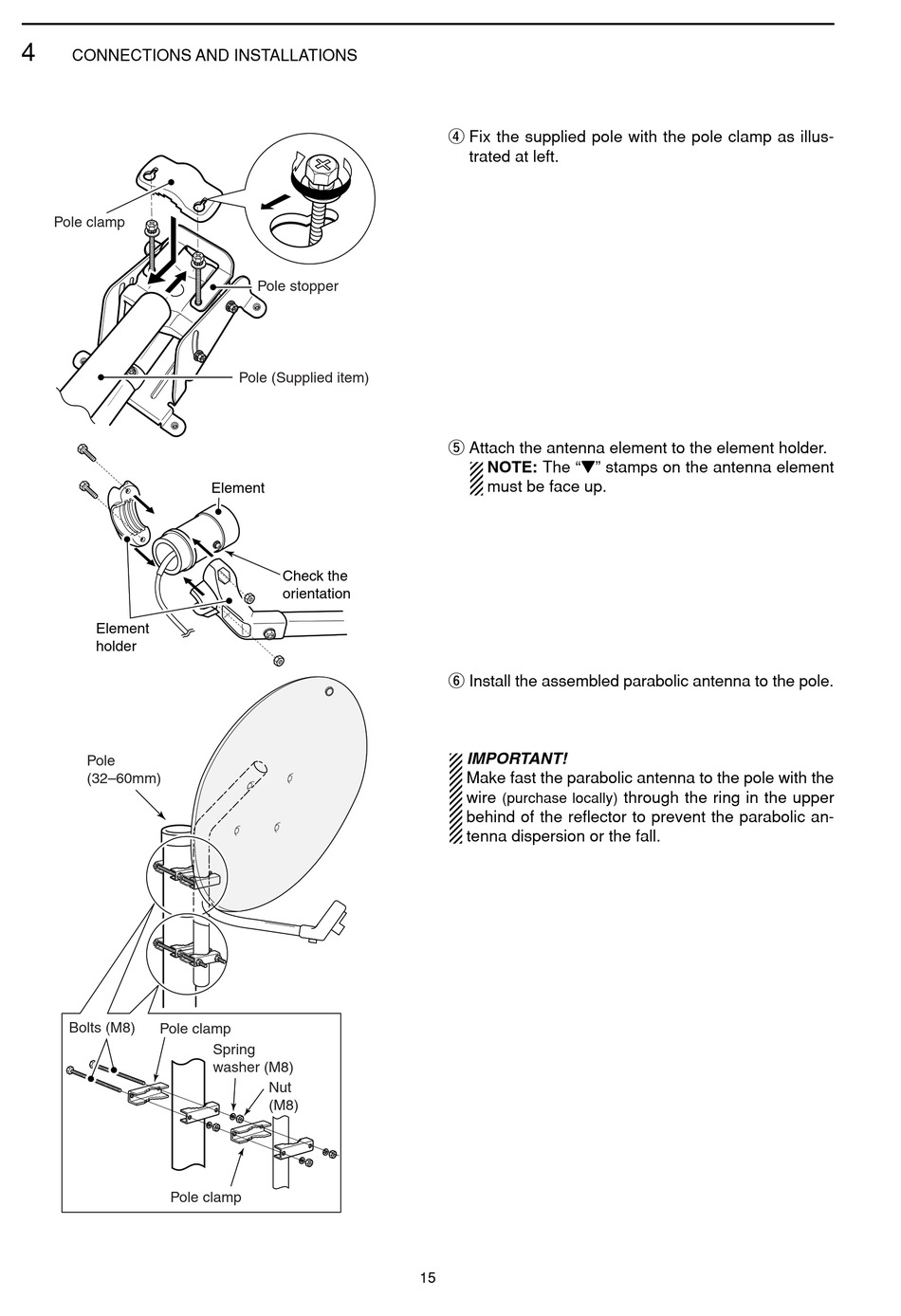

r Fix the supplied pole with the pole clamp as illus-
trated at left.
t Attach the antenna element to the element holder.
NOTE: The "Z" stamps on the antenna element
must be face up.
y Install the assembled parabolic antenna to the pole.
IMPORTANT!
Make fast the parabolic antenna to the pole with the
wire
(purchase locally)
behind of the reflector to prevent the parabolic an-
tenna dispersion or the fall.
15
through the ring in the upper
