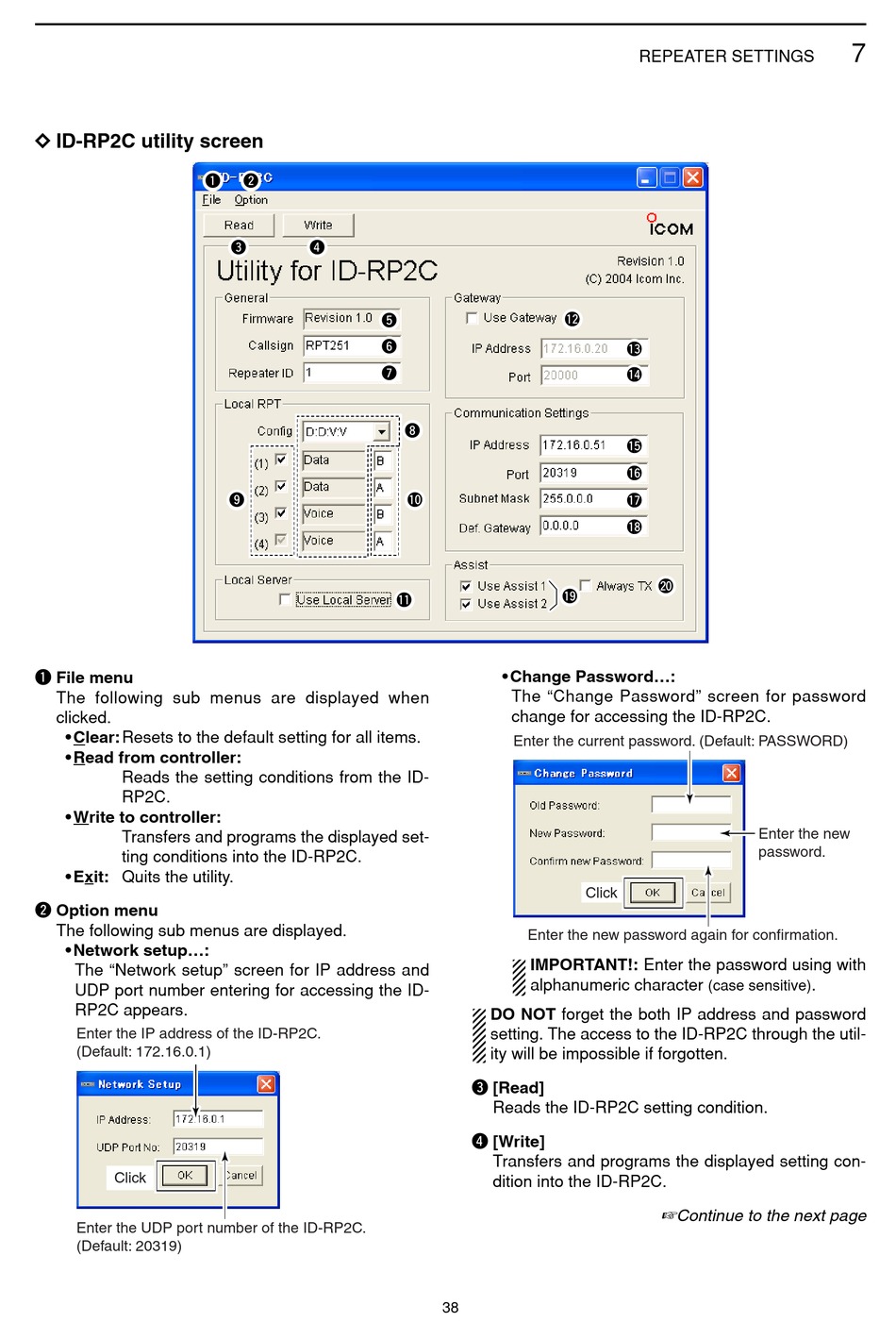

D D ID-RP2C utility screen
q File menu
The following sub menus are displayed when
clicked.
• Clear:Resets to the default setting for all items.
• Read from controller:
Reads the setting conditions from the ID-
RP2C.
• Write to controller:
Transfers and programs the displayed set-
ting conditions into the ID-RP2C.
• Exit: Quits the utility.
w Option menu
The following sub menus are displayed.
• Network setup...:
The "Network setup" screen for IP address and
UDP port number entering for accessing the ID-
RP2C appears.
Enter the IP address of the ID-RP2C.
(Default: 172.16.0.1)
Click
Enter the UDP port number of the ID-RP2C.
(Default: 20319)
q w
e r
o
t
y
u
i
!0
!1
• Change Password...:
The "Change Password" screen for password
change for accessing the ID-RP2C.
Enter the current password. (Default: PASSWORD)
Enter the new password again for confirmation.
IMPORTANT!: Enter the password using with
alphanumeric character
DO NOT forget the both IP address and password
setting. The access to the ID-RP2C through the util-
ity will be impossible if forgotten.
e [Read]
Reads the ID-RP2C setting condition.
r [Write]
Transfers and programs the displayed setting con-
dition into the ID-RP2C.
38
REPEATER SETTINGS
!2
!3
!4
!5
!6
!7
!8
@0
!9
Click
(case sensitive)
Continue to the next page
7
Enter the new
password.
.
