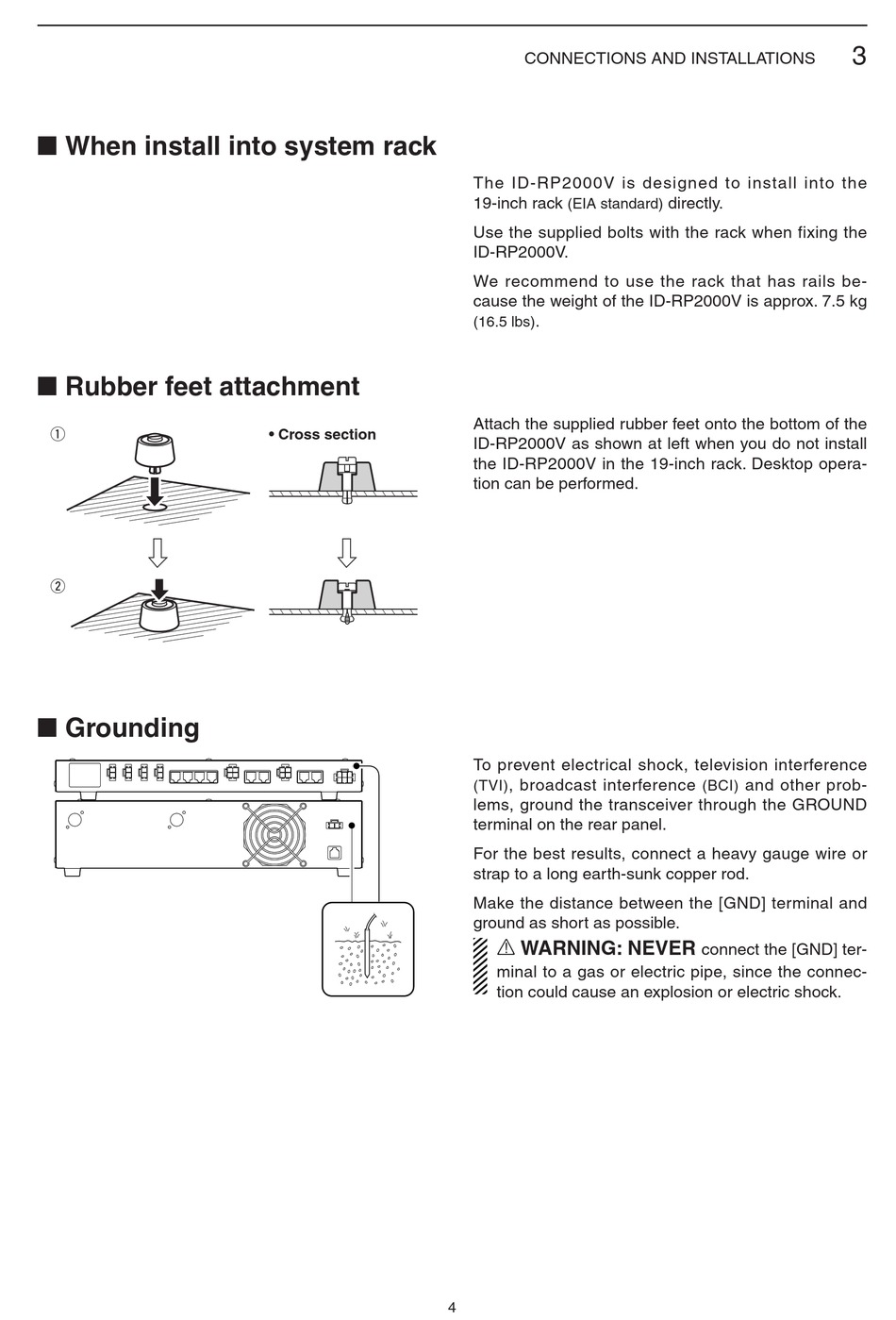

■ When install into system rack

■ Rubber feet attachment

q
w

■ Grounding

• Cross section
CONNECTIONS AND INSTALLATIONS
The ID-RP2000V is designed to install into the
19-inch rack
(EIA standard)
Use the supplied bolts with the rack when fixing the
ID-RP2000V.
We recommend to use the rack that has rails be-
cause the weight of the ID-RP2000V is approx. 7.5 kg
.
(16.5 lbs)
Attach the supplied rubber feet onto the bottom of the
ID-RP2000V as shown at left when you do not install
the ID-RP2000V in the 19-inch rack. Desktop opera-
tion can be performed.
To prevent electrical shock, television interference
, broadcast interference
(TVI)
lems, ground the transceiver through the GROUND
terminal on the rear panel.
For the best results, connect a heavy gauge wire or
strap to a long earth-sunk copper rod.
Make the distance between the [GND] terminal and
ground as short as possible.
R WARNING: NEVER
minal to a gas or electric pipe, since the connec-
tion could cause an explosion or electric shock.
4
directly.
and other prob-
(BCI)
connect the [GND] ter-
3
