I Charging Connections - Icom IC-T81A Instruction Manual

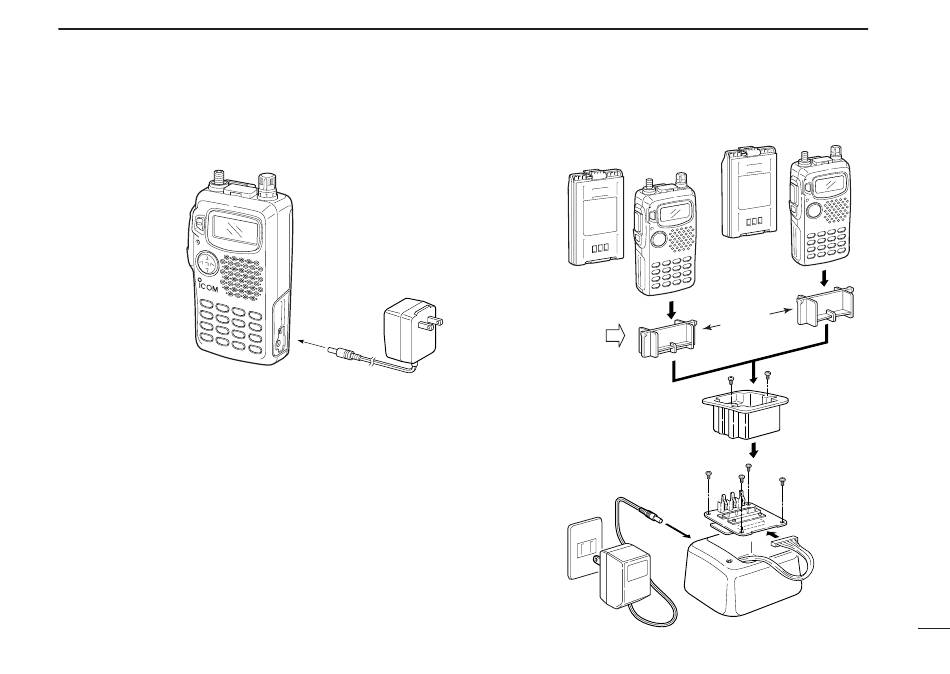

I Charging connections

D Regular charging
Attach the sup-
plied or optional
battery pack;
then, connect the
supplied* wall
charger via an AC
outlet as shown at
right.
*Optional for ver-
sions which include
a battery case.
D Rapid charging with the BC-119
➀
Fix the optional AD-88
TERMINAL PC BOARD FOR CHARGER
into the BC-119 with the 4 supplied screws.
➁
Insert the optional AD-87A
ing slot of the BC-119.
➂
Insert the optional AD-87B
(check orientation).
➃
Insert the battery pack, either by itself or attached to the
transceiver, into the whole assembly for charging (see
right).
Charging period:
15 hours
Wall charger
To
[DC13.5V]
into the charg-
CHARGE ADAPTER
into AD-87A
CHARGE ADAPTER
BATTERY PACKS AND CHARGING
Charging periods: 1 hour (w/BP-198 or BP-199)
1.5 hours (w/BP-200)
Check orientation
for correct charging
3
AD-87B
(optional)
AD-87A
(optional)
AD-88
(optional)
BC-119
(optional)
