3

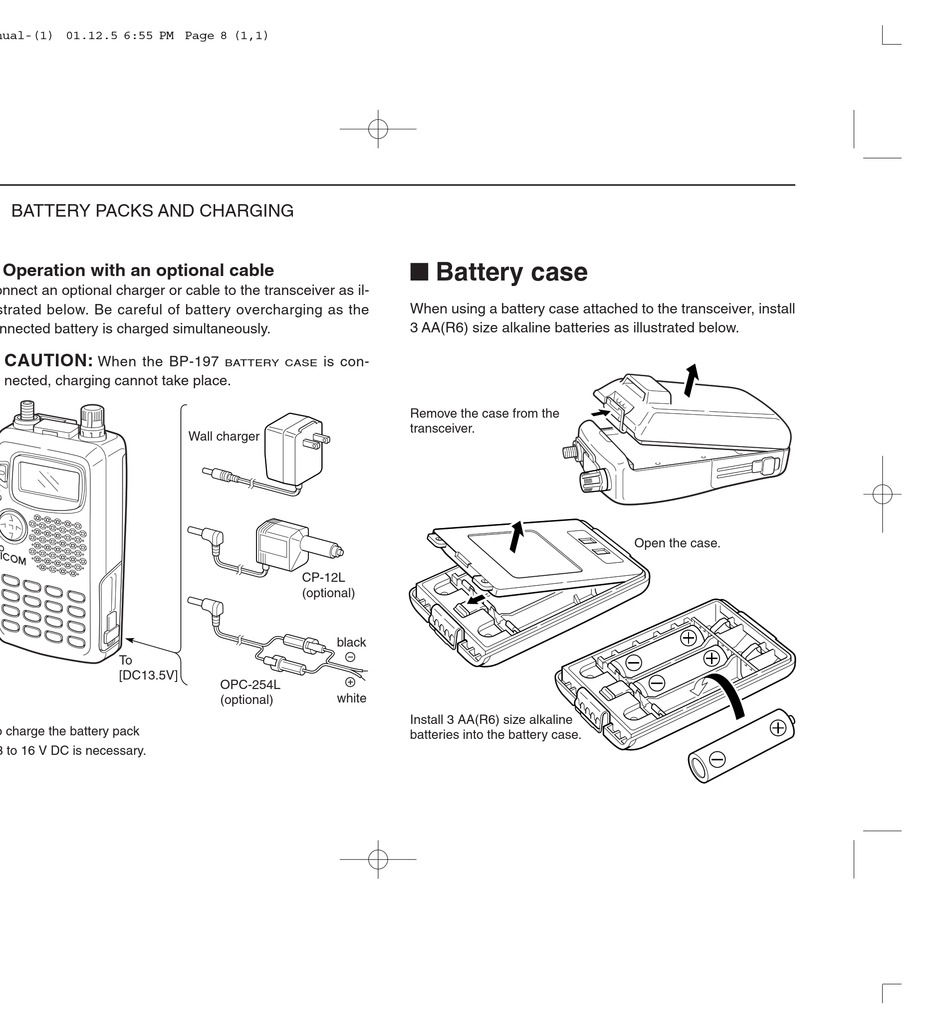

BATTERY PACKS AND CHARGING
D Operation with an optional cable
Connect an optional charger or cable to the transceiver as il-
lustrated below. Be careful of battery overcharging as the
connected battery is charged simultaneously.
u CAUTION:
When the BP-197
nected, charging cannot take place.
*To charge the battery pack
13 to 16 V DC is necessary.
8
BATTERY CASE
Wall charger
To
[DC13.5V]
OPC-254L
(optional)

I Battery case

When using a battery case attached to the transceiver, install
3 AA(R6) size alkaline batteries as illustrated below.
is con-
Remove the case from the
transceiver.
CP-12L
(optional)
black
white
Install 3 AA(R6) size alkaline
batteries into the battery case.
Open the case.
