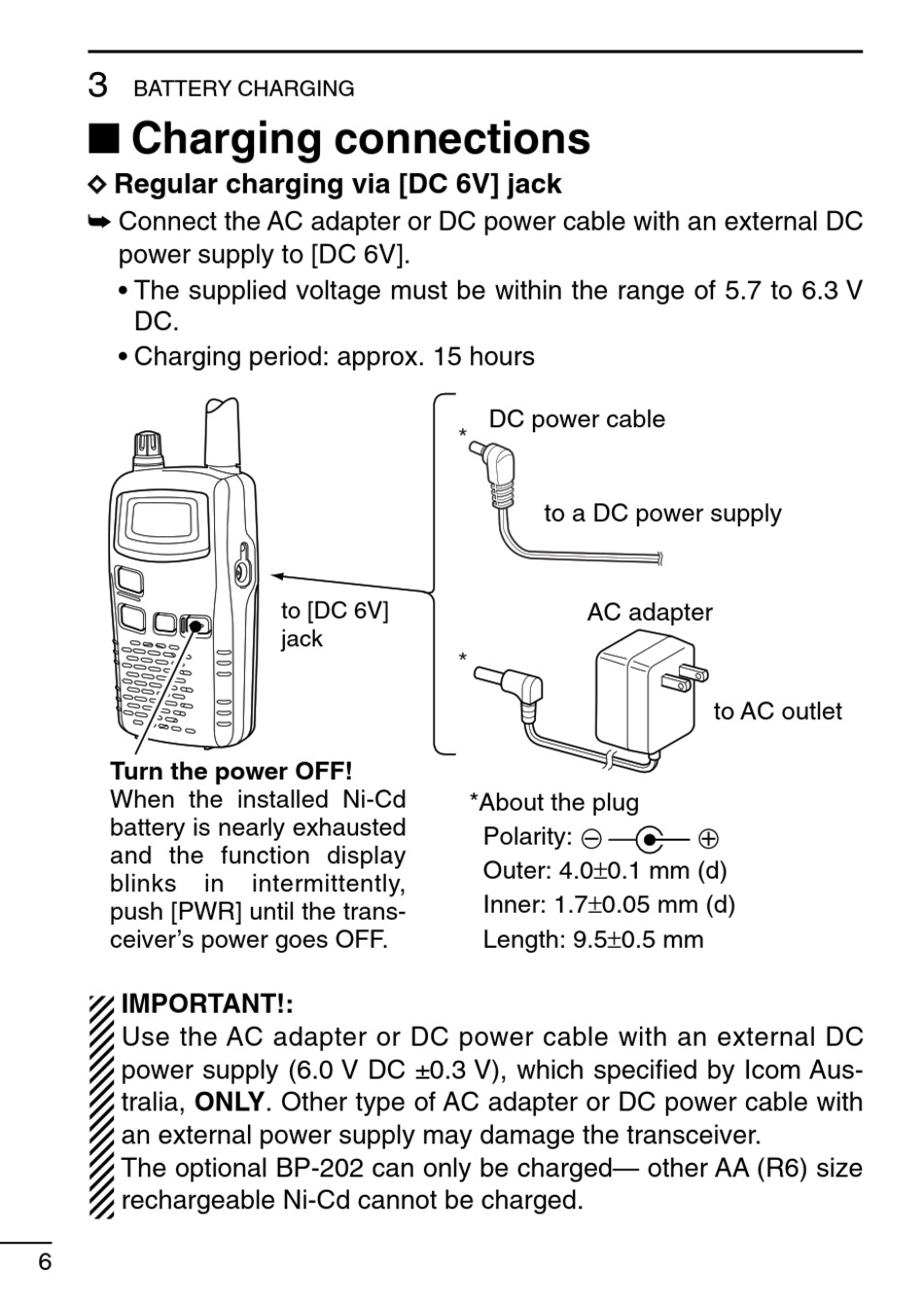

BATTERY CHARGING

I Charging connections

D D
Regular charging via [DC 6V] jack
➥ Connect the AC adapter or DC power cable with an external DC
power supply to [DC 6V].
• The supplied voltage must be within the range of 5.7 to 6.3 V
DC.
• Charging period: approx. 15 hours
Turn the power OFF!
When the installed Ni-Cd
battery is nearly exhausted
and the function display
blinks in
push [PWR] until the trans-
ceiver's power goes OFF.
IMPORTANT!:
Use the AC adapter or DC power cable with an external DC
power supply (6.0 V DC ±0.3 V), which specified by Icom Aus-
tralia, ONLY. Other type of AC adapter or DC power cable with
an external power supply may damage the transceiver.
The optional BP-202 can only be charged— other AA (R6) size
rechargeable Ni-Cd cannot be charged.
6
to [DC 6V]
jack
intermittently,
DC power cable
*
to a DC power supply
AC adapter
*
*About the plug
_
Polarity:
Outer: 4.0±0.1 mm (d)
Inner: 1.7±0.05 mm (d)
Length: 9.5±0.5 mm
to AC outlet
+
