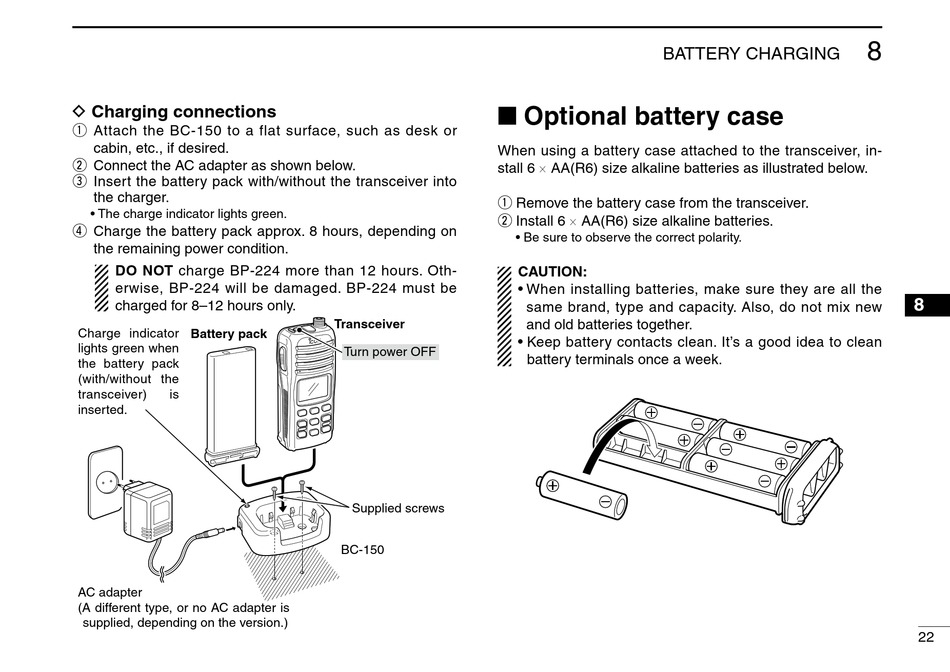

D Charging connections
q Attach the BC-150 to a flat surface, such as desk or
cabn, etc., f desred.
w Connect the AC adapter as shown below.
e Insert the battery pack wth/wthout the transcever nto
the charger.
• The charge ndcator lghts green.
r Charge the battery pack approx. 8 hours, dependng on
the remanng power condton.
DO NOT charge BP-224 more than 12 hours. Oth-
erwse, BP-224 wll be damaged. BP-224 must be
charged for 8–12 hours only.
Charge ndcator
Battery pack
lghts green when
the battery pack
(wth/wthout the
transcever) s
nserted.
AC adapter
(A dfferent type, or no AC adapter s
suppled, dependng on the verson.)

■ Optional battery case

When usng a battery case attached to the transcever, n-
stall 6 × AA(R6) sze alkalne batteres as llustrated below.
q Remove the battery case from the transcever.
w Install 6 × AA(R6) sze alkalne batteres.
Transceiver
Turn power OFF
Suppled screws
BC-150
BATTERY CHARGING
• Be sure to observe the correct polarty.
CAUTION:
• When nstallng batteres, make sure they are all the
same brand, type and capacty. Also, do not mx new
and old batteres together.
• Keep battery contacts clean. It's a good dea to clean
battery termnals once a week.
