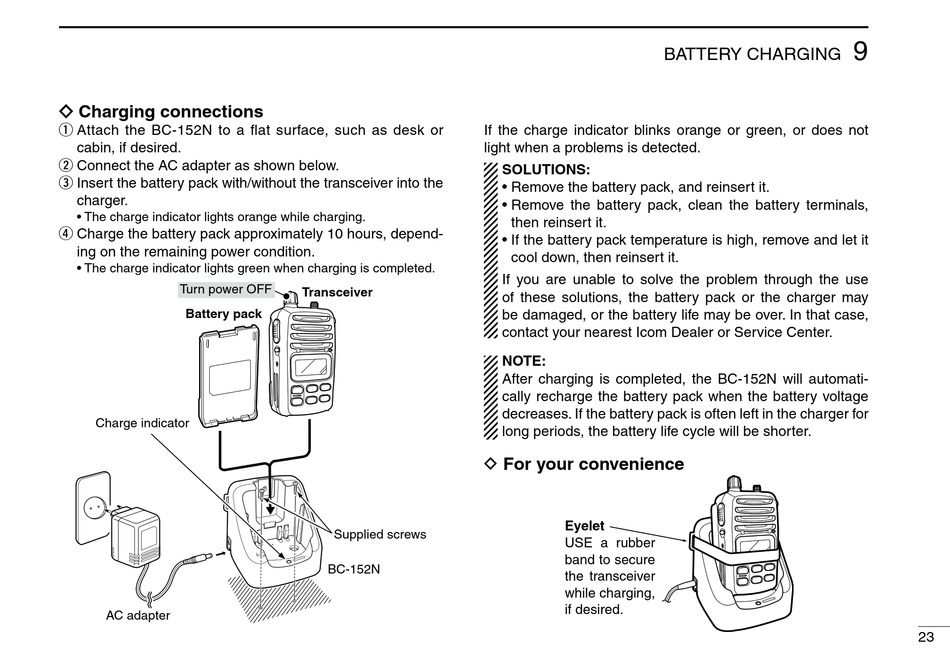

ï Charging connections
q Attach the BC-152N to a flat surface, such as desk or
cabin, if desired.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights orange while charging.
r Charge the battery pack approximately 10 hours, depend-
ing on the remaining power condition.
• The charge indicator lights green when charging is completed.
Turn power OFF
Battery pack
Charge indicator
AC adapter
Transceiver
Supplied screws
BC-152N
BATTERY CHARGING
If the charge indicator blinks orange or green, or does not
light when a problems is detected.
SOLUTIONS:
• Remove the battery pack, and reinsert it.
• Remove the battery pack, clean the battery terminals,
then reinsert it.
• If the battery pack temperature is high, remove and let it
cool down, then reinsert it.
If you are unable to solve the problem through the use
of these solutions, the battery pack or the charger may
be damaged, or the battery life may be over. In that case,
contact your nearest Icom Dealer or Service Center.
NOTE:
After charging is completed, the BC-152N will automati-
cally recharge the battery pack when the battery voltage
decreases. If the battery pack is often left in the charger for
long periods, the battery life cycle will be shorter.
D For your convenience
Eyelet
USE a rubber
band to secure
the transceiver
while charging,
if desired.
9
23
