9
BATTERY CHARGING

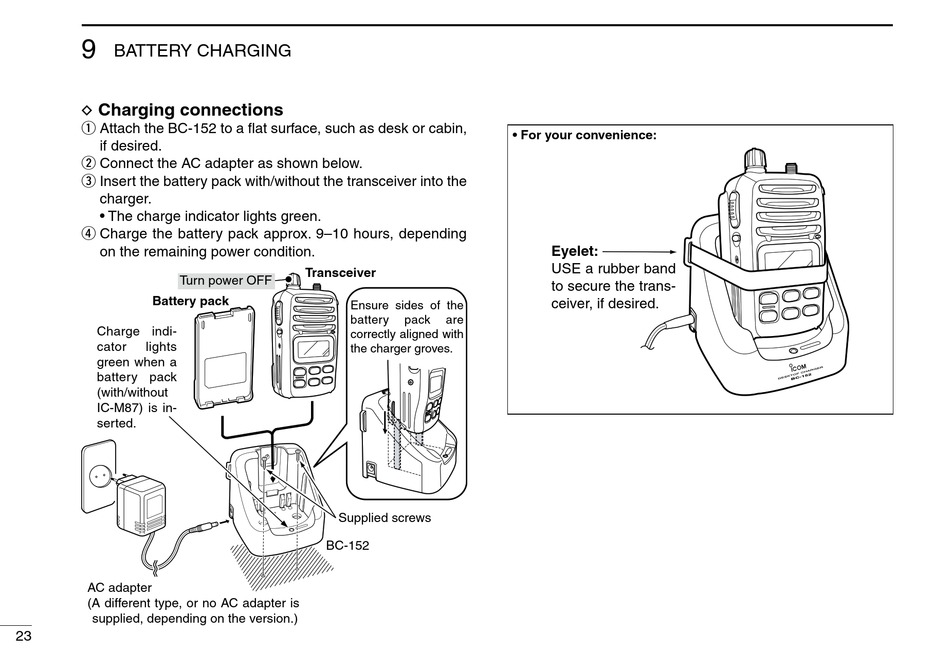

Charging connections

D
q Attach the BC-152 to a flat surface, such as desk or cabin,
if desired.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
r Charge the battery pack approx. 9–10 hours, depending
on the remaining power condition.
Turn power OFF
Battery pack
Charge indi-
cator lights
green when a
battery pack
(with/without
IC-M87) is in-
serted.
AC adapter
(A different type, or no AC adapter is
supplied, depending on the version.)
23
Transceiver
Ensure sides of the
battery pack are
correctly aligned with
the charger groves.
Supplied screws
BC-152
• For your convenience:
Eyelet:
USE a rubber band
to secure the trans-
ceiver, if desired.
