In Use

If a port is in use in the corresponding map on the TSU 100/
600, it will be unavailable for use in the Full Drop and Insert
map. See Figure 3-8.

DI Map Conflict

If a port that is in use by the Full Drop and Insert is added to
the NI map of the TSU 100/600, a conflict message is
displayed. The DS0s on the Full Drop and Insert that were
mapped to that port will be changed to IDLE. See Figure 3-9.
The DI MAP CONFLICT message appears in the TSU 100/600
standard DS0 map configuration when APPLY MAP is selected.
The message indicates that the D & I map has been modified.
Drop and Insert Option Module User Manual

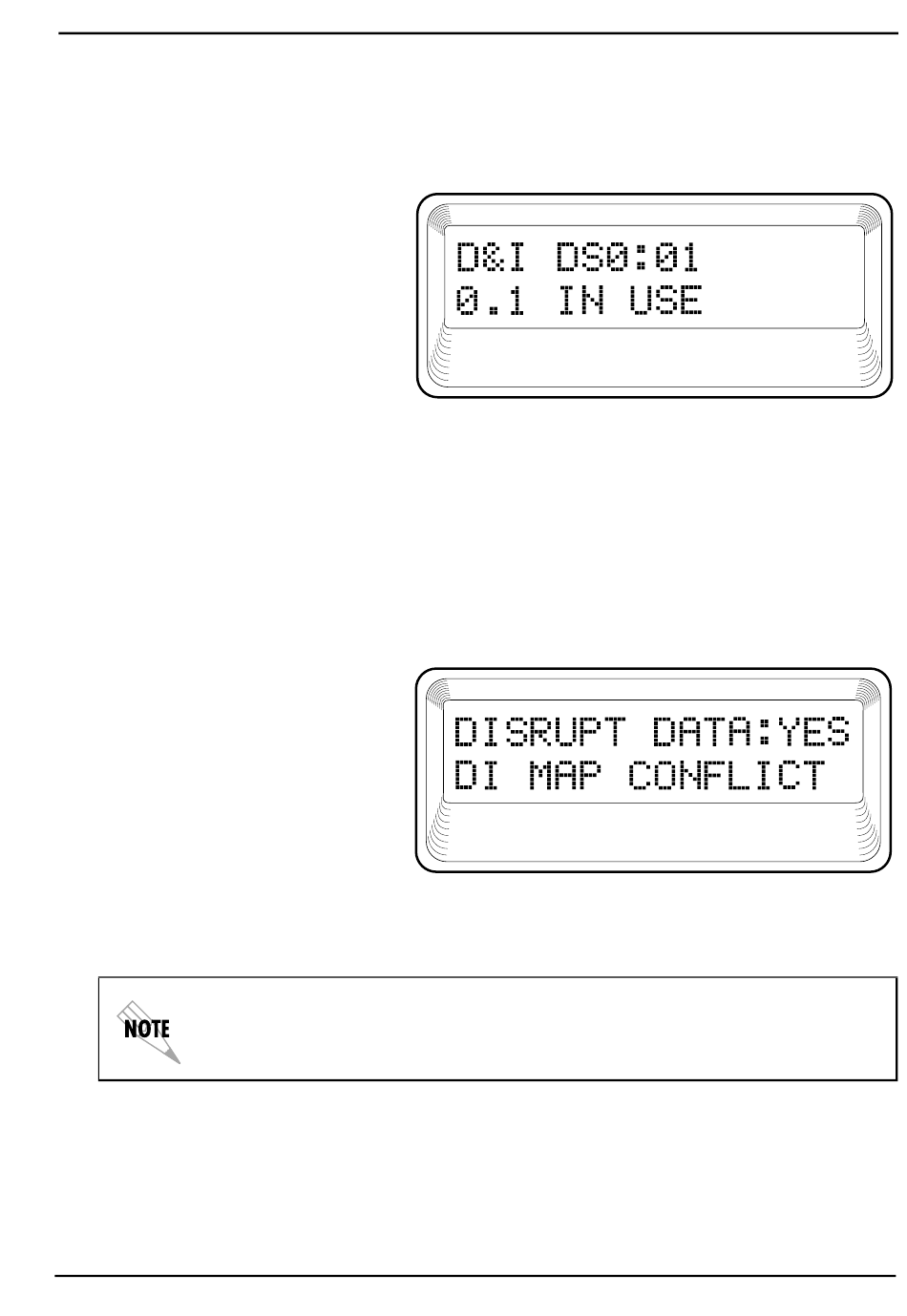

Figure 3-8. In Use Port Display

Figure 3-9. DI Map Conflict Display
