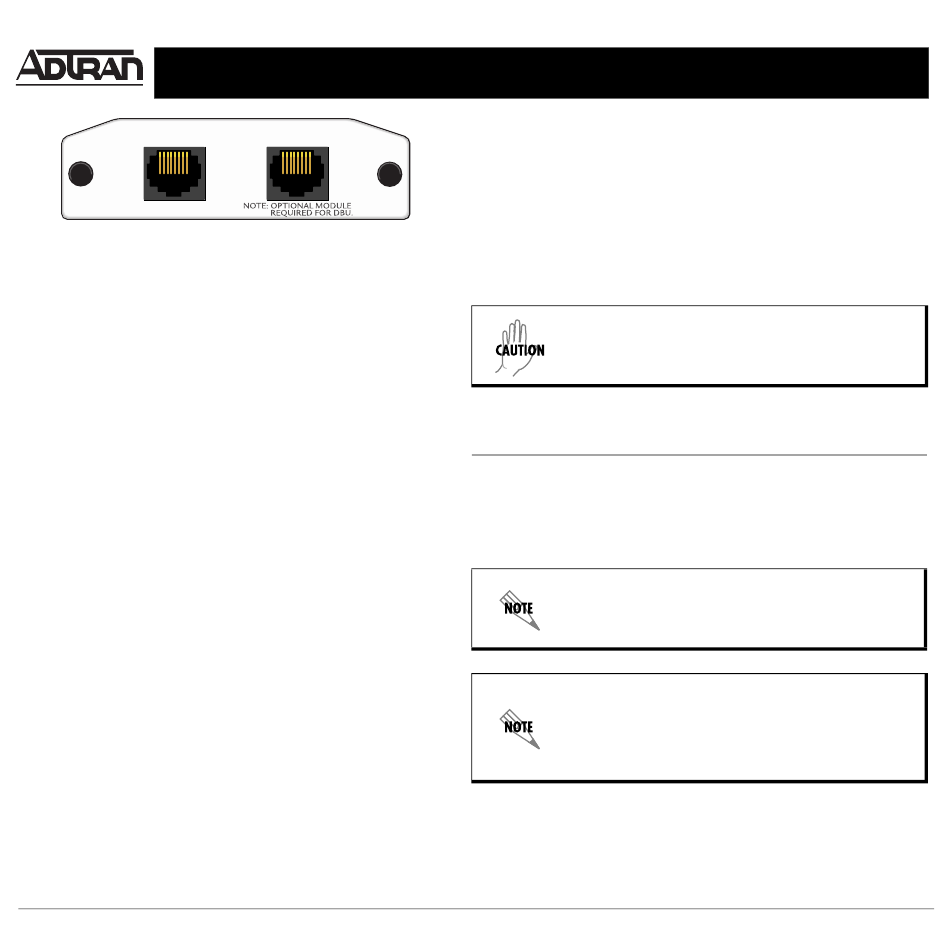

ADTRAN NetVanta SHDSL Quick Start Manual

®

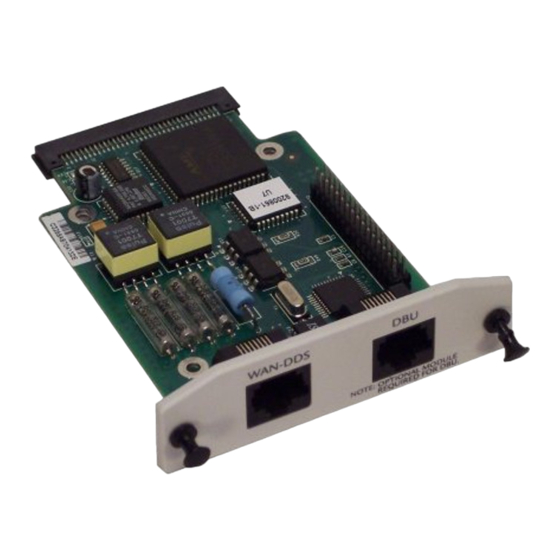

NetVanta SHDSL Network Interface Module (NIM)
Quick Start Guide
AN-SHDSL
S
PECIFICATIONS
Operating Modes Line termination (CO), network termination (CPE)
SHDSL Interface Supported Standards: ITU-T G.991.2 SHDSL
Line Rate: 200 to 2312 kbps in 64k increments
Line Code: TC-PAM
Connector: RJ-45
Clock Source CO Operating Mode: Internal
CPE Operating Mode: Network
Diagnostics
Test Pattern Generation and Detection: 2
Network loopbacks (local and remote)
Alarm generation and detection
Programmable alarm threshold settings for loop
attenuation and signal-to-noise ratio margin
Compliance FCC Part 15 Class A, EN 55022 Class A,
EN 55024, EN 61000-3-2, EN 61000-3-3
AS/ACIF S043
EN 60950, AS/NZS 60950
Physical Dimensions: 2.75-inch W x 4.25-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Quick Start Guide, 61200867L1-13C, July 2005
DBU
15
- 1
ADTRAN Technical Support +1-256-963-8716
For more detailed documentation, visit us online at www.adtran.com.
I I
NSTALLATION NSTRUCTIONS
1. Remove power from the base unit.
2. Slide the option module into the option slot until the module is firmly
seated against the chassis.
3. Secure the pins at both edges of the module.
4. Connect the cables to the associated device(s).
5. Complete installation of the base unit.
6. Restore power to the base unit.
NetVanta modules should be installed only in
NetVanta Series products.
WAN-SHDSL N
ETWORK
Pin Name Description
1-3 — Unused
4 T Network - Tip
5 R Network - Ring
6-8 — Unused
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
For a description of the DBU pinouts, refer to the
Quick Start Guide included with your DIM shipment.
Important: For additional details on product features,
specifications, installation, and safety, refer to the
appropriate Hardware Installation Guide on the
ADTRAN OS System Documentation CD shipped
with the base unit and available online at
www.adtran.com.
P/N 1200867L1
(RJ-45) P
INOUTS
Copyright © 2005 ADTRAN, All Rights Reserved
