- Page 1 Drop and Insert Option Module Part Number 1200065L1-1 User Manual 6120065L1-1B September 1999...
- Page 2 Trademarks: MEGACOM is a registered trademark of AT&T SLC96 is a registered trademark of AT&T 901 Explorer Boulevard P.O. Box 140000 Huntsville, AL 35814-4000 (256) 963-8000 © 1999 ADTRAN, Inc. All Rights Reserved. Printed in U.S.A.
- Page 3 ADTRAN Year 2000 (Y2K) Readiness Disclosure ADTRAN has established a Year 2000 program to ensure that our products will correctly function in the new millennium. ADTRAN warrants that all products meet Y2K specifications regardless of model or revision. Information about ADTRAN’s Y2K compliance program is available at the fol-...
- Page 4 Notes provide additional useful information. Cautions signify information that could prevent service interrup- tion. Warnings provide information that could prevent damage to the equipment or endangerment to human life.
- Page 5 Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip- ment is operated in a commercial environment.
- Page 6 Important Safety Instructions When using your telephone equipment, please follow these basic safety precau- tions to reduce the risk of fire, electrical shock, or personal injury: Do not use this product near water, such as near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
- Page 7 WARRANTY AND CUSTOMER SERVICE ADTRAN will replace or repair this product within five years from the date of shipment if the product does not meet its published specifications or if it fails while in service. For detailed warranty, repair, and return information see the ADTRAN Equipment Warranty and Repair and Return Policy Procedure on the inside back page of this manual.
- Page 8 viii...
-
Page 9: Table Of Contents
Full Drop and Insert Option Module Specifications ......1-3 Physical Description ....................1-4 Chapter 2. Installation .................... 2-1 Unpack and Inspect ....................2-1 Shipped by ADTRAN..................2-1 Provided by Customer ..................2-1 Installing The Option module ................2-1 Placement of the Option Module ..............2-2 Power Connection .................... - Page 10 Table of Contents Passthru ....................3-8 In Use ....................3-9 DI Map Conflict ................... 3-9 Port Utility (PORT UTIL) ................3-10 Port Test ......................3-11 TSU Features used with Full Drop and Insert Options ........3-12 Factory Restore ....................3-12 Run Self Test......................
- Page 11 List of Figures Figure 1-1. D & I Used With Two Separate T1s ..........1-1 Figure 1-2. Full Drop and Insert Option Module ..........1-4 Figure 2-1. Installing Option Module ..............2-2 Figure 3-1. TSU 100 Main Menu ................3-2 Figure 3-2. Port Status Menu Path ...............3-3 Figure 3-3.
- Page 12 List of Figures lxii Drop and Insert Option Module User Manual 61200065L1-1...
- Page 13 List of Tables Table 2-1. Network Pinout Connection .............2-3 61200065L1-1 Drop and Insert Option Module User Manual xiii...
- Page 14 List of Tables Drop and Insert Option Module User Manual 61200421L1-1...
-
Page 15: Chapter 1. Introduction
The Full Drop and Insert (D & I) option module is one of the secondary interface option modules available for use with the ADTRAN TSU 100/600 and provides a second T1 interface. The D & I module is capable of inserting and extracting data on a secondary T1 using a DS0 map, the same as is used for the base TSU 100/600. -
Page 16: Functional Description
Chapter 1. Introduction FUNCTIONAL DESCRIPTION The Full Drop and Insert is designed to fit in the option slot of the TSU 100/600 and is subject to its operation and control. The D & I is configured from the front panel of the TSU 100/ 600 or by an external personal computer (PC) using the optional controlling software T-Watch. -
Page 17: Full Drop And Insert Option Module Specifications
Chapter 1. Introduction • Line build-out settings: -22.5, -15, -7.5, 0, and automatic • Monitor jacks • Line loopback (front panel/remote/in-band) Full Drop and Insert Option Module Specifications The D & I option module conforms to the following specifications: Line rate 1.544 Mbps Capacity 1 to 24 DS0s (can be user configured, con-... -
Page 18: Physical Description

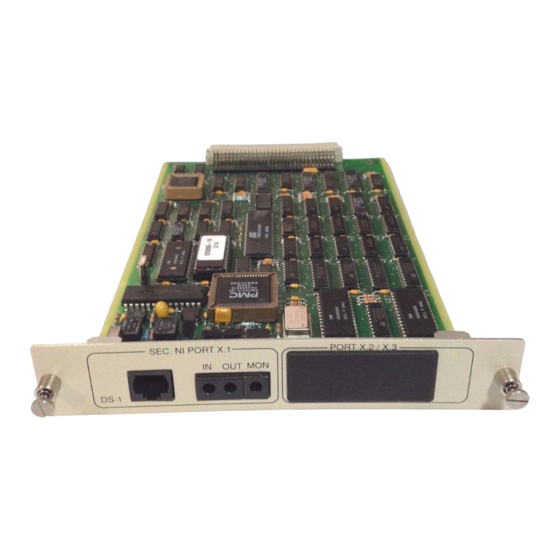

Chapter 1. Introduction PHYSICAL DESCRIPTION The Full Drop and Insert is an option module which plugs into the option slot in the rear of the TSU 100/600. See Figure 1-2. Figure 1-2. Full Drop and Insert Option Module The D & I rear panel includes a plastic plug over a cutout for a V.35 connector. -
Page 19: Chapter 2. Installation
D & I module back for repair or for verification of damage during shipment. Shipped by ADTRAN The following items are included in the ADTRAN shipment: • Full Drop and Insert option module •... -
Page 20: Placement Of The Option Module
Chapter 2. Installation Placement of the Option Module Figure 2-1 represents the action required for proper placement of the option module. Remove coverplate from the TSU 100/600 rear panel. Slide option module into the rear panel until it is positioned firmly against the front of the TSU 100/600. Fasten thumb-screws at both edges of the option module. -
Page 21: Wiring
Chapter 2. Installation Wiring The D & I module offers a single connector for interface to the T1 circuit. The pinout is given in Table 2-1 Network Pinout Connection. The required wiring connection is: Connector Type (USOC) = RJ48C Table 2-1. Network Pinout Connection Name Description R1 RXDATA... -
Page 22: Failed Self Test
Chapter 2. Installation Failed Self Test If the D & I module fails one or more of the self-tests, a message is displayed in the LCD during power up. See TSU 100/600 User Manual. Specific failures of the D & I module are identified in the Failure Message listings in the appendix of this manual. -
Page 23: Chapter 3. Operation
Operation Chapter 3 OVERVIEW The Full Drop and Insert option module is controlled as part of the TSU 100/600 using the same methods as described in the user manual. Refer to the TSU 100/600 User Manual for descriptions of front panel indicators and buttons. -
Page 24: Figure 3-1. Tsu 100 Main Menu
Chapter 3. Operation main menu choices press or a menu number to display Enter the first two submenu items. Use the up and down arrows to place the cursor on the desired item and press to display the first two submenu Enter choices. -
Page 25: Full Drop And Insert Menu Items
Chapter 3. Operation FULL DROP AND INSERT MENU ITEMS The Full Drop and Insert menus are accessed from and operated the same as menus for the TSU 100/600. The D & I items are submenu choices of the TSU 100/600 four main menus, as shown (in bold italics) in Figure 3-1 on page 3-2. -
Page 26: D & I Errors
Chapter 3. Operation accumulated over the last 15 minutes and over the last 24 hours. This data is only available when configured for the ESF network format. With the cursor on main menu item S , activate the TATUS menu with . - Page 27 Chapter 3. Operation Scroll to access the display of the individual report fields, which are as follows. % of Available seconds % of Error free seconds Number of Errored seconds (1 or more errors/sec- ond) Number of Severely Errored Seconds (more than 320 errors/second) Number of Unavailable Seconds (10 or more consec- utive seconds)
-
Page 28: Figure 3-4. D & I Errors Display
Chapter 3. Operation D & I Errors The D & I Errors submenu provides current error information about the T1 connected to the D & I module. There are four different errors, as shown in Figure 3-4. Cyclic redundancy check Bipolar violations Excess zeros Framing errors... -
Page 29: Port Configuration (Port Config)
Chapter 3. Operation Port Configuration (PORT CONFIG) , a submenu of TSU 100/600 main ONFIGURATION menu item C , is used to configure the Full ONFIGURATION Drop and Insert option module. Three submenu items are used to configure the parameters associated with the secondary interface on the Full Drop and Insert. -
Page 30: Map A And Map B
Chapter 3. Operation Map A and Map B Except for the absence of the passthru bit selection the functionality of the map configuration for the Full Drop & Insert are the same as on the TSU 100/600. Refer to the Operation chapter of the TSU 100/600 User Manual. -
Page 31: In Use
Chapter 3. Operation In Use If a port is in use in the corresponding map on the TSU 100/ 600, it will be unavailable for use in the Full Drop and Insert map. See Figure 3-8. Figure 3-8. In Use Port Display DI Map Conflict If a port that is in use by the Full Drop and Insert is added to the NI map of the TSU 100/600, a conflict message is... -
Page 32: Port Utility (Port Util)
Port Utility, a submenu of the TSU 100/600 main menu item Utilities (UTIL) displays the current software revision for each port installed in the unit. This information is required when requesting assistance from ADTRAN Customer Service or when updates are needed. 3) UTIL 7) PORT UTIL FULL D &... -
Page 33: Port Test
Chapter 3. Operation Port Test , a submenu of the TSU 100/600 main menu item , activates tests of the selected data ports. Selecting Full D & I displays the first two of four loopback tests available for this option module. See Figure 3-11. •... -
Page 34: Tsu Features Used With Full Drop And Insert Options
Chapter 3. Operation TSU FEATURES USED WITH FULL DROP AND INSERT OPTIONS In addition to the Full Drop and Insert menu items, two additional menu items of the TSU 100/600 may be operated in conjunction with the D & I option module. These are and R ACTORY ESTORE... -
Page 35: Appendix A. Failure Messages
Failure Messages Appendix A FAILURE MESSAGES FROM SELF TEST The following messages indicate a probable component failure on the Drop and Insert Module: DI EPROM CHKSM EPROM checksum error DI RAM ERROR Static RAM error EEPROM ERROR Map storage error TX MAP ERROR TX mapping RAM failed RX MAP ERROR... - Page 36 Appendix A. Failure Messages Drop and Insert Option Module User Manual 61200065L1-1...
- Page 37 Index ADTRAN Web Site iii Installation 2-1 ADTRAN Y2K Information iii Installing The Option Module 2-1 Power Connection 2-2 Wiring 2-3 Customer Service vii Installing The Option Module 2-1 Customer Service, Warranty vii Interfaces 1-2 D & I Errors 3-6 Map A and Map B 3-8 D &...
- Page 38 Index Port Status 3-3 D & I Errors 3-6 TSU 100 Main Menu, Figure 3-2 Performance Reports 3-3 Port Test 3-11 Port Utility 3-10 Unpack 2-1 Power Connection 2-2 Power-Up 2-3 Product Matrix iii Warranty and Customer Service vii Product Matrix, Y2K information iii Wiring 2-3 repair, and return information vii Y2K Project Line iii...
- Page 39 (800) 615-1176 Sales (800) 827-0807 Post-Sale Support Please contact your local distributor first. If your local distributor cannot help, please contact ADTRAN Technical Support and have the unit serial number available. Technical Support (888) 4ADTRAN Repair and Return If ADTRAN Technical Support determines that a repair is needed, Techni- cal Support will coordinate with the Customer and Product Service (CAPS) department to issue an RMA number.
