NetVanta 950 IAD Octal FXS Access Module
Quick Start Guide
S
Quick Start Guide, 61200791L1-13C, July 2004
PECIFICATIONS
Signaling:
FXS (Foreign Exchange Station) Loop
Start (LS), Ground Start (GS)
Transmission Level: Transmit Gain: -12dB to +6 dB,
0.1 dB steps
Receive Gain: -12dB to +6 dB,
0.1 dB steps
Loop Statistics: Current: 24mA nominal
Range: 2400ft intra-building
Ringing:
5 REN per port (35 REN maximum for
system), 70 VRMS with 20V DC offset -
open circuit, no load.
Balanced, internal, sinusoidal ring
generation
600Ω, 600Ω +2.16 µF, 900Ω,
Impedance:
900Ω +2.16 µF
On-hook battery: 48V nominal
Port Tests: 1 kHz test tone (near-end, far-end
selectable), Ringing, Reverse battery,
Battery, Loopbacks (analog, digital), Tip
open, Transmit signaling bits (0000,
0101, 1010, 1111)

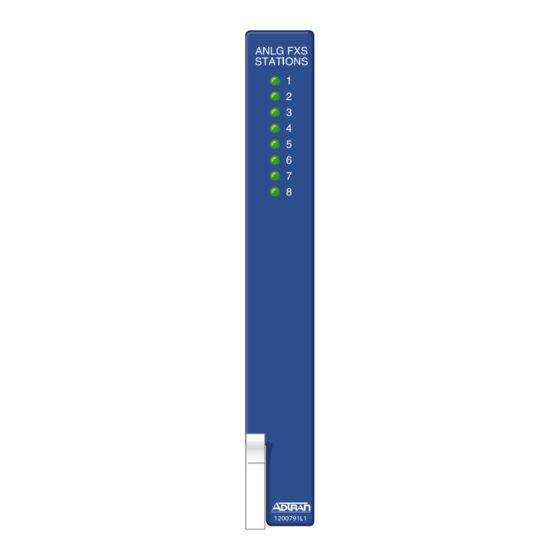

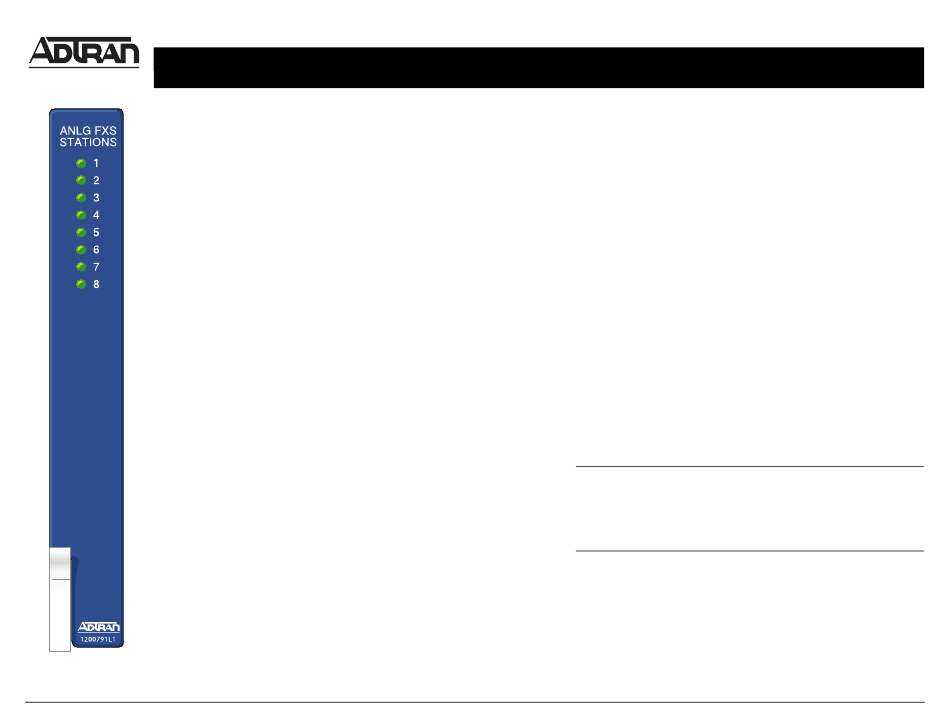

Front Panel LED's: Off: port is on-hook or disabled
Green: port is off-hook
Blinking green: port is ringing
Amber: port is in test
Blinking red: fault condition, port is
disabled for 30 seconds
Environmental: Operating Temperature: 0 ºC to 50 ºC
Storage Temperature: -20 ºC to 70 ºC
Relative Humidity: Up to 95% non-
condensing
Compliance: 60950/UL 60950, Third Edition/CSA
C22.2, No. 60950
FCC Part 15 Class A
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
I I
NSTALLATION NSTRUCTIONS
1. Remove the locking bar.
2. Remove blank panel if installed.
3. Slide the FXS Module into the access slot until the module is
firmly positioned in the chassis.
Note: Press firmly on the top and bottom of the faceplate to insure
a proper fit.
4. Replace the locking bar and secure with a screwdriver. The
locking bar must be attached at all times.
5. Connect the cables to the associated device(s). Note that the
connections for the voice ports are located on the side of the
chassis.
FXS P
INOUT
50-pin female amphenol connectors provide the interconnect wir-
ing for the analog station circuits (FXS ports). Refer to the Net-
vanta 950 IAD Hardware Installation Guide for a detailed
description of the pinout.
C
OMMANDS
answer-supervision {enable| disable*}
Configures answer supervision for the appropriate voice port(s). Answer supervision
(when the far end answers the call) is indicated by using reverse battery polarity. The
NetVanta responds to LSAS (Line Side Answer Supervision) signaling on the T1 for
FXS answer supervision. LSAS signaling is defined as 0100 (for ESF) or 01/00 (for
D4). The FXS Module reverses battery polarity on tip and ring. The carrier must
configure the network T1 for LSAS (if this is not a point to point T1).
dialtone {enable| disable*}
Configures the FXS Module to provide dialtone to the local FXS interface when
dialtone is not provided by the central office switch. Dialtone is only necessary for
E&M applications and em-conversion must be configured.
* Indicates default values
