Chapter 3. Operation
3-8

Map A and Map B

Except for the absence of the passthru bit selection the
functionality of the map configuration for the Full Drop &
Insert are the same as on the TSU 100/600. Refer to the
Operation chapter of the TSU 100/600 User Manual. The screen
for the Full Drop & Insert appears as in Figure 3-6.

Map Coordination

Coordination of maps between the Full Drop and Insert and
the TSU 100/600 is performed automatically.

Passthru

If a DS0 is marked as passthru in the TSU 100/600 map, it is
also marked as passthru in the Full Drop and Insert map.
This marking is not available for change. The display in
Figure 3-7 appears in the LCD.
Drop and Insert Option Module User Manual

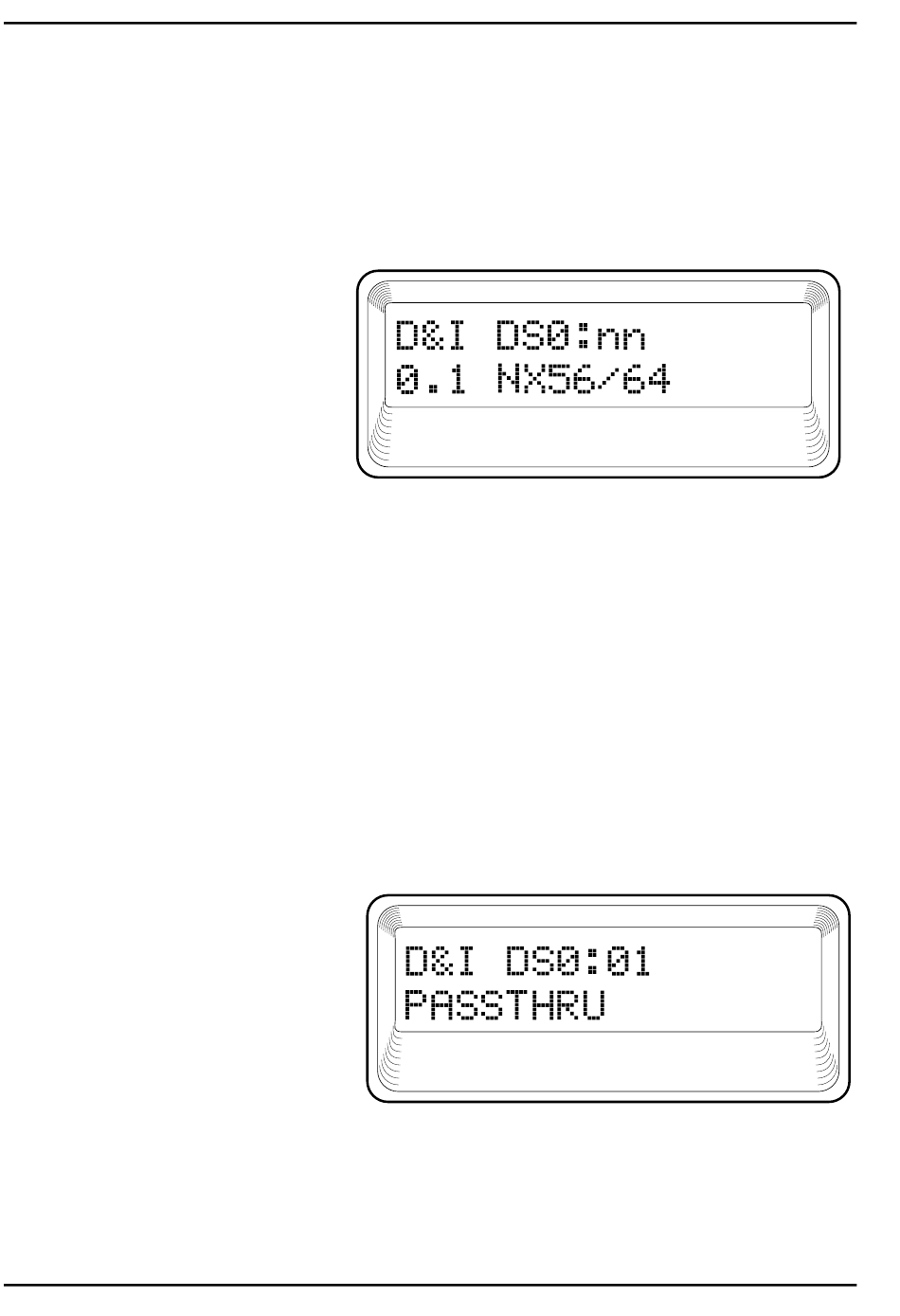

Figure 3-6. DS0 Port Assignment

Figure 3-7. DS0 Passthru Marking

61200065L1-1
