Chapter 2. Installation

Placement of the Option Module

Power Connection

2-2
Figure 2-1 represents the action required for proper
placement of the option module.
1. Remove coverplate from the TSU 100/600 rear panel.
2. Slide option module into the rear panel until it is
positioned firmly against the front of the TSU 100/600.
3. Fasten thumb-screws at both edges of the option module.
Full Drop and Insert option module can only be used in slot 6 of
the TSU 600.
TSU 100/600
Each Full Drop and Insert option module derives power from
the base TSU 100/600 unit. Power to the TSU 100/600 is
supplied by a captive eight-foot power cord.
Drop and Insert Option Module User Manual

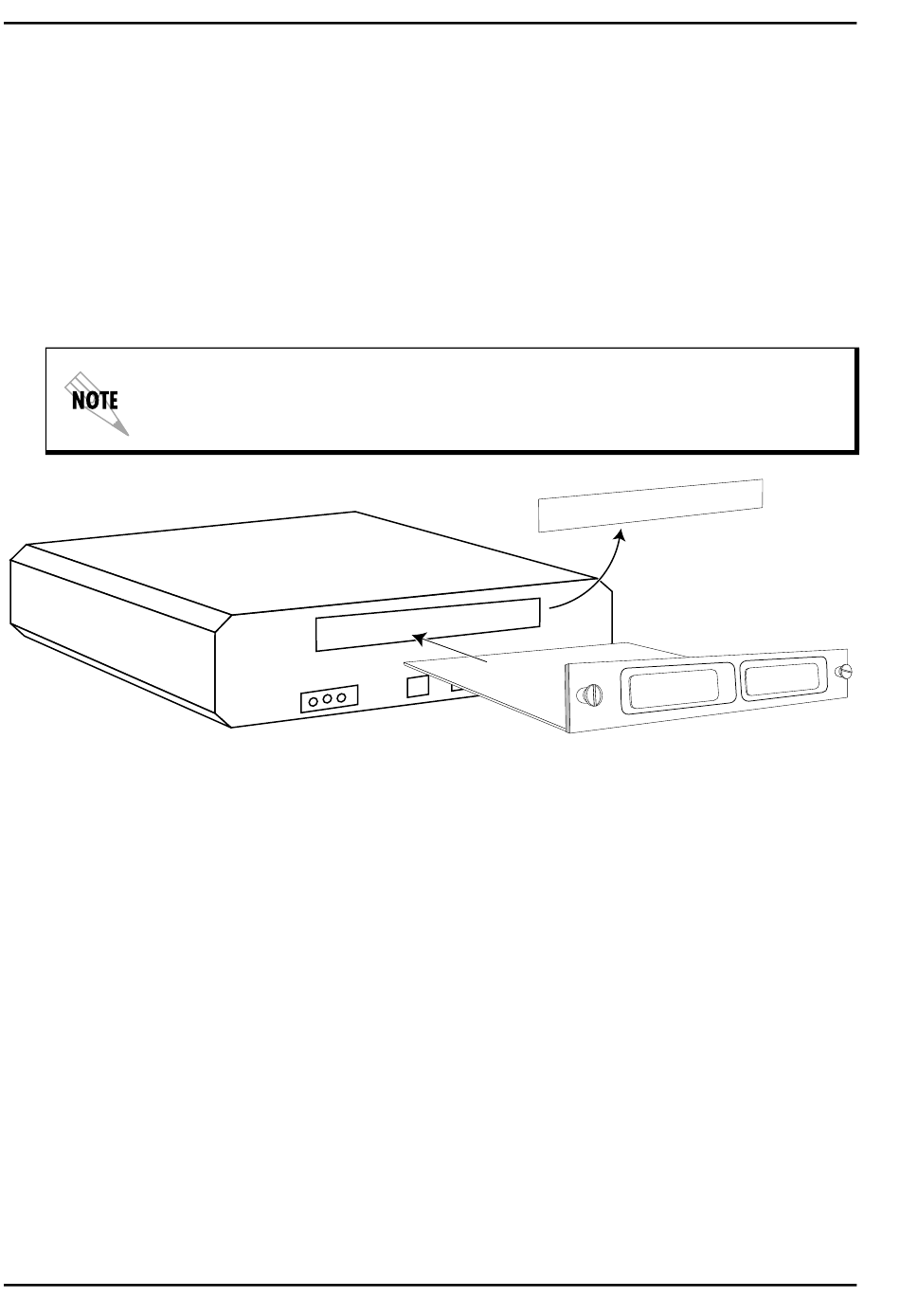

Figure 2-1. Installing Option Module

Cover Plate
Option Module
61200065L1-1
