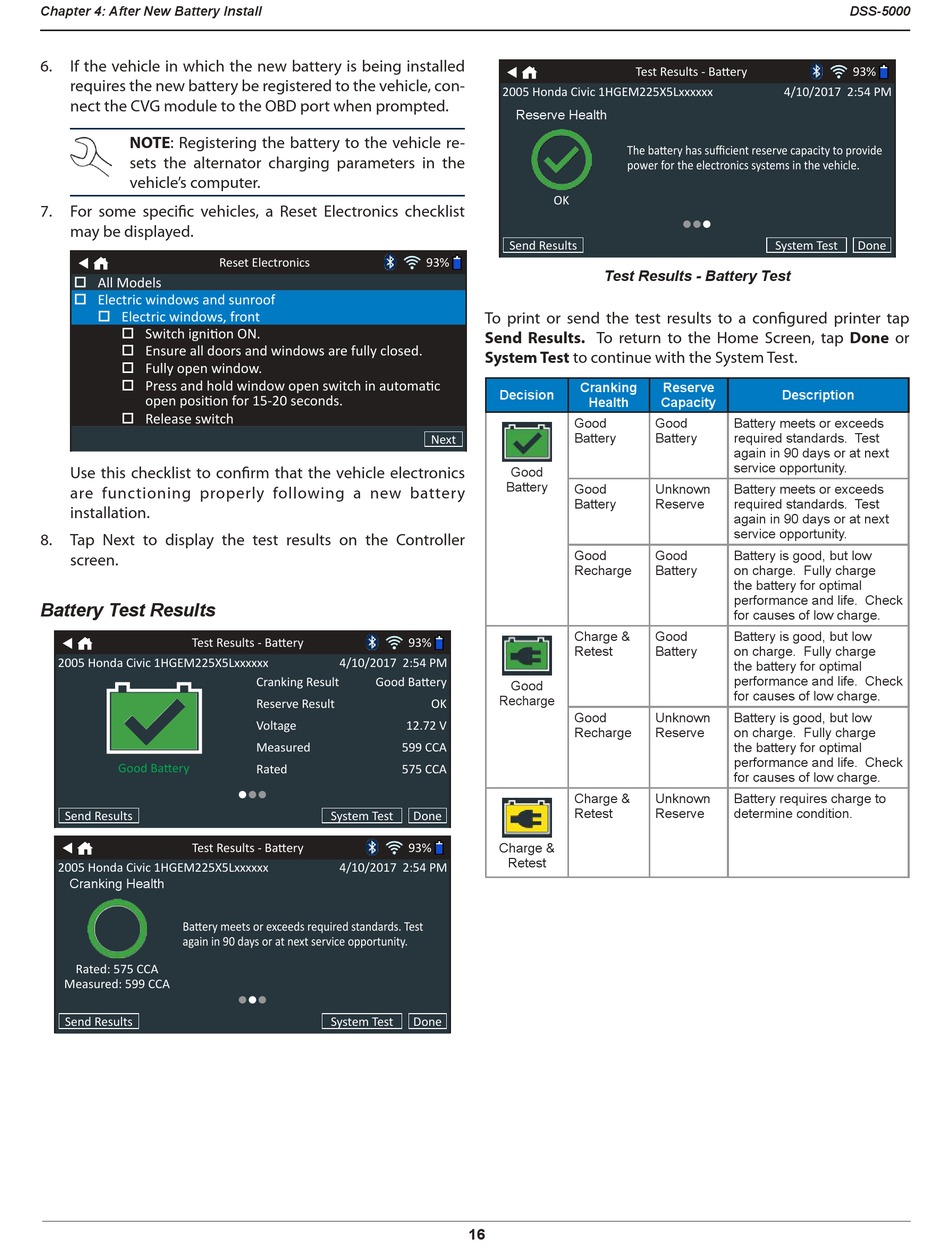

Chapter 4: After New Battery Install
6. If the vehicle in which the new battery is being installed
requires the new battery be registered to the vehicle, con-
nect the CVG module to the OBD port when prompted.
NOTE: Registering the battery to the vehicle re-
sets the alternator charging parameters in the
vehicle's computer.
7. For some specific vehicles, a Reset Electronics checklist
may be displayed.
Reset Electronics

 All Models
 Electric windows and sunroof
 Electric windows, front
 Switch ignition ON.
 Ensure all doors and windows are fully closed.
 Fully open window.
 Press and hold window open switch in automatic
open position for 15-20 seconds.
 Release switch
Use this checklist to confirm that the vehicle electronics
are functioning properly following a new battery
installation.
8. Tap Next to display the test results on the Controller
screen.

Battery Test Results

Test Results - Battery

2005 Honda Civic 1HGEM225X5Lxxxxxx
Good Battery
Send Results
Test Results - Battery

2005 Honda Civic 1HGEM225X5Lxxxxxx
Cranking Health
Battery meets or exceeds required standards. Test
again in 90 days or at next service opportunity.
Rated: 575 CCA
Measured: 599 CCA
Send Results
93%
4/10/2017 2:54 PM
Cranking Result Good Battery
Reserve Result
Voltage 12.72 V
Measured 599 CCA
Rated 575 CCA

System Test Done
93%
4/10/2017 2:54 PM

System Test Done

2005 Honda Civic 1HGEM225X5Lxxxxxx
Reserve Health
OK
Send Results
93%
Test Results - Battery Test
To print or send the test results to a configured printer tap
Send Results. To return to the Home Screen, tap Done or
System Test to continue with the System Test.
Cranking
Decision
Health
Good
Battery
Next
Good
Battery
Good
Battery
Good
Recharge
Charge &
Retest
Good
Recharge
OK
Good
Recharge
Charge &
Retest
Charge &
Retest
16
Test Results - Battery
4/10/2017 2:54 PM
The battery has sufficient reserve capacity to provide
power for the electronics systems in the vehicle.

System Test
Reserve
Description
Capacity
Good Battery meets or exceeds
Battery required standards. Test
again in 90 days or at next
service opportunity.
Unknown Battery meets or exceeds
Reserve required standards. Test
again in 90 days or at next
service opportunity.
Good Battery is good, but low
Battery on charge. Fully charge
the battery for optimal
performance and life. Check
for causes of low charge.
Good Battery is good, but low
Battery on charge. Fully charge
the battery for optimal
performance and life. Check
for causes of low charge.
Unknown Battery is good, but low
Reserve on charge. Fully charge
the battery for optimal
performance and life. Check
for causes of low charge.
Unknown Battery requires charge to
Reserve determine condition.
DSS-5000
93%
Done
