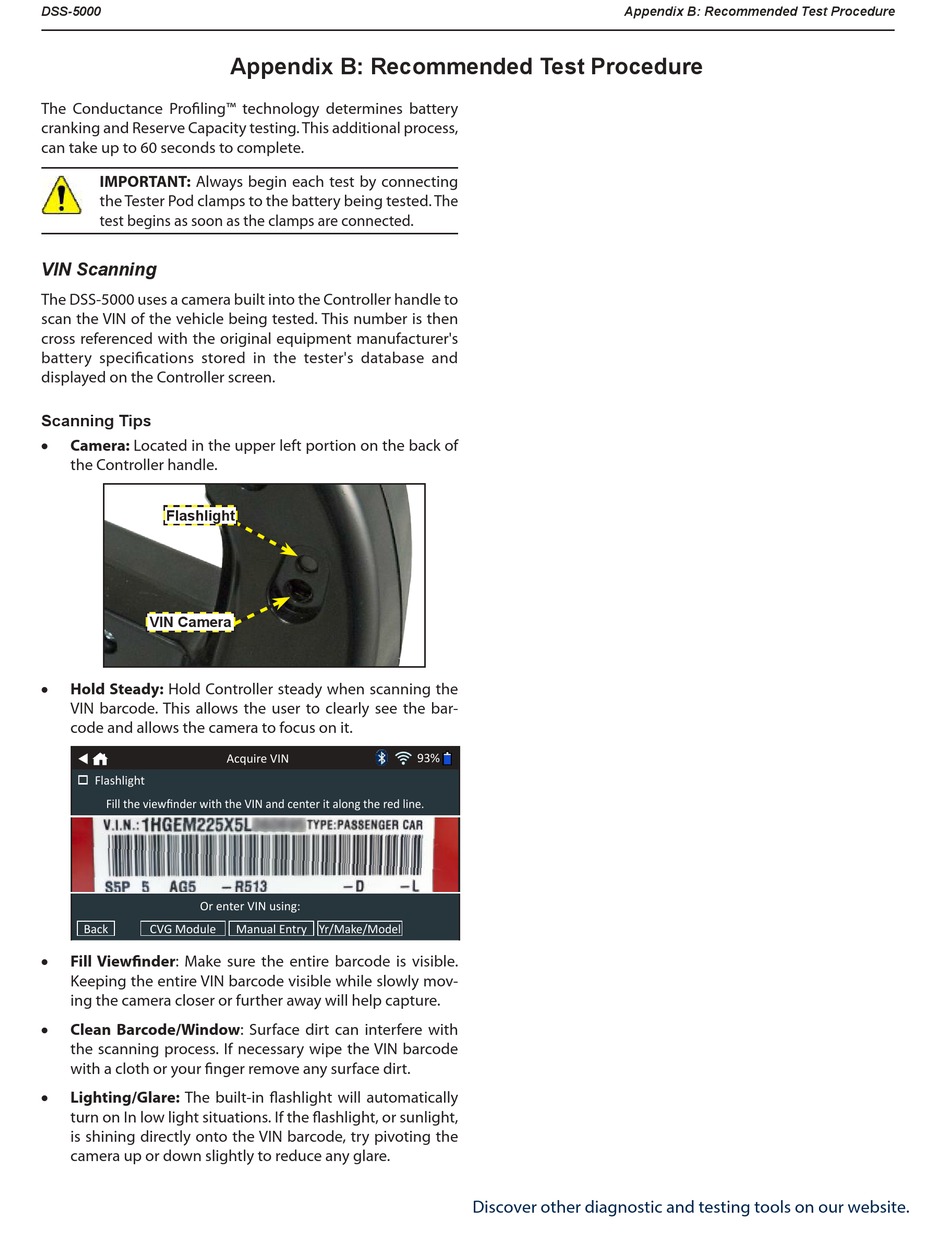

DSS-5000

The Conductance Profiling™ technology determines battery

cranking and Reserve Capacity testing. This additional process,

can take up to 60 seconds to complete.

IMPORTANT: Always begin each test by connecting

the Tester Pod clamps to the battery being tested. The

test begins as soon as the clamps are connected.

VIN Scanning

The DSS-5000 uses a camera built into the Controller handle to

scan the VIN of the vehicle being tested. This number is then

cross referenced with the original equipment manufacturer's

battery specifications stored in the tester's database and

displayed on the Controller screen.

Scanning Tips

•

Camera: Located in the upper left portion on the back of

the Controller handle.

Flashlight

VIN Camera

•

Hold Steady: Hold Controller steady when scanning the

VIN barcode. This allows the user to clearly see the bar-

code and allows the camera to focus on it.



 Flashlight

Fill the viewfinder with the VIN and center it along the red line.

Or enter VIN using:

Back

CVG Module

•

Fill Viewfinder: Make sure the entire barcode is visible.

Keeping the entire VIN barcode visible while slowly mov-

ing the camera closer or further away will help capture.

•

Clean Barcode/Window: Surface dirt can interfere with

the scanning process. If necessary wipe the VIN barcode

with a cloth or your finger remove any surface dirt.

•

Lighting/Glare: The built-in flashlight will automatically

turn on In low light situations. If the flashlight, or sunlight,

is shining directly onto the VIN barcode, try pivoting the

camera up or down slightly to reduce any glare.
